Air-Handling Unit MANDÍK in hygienic design

Hygienic AHUs extend the standard range for use in clean and hygienic environments. They are specially designed for healthcare, laboratories, and industries requiring high cleanliness.

Air-Handling Unit MANDÍK in hygienic design1

Product Description

Key Features & Benefits

Certified Hygienic Design
Independently certified by the Hygiene-Institut des Ruhrgebiets (Germany) to meet VDI 6022, DIN 1946-4, and other stringent healthcare standards.
Bacteria & Fungus Resistant
Smooth, crevice-free interior with antimicrobial powder coating and materials tested per ISO 846 to prevent microbial growth.
Easy Cleaning & Disinfection
All internal areas are accessible and designed for trouble-free cleaning (removable gaskets, drain pans, no adhesive seals).
Modular & Customizable
Based on the standard MANDÍK modular platform, allowing custom sizing (dynamic dimensioning) and configuration for specific project needs.
High Performance Maintained
Retains Eurovent certification, high energy efficiency (A+ possible), and the robust T2 TB2 casing class of standard units.

Technical Specifications

Primary Certification

Hygiene-Institut des Ruhrgebiets (Germany)

Key Standards

VDI 6022 Blatt 1, SWKI VA104-01, DIN 1946-4 (for hospitals)

Casing Class

T2 TB2 (Certified per EN 1886)

Interior Finish

Smooth Stainless Steel or Antimicrobial Powder Coat (RAL colors)

Excluded Functions

Integrated Cooling, Gas/Electric Heating (require separate external modules)

Installation & Design

Guided Design Software

AHUMAN software includes specific checks and warnings to ensure a valid, compliant hygienic design from the start.

Service-Friendly

All components (filters, heat exchangers, drain pans) are designed for easy removal, cleaning, and re-installation without compromising hygiene.

Use Cases

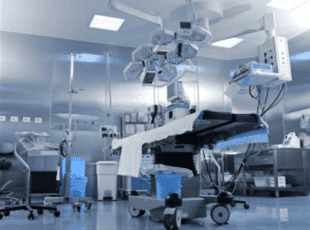

KJM-HYG_operacni-sal
