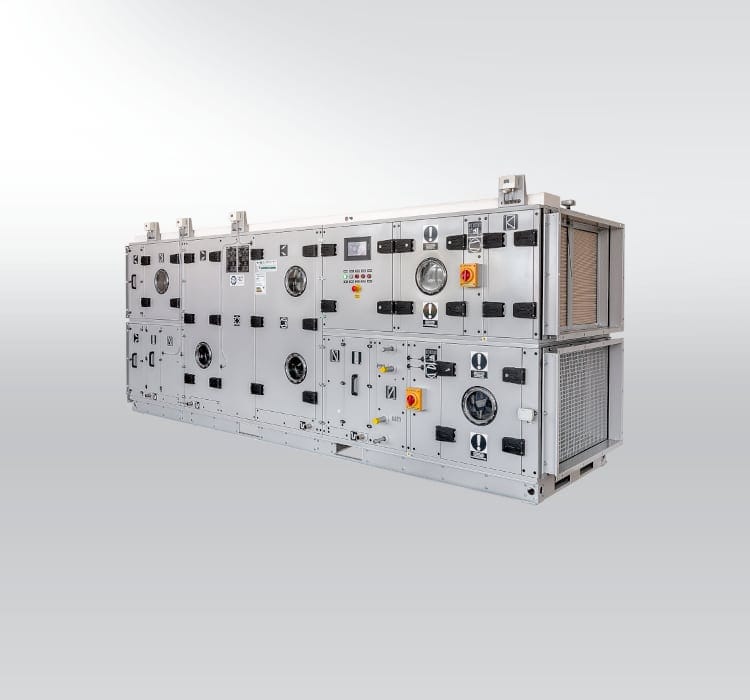

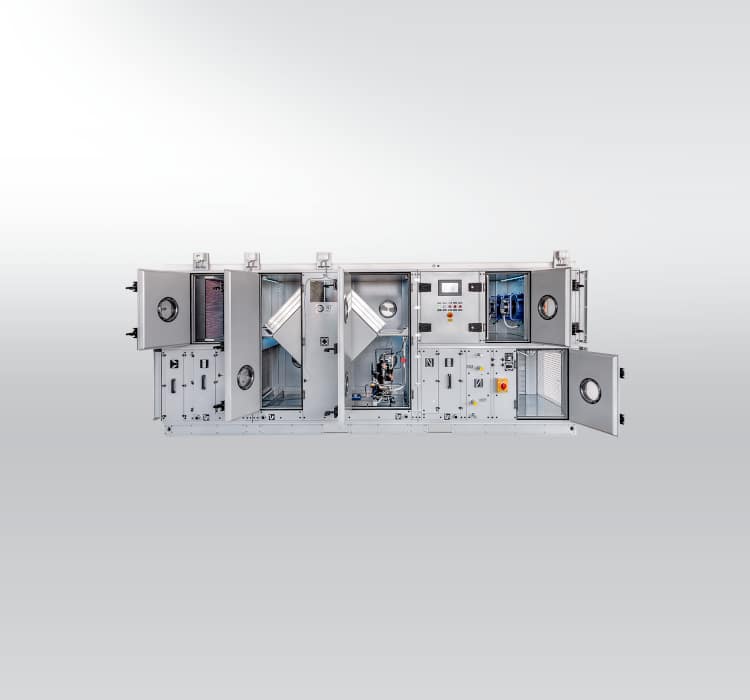

Air-Handling Unit MANDÍK with heat pump
Air-Handling Unit MANDÍK with heat pump
Modular Air-Handling Units provide central air distribution and conditioning for industrial and commercial use. They include an energy recovery exchanger and an integrated cooling circuit with optional reversible operation. Offering airflow from 500 to 40,000 m³/h, these frameless, certified units combine high efficiency with low operating costs and customizable designs.
Product Description
Key Features & Benefits

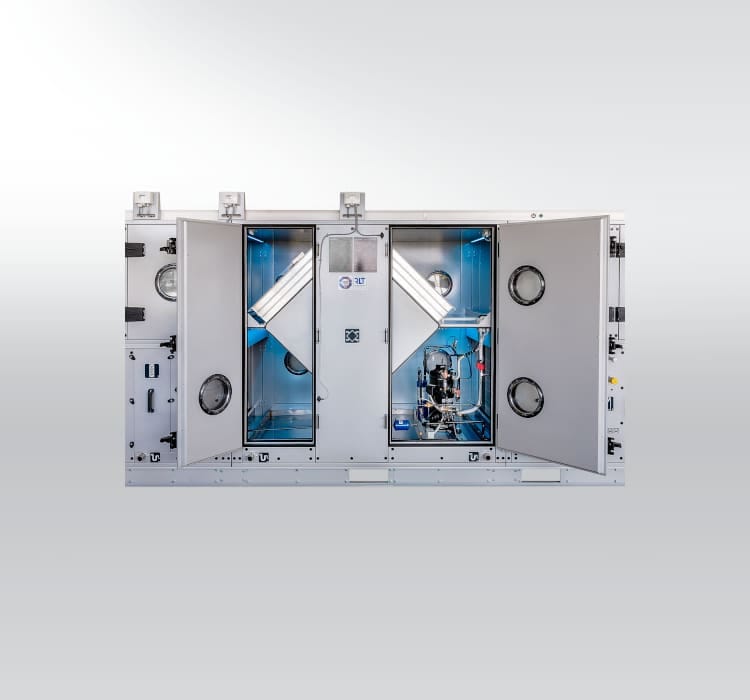

Active Heat Pump Recovery
Built-in circuit uses exhaust air to heat or cool supply air ("active recuperation") for maximum efficiency.
Ultra-High Efficiency (A+)
Combines passive heat exchange with active heat pumping for top energy class certification.
Flexible System Design
Configure with or without passive heat exchanger or add bivalent gas heating (GHM) for extreme cold backup.
Fully Modular
89 sizes + dynamic 1mm step sizing for perfect fit in any project.
Year-Round Climate Control
Reversible operation provides after-cooling in summer and after-heating in winter from one system.
Technical Specifications
Airflow
500 - 40,000 m³/h
Heat Source
Heat Pump + Optional Gas/Electric/Water
Casing
T1/T2 TB1 Certified (EN 1886)
Rating
Up to EUROVENT A+

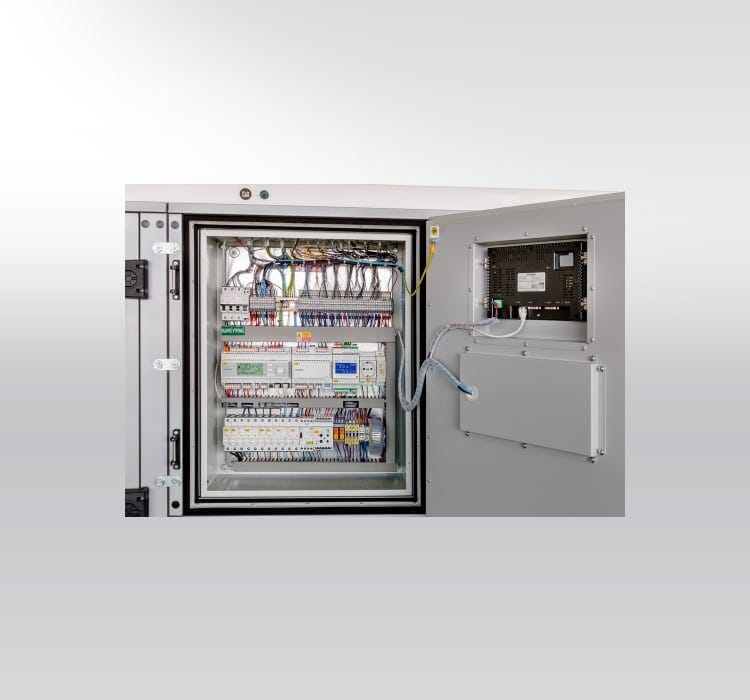

Control
Siemens Climatix + Mandik Cloud
Installation & Configuration
Custom Design by Experts
MANDÍK engineers design each unit based on your project's specific heating/cooling needs.
Flexible Installation
Vertical, horizontal, or ceiling layouts for indoor/outdoor applications.
Smart Cloud Management
Remote monitoring and control via Mandik Cloud for optimal operation.
Use Cases
- Large Commercial Complexes
- Industrial Facilities
- Luxury Hospitality
Product brochure
User Manual
