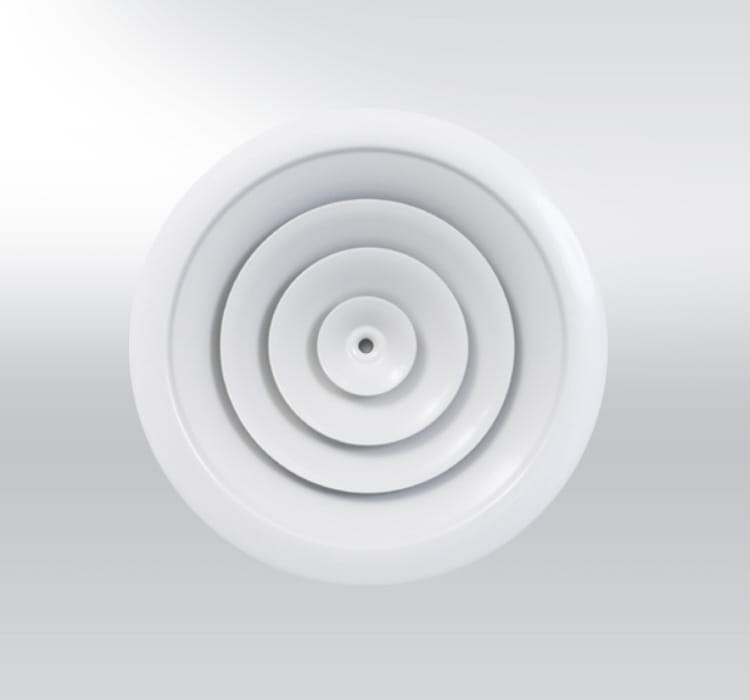

ALKM Round Anemostat Diffuser

A circular terminal HVAC air distribution element featuring a front face of fixed profiled blades. The round design guarantees even air dispersion in all directions for optimal mixing in commercial spaces.

Product Description

Key Features & Benefits

Circular Design
Ensures perfectly even air distribution in all directions from a single point.
Radial Airflow
Supplied air is separated and spread equally in a 360° pattern for uniform room coverage.
Optimal Air Attachment
Maintains effective outlet speed (>2 m/s) to ensure air stream stays attached to the ceiling.
Robust Fixed Blades
Rigid profiled vanes provide a maintenance-free and durable airflow pattern.
Versatile Flow Direction
Suitable for both air supply (P) and air exhaust (O) applications.
High-Capacity Performance
Handles large airflow volumes from 110 to 1,800 m³/h for demanding spaces.

Technical Specifications

Diameter Sizes

Available in diameters: 250, 300, 400, 500, 600 mm.

Airflow Range

Broad capacity: 110 to 1,800 m³/h.

Key Requirement

Effective outlet speed must be > 2 m/s to prevent air stream drop.

Primary Application

Optimized for cooling and ventilation systems.

Connection Options

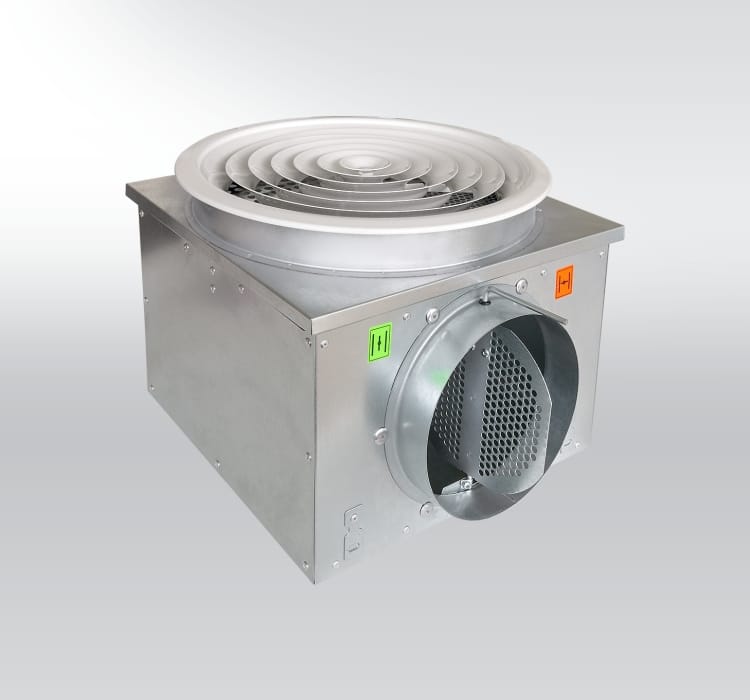

Horizontal or vertical connection to Unibox, with or without a regulating flap.

Operating Temp

For air temperatures between -20°C to +70°C.

Installation & Control

Mounting

Designed for flush ceiling installation or suspended below ceiling.

Easy Service Access

Front face plate attaches/detaches using a central screw for easy maintenance.

Duct Connection

Choose horizontal (H) or vertical (V) connection to suit ductwork layout.

Flow Regulation

Optional regulating flap (R) available for precise air volume control.

Installation Height

Recommended for room heights from 2.6 m to 4.0 m.
