Arcus Design Air Curtain
Product Description
Key Features & Benefits
Curved Architectural Design
Ergonomic curved shape for seamless integration with automatic doors.
Whisper-Quiet Operation
Acoustically isolated chamber for significant noise reduction.
German High-Performance Fans
ZIEHL-ABEGG radial fans for efficient, reliable airflow.

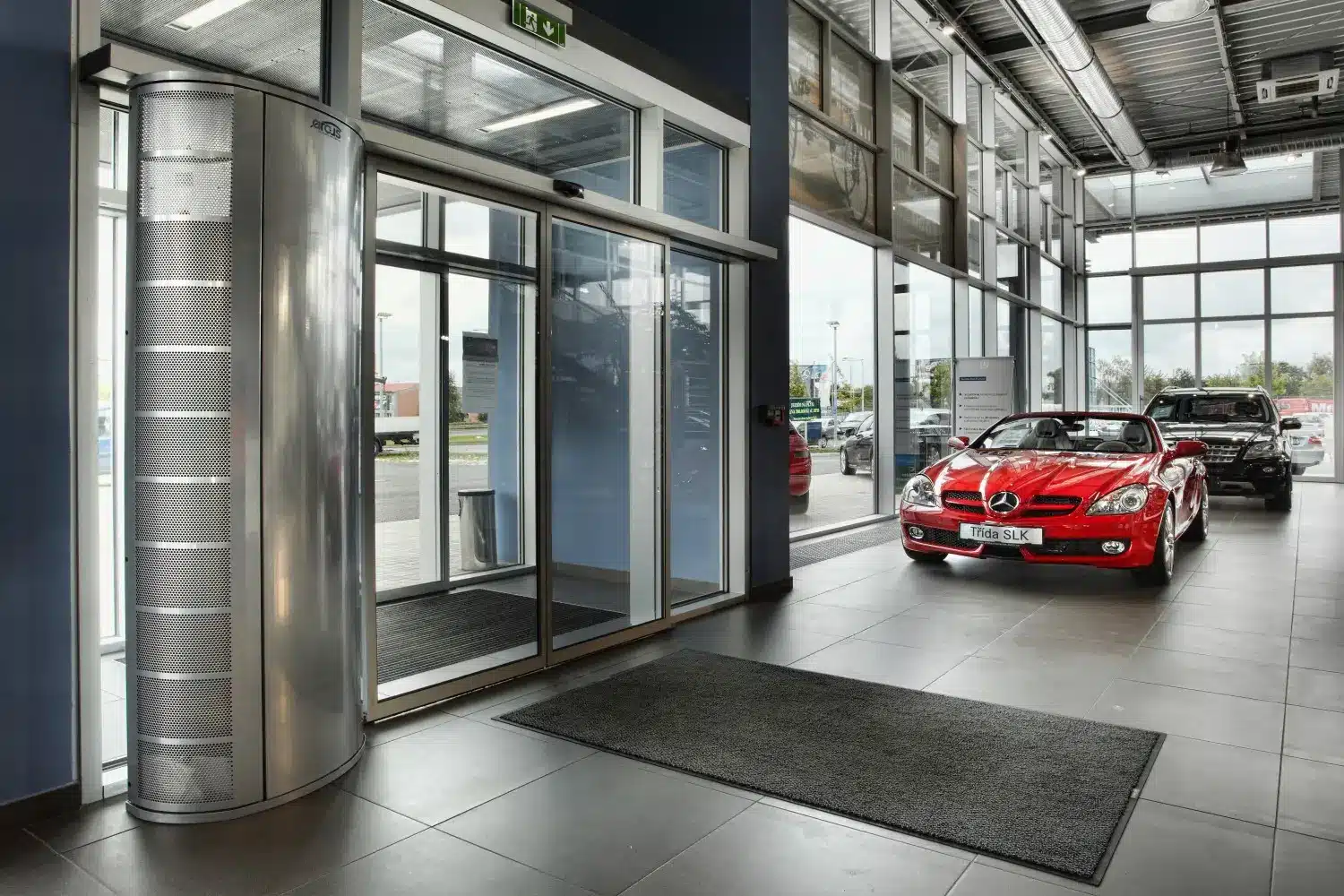

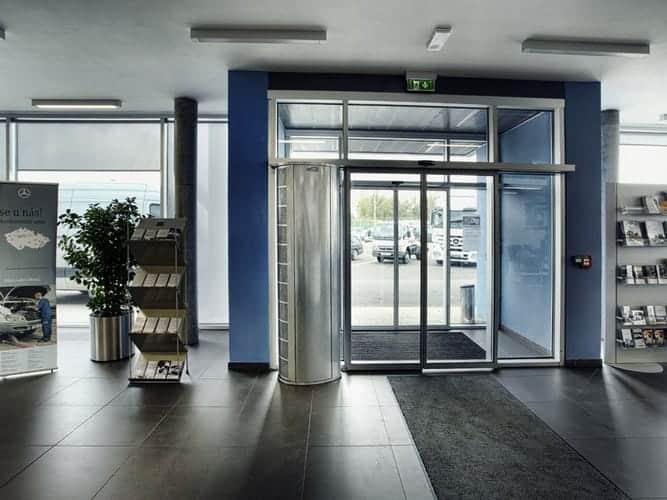

Optimized for Automatic Doors
Flat profile design complements door operation without obstruction.
Hidden Connections & Smart Control
Bottom-routed connections and advanced wall processor control.
Effective Climate Barrier
Prevents heat loss, drafts, and ingress of dust and pests.
Three Height Options
2.2m, 2.5m, and 2.8m units to suit various entrance sizes.
Technical Specifications
Door Coverage
Width up to 3.2m with one-sided installation.
Unit Dimensions
Heights: 2200/2500/2800 mm, Depth: 295 mm, Width: 670 mm.
Airflow Capacity
Range from 3,300 to 6,500 m³/h.
Heating Capacity
Hot Water: Up to 55.1 kW
Electric: Up to 27 kW.
Electrical Supply
230V for fan operation.
Protection Class
IP20 for indoor use.
Installation & Control
Standard Unit Package
Arcus air curtain unit.

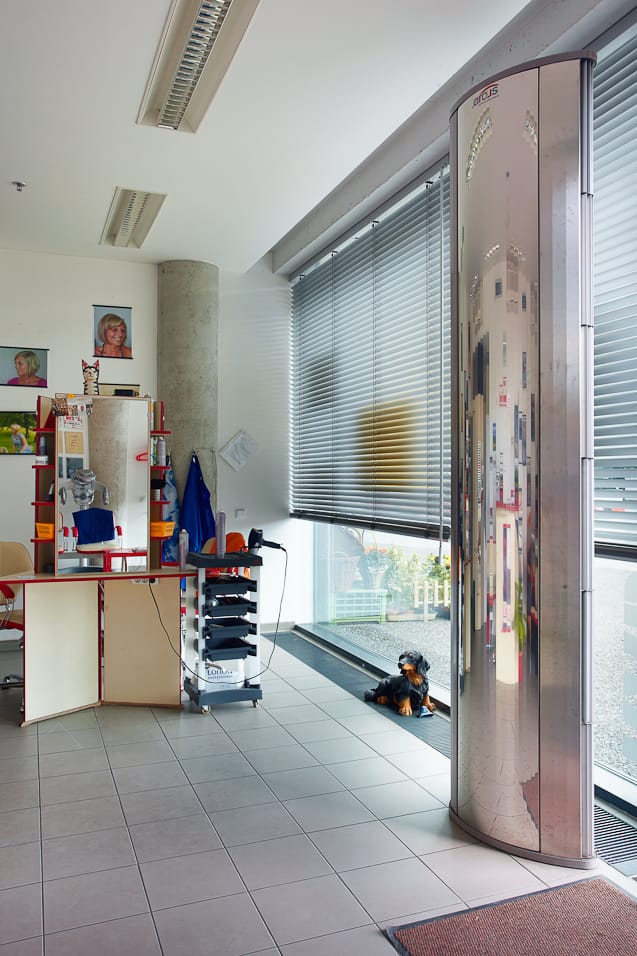

Vertical Floor Mounting
For left or right-side installation with hidden bottom connections.
Advanced Control System
Wall processor with fan delay, heater control, and BMS compatibility.
Built-In System Ready
Includes valves (water models) and accessible filters as standard.
Use Cases

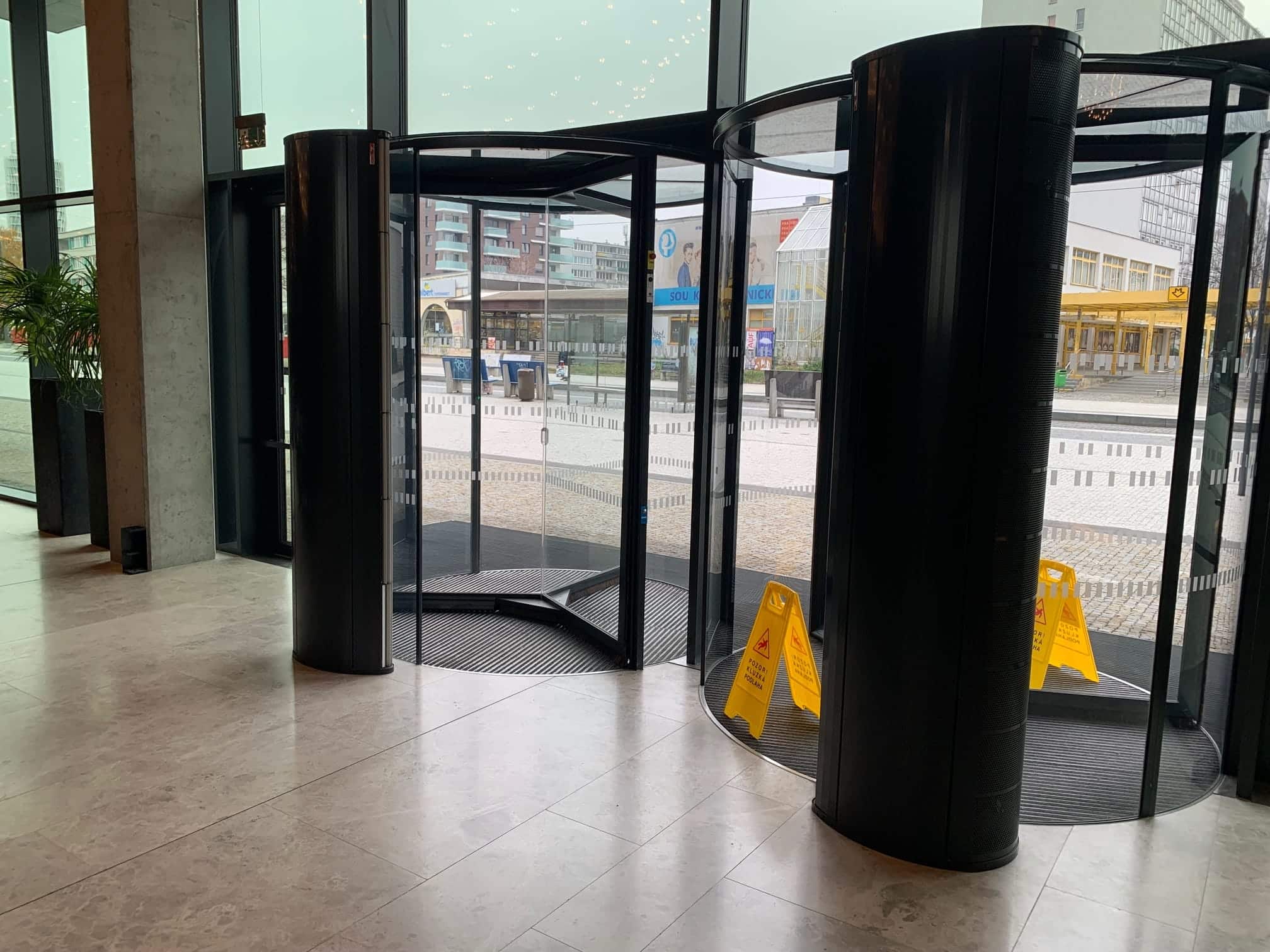

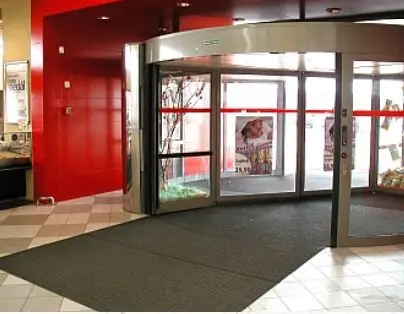

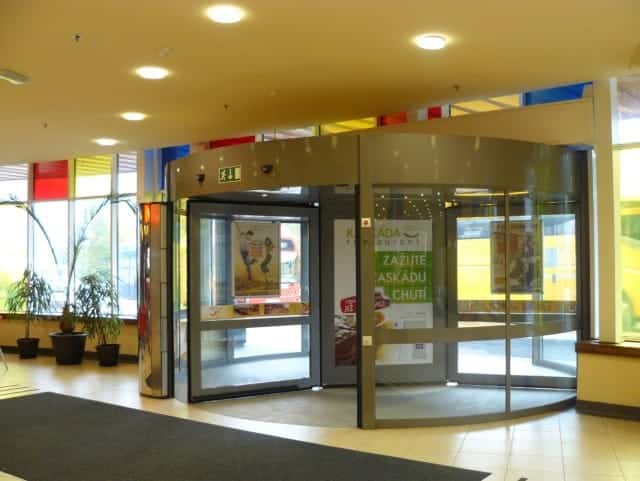

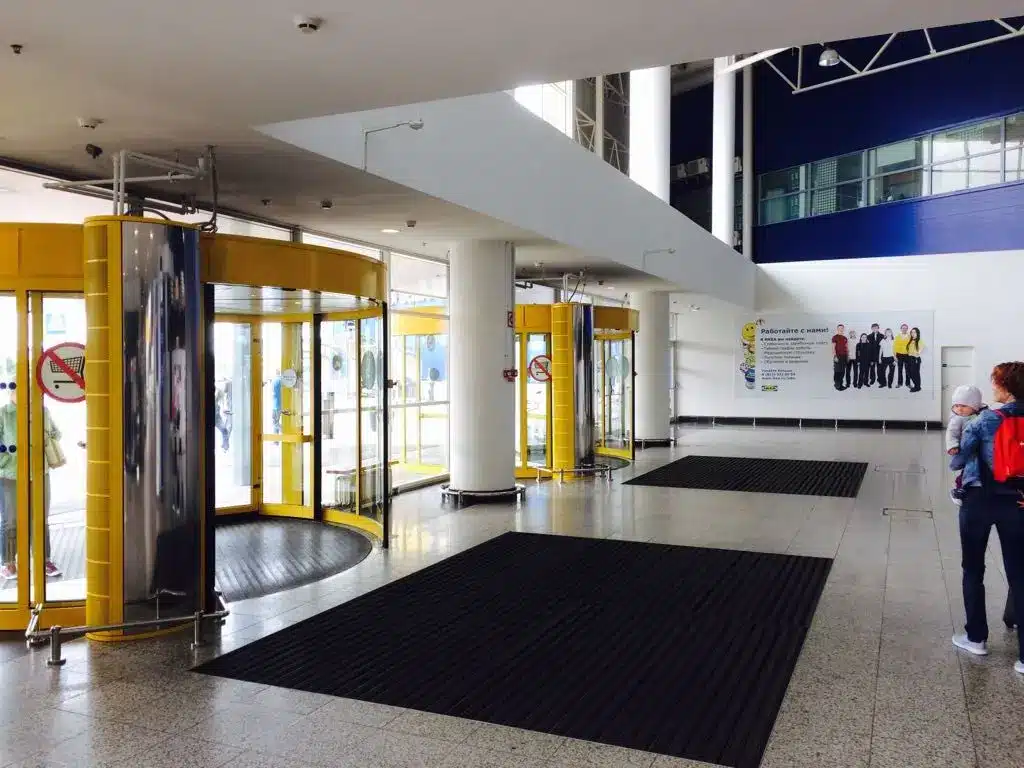

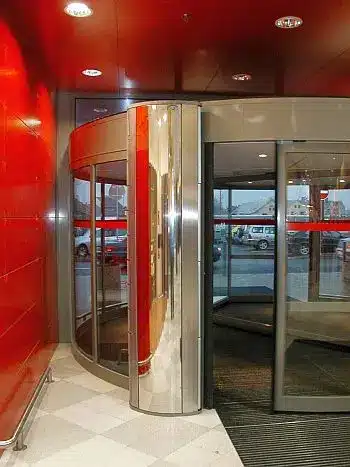

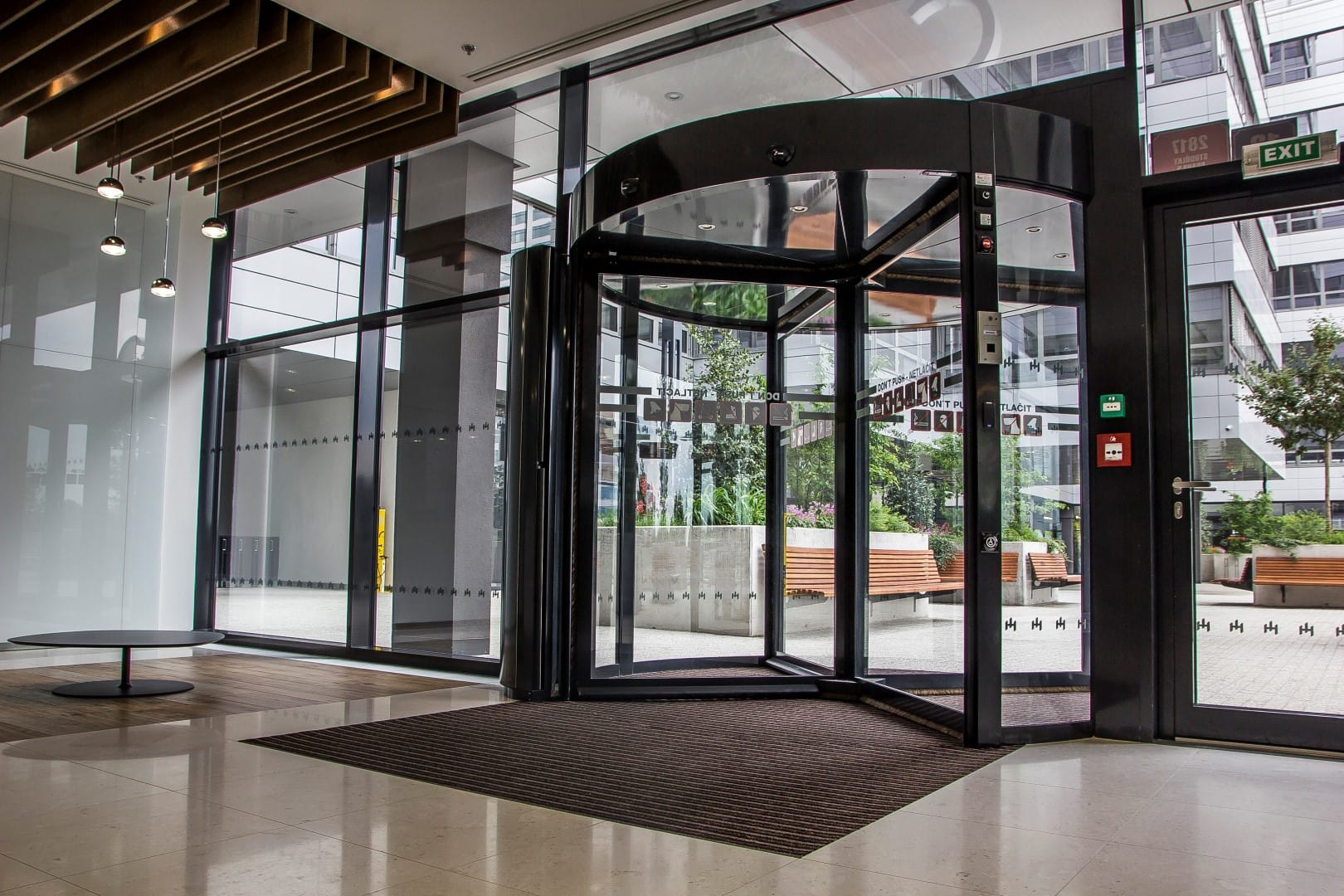

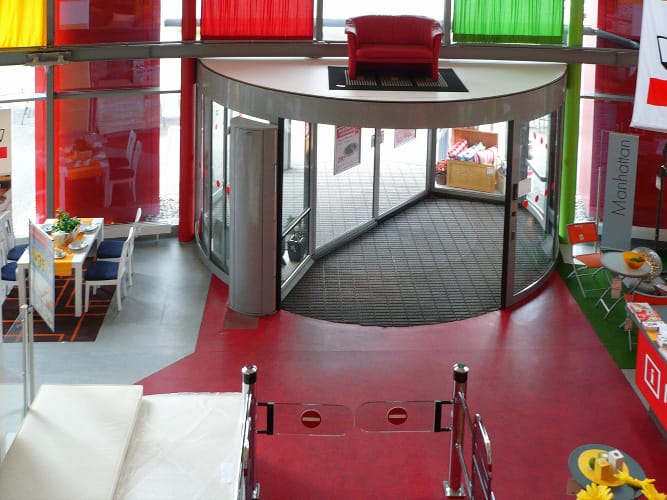

- Automatic & Revolving Doors
- Luxury Hotels & Offices
- Museums & Banks
- High-End Retail
- Corporate Headquarters
