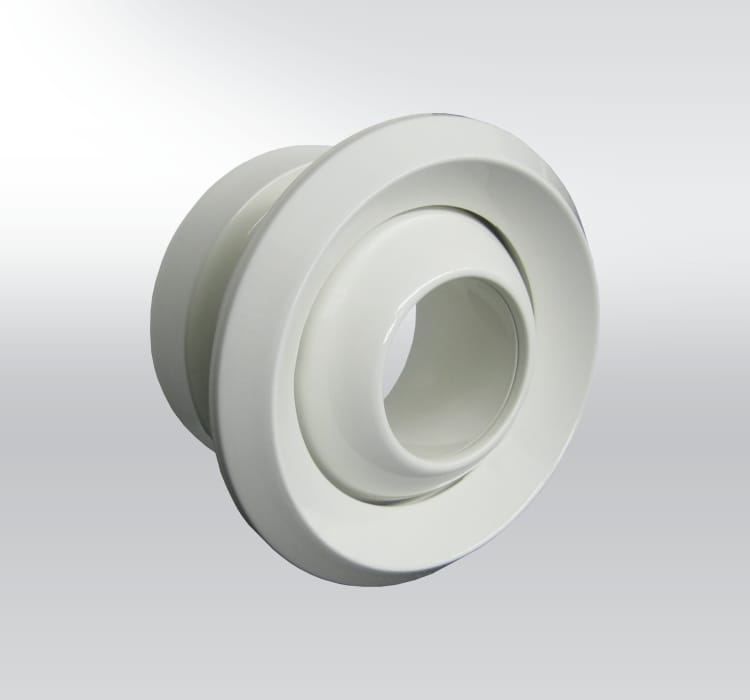

DDME Long-Reach Air Nozzle

A ventilation jet-diffuser nozzle designed for long-distance air distribution in large spaces. Its manually adjustable outlet allows for a 30° deflection in all directions to optimize air delivery for heating, ventilation, and cooling modes.

Product Description

Key Features & Benefits

High-Velocity Jet
Engineered for long-distance throw, projecting supply air at high velocity to reach distant occupied zones.
Omni-Directional Adjustment
Outlet nozzle can be manually adjusted by 30° in any direction (up/down, left/right) for precise air aiming.
Simple Manual Control
Easy on-site adjustment without need for actuators or tools, allowing fine-tuning based on seasonal needs.
For Vast Interior Spaces
Ideal for conditioning large-volume interiors where air must travel far from the discharge point.
Discreet Installation
Includes a rotatable cover ring that hides mounting screws for a clean, finished appearance.

Technical Specifications

Nozzle Diameters

Standard sizes: 125, 160, 200, 250, 315, 400 mm.

Airflow Range

Wide operational range from 60 to 2,000 m³/h.

Temperature Performance

Suitable for heating (ΔT ≤ +15K) and cooling (ΔT ≤ -15K) with moderate temperature differences.

Material & Finish

Constructed entirely from aluminium with a standard powder-coated finish (glossy RAL 9010).

Mounting Compatibility

Can be wall-mounted or installed into the end/side of round or square pipes/ducts.

Installation & Control

Mounting Options

Versatile installation: into walls, ceilings, or directly onto round/square ventilation ducts.

Cover Ring Design

Rotate the cover ring a quarter turn to access or conceal the mounting screws for a tidy look.

Nozzle Aiming

After installation, manually aim the outlet nozzle within its 30° range to the desired direction.

Application Setting

Adjust the nozzle angle according to the mode (heating/cooling) and room layout for optimal air distribution.
