Econ-C Air Curtains
Econ-C Air Curtains
Econ-C air curtain is entirely different than anything anyone has ever seen before in the high-tech world. The unmistakable design element runs from the ceiling, over the roof offering a smooth solution that does not hurt the interior aesthetics. Simply it was not imaginable even a decade ago.
Product Description
Key Features & Benefits

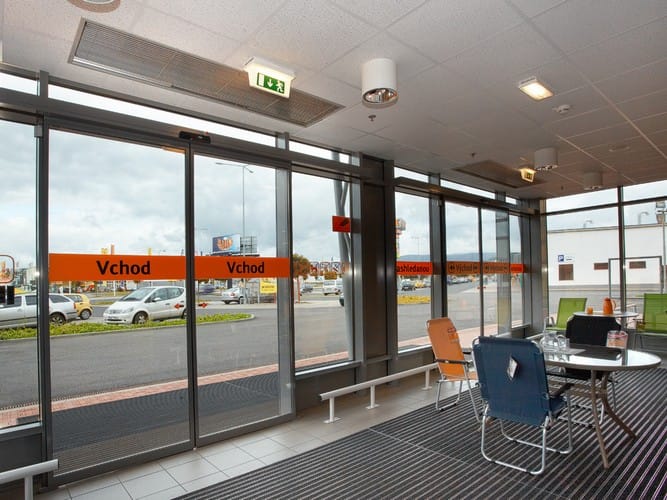

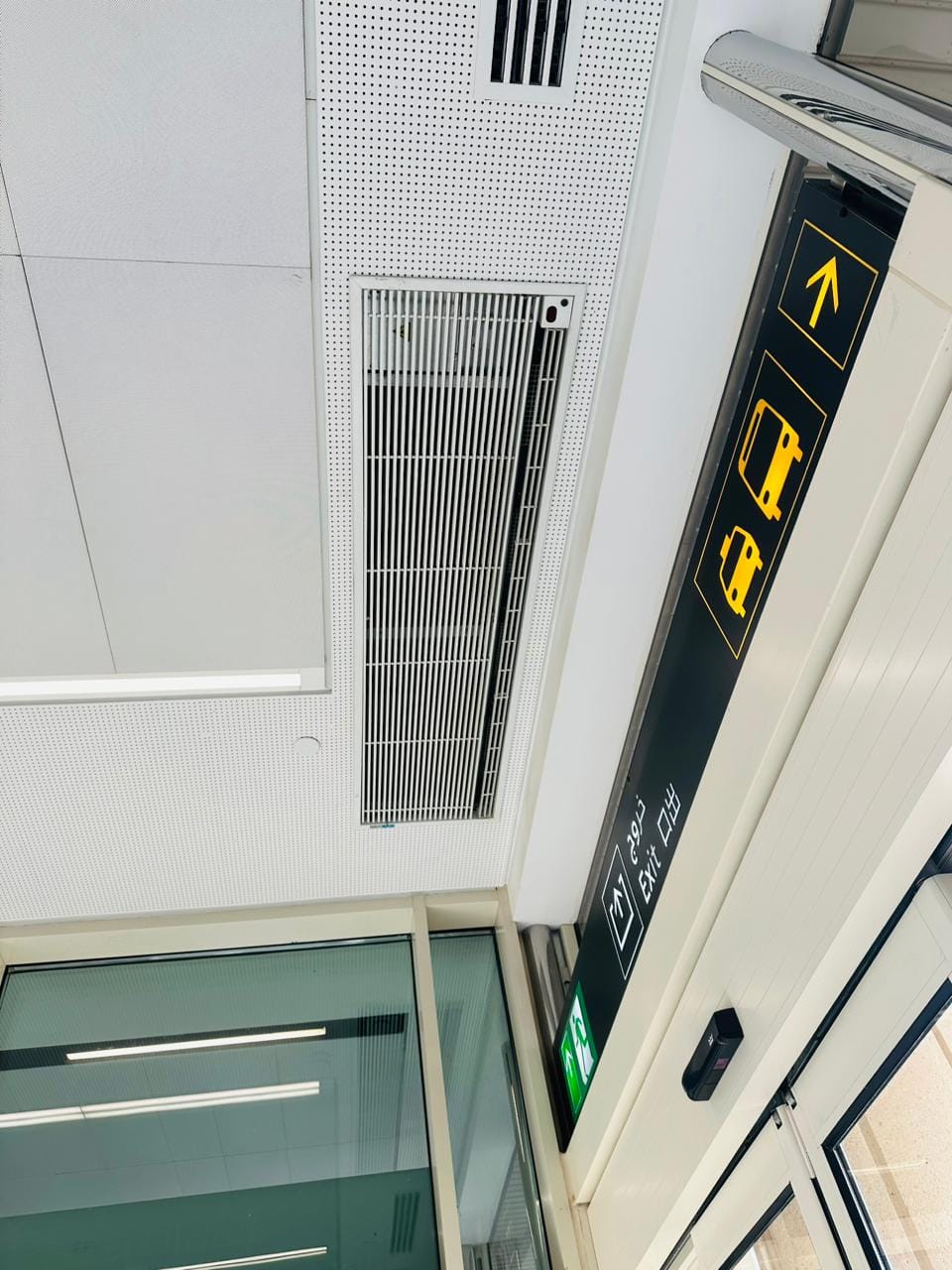

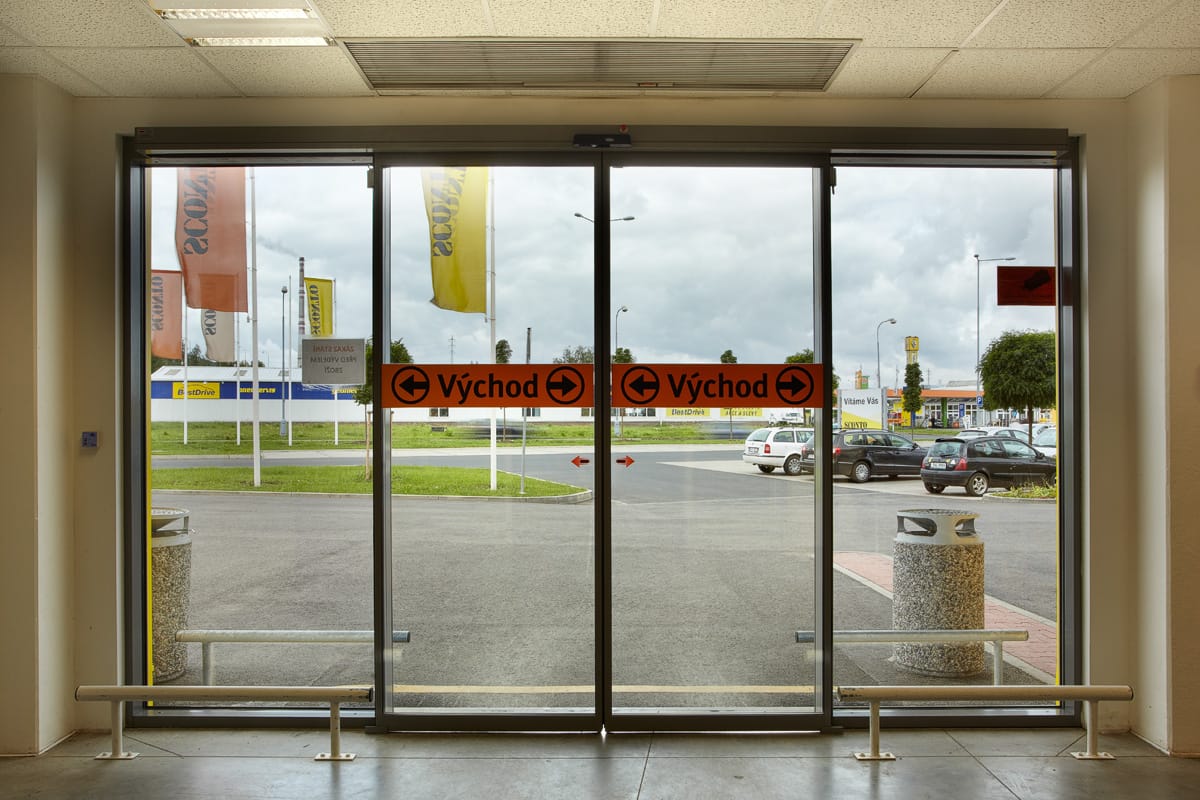

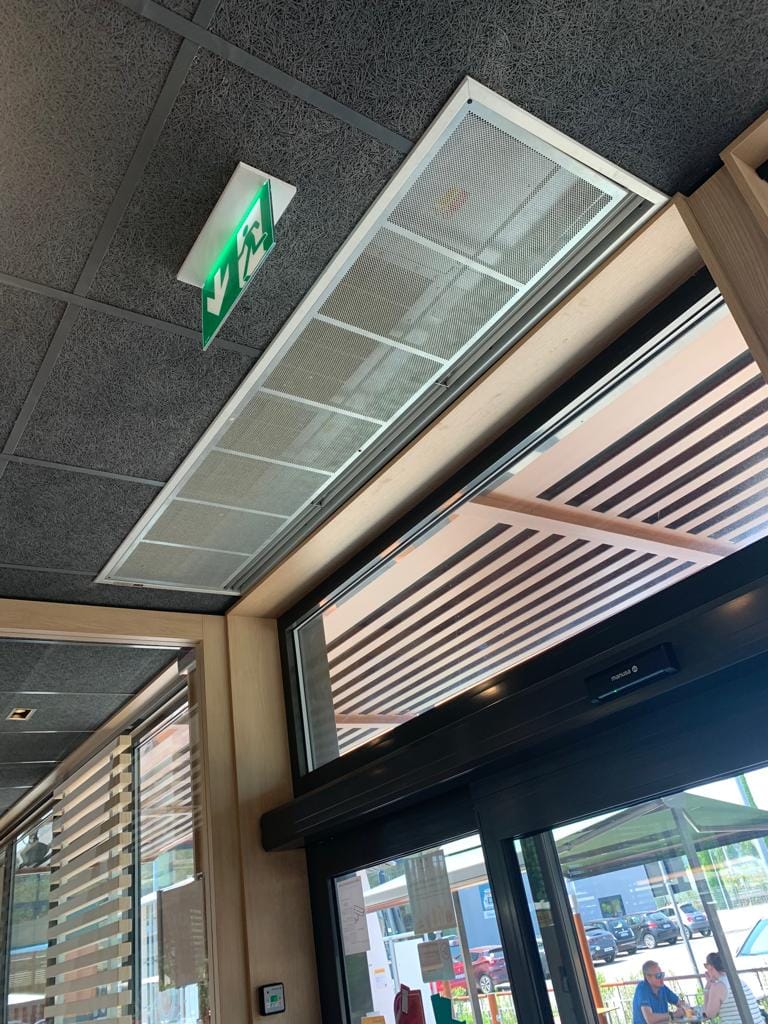

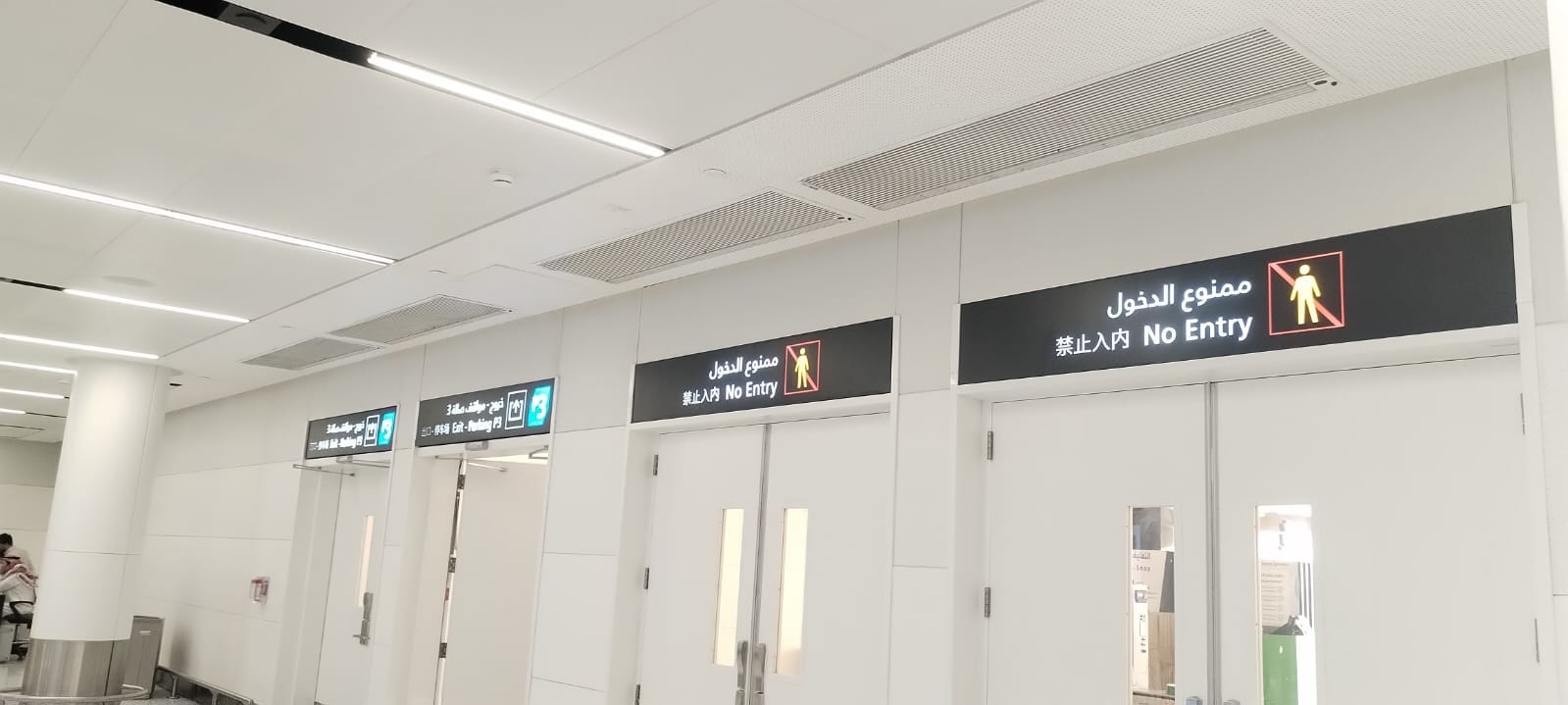

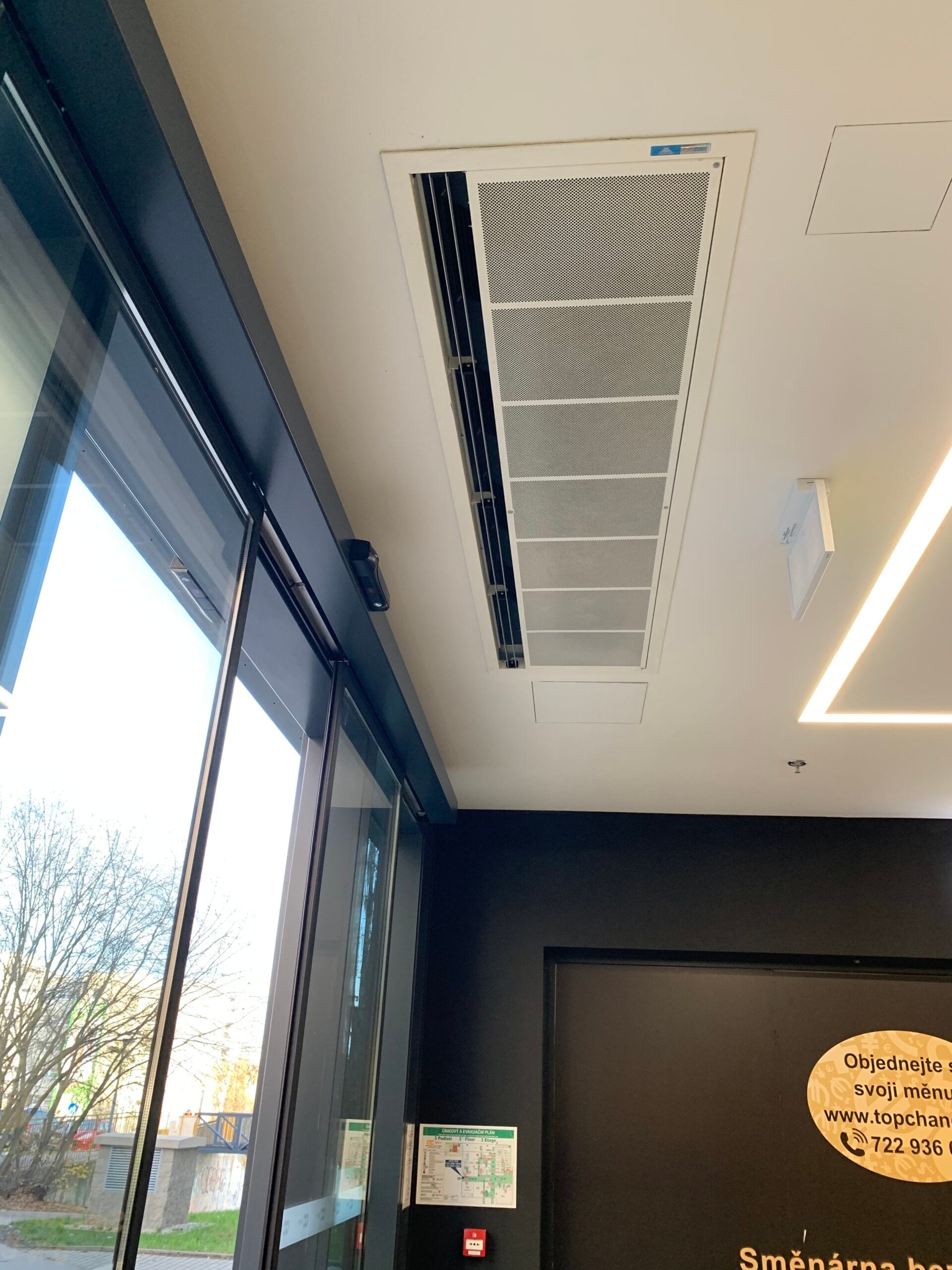

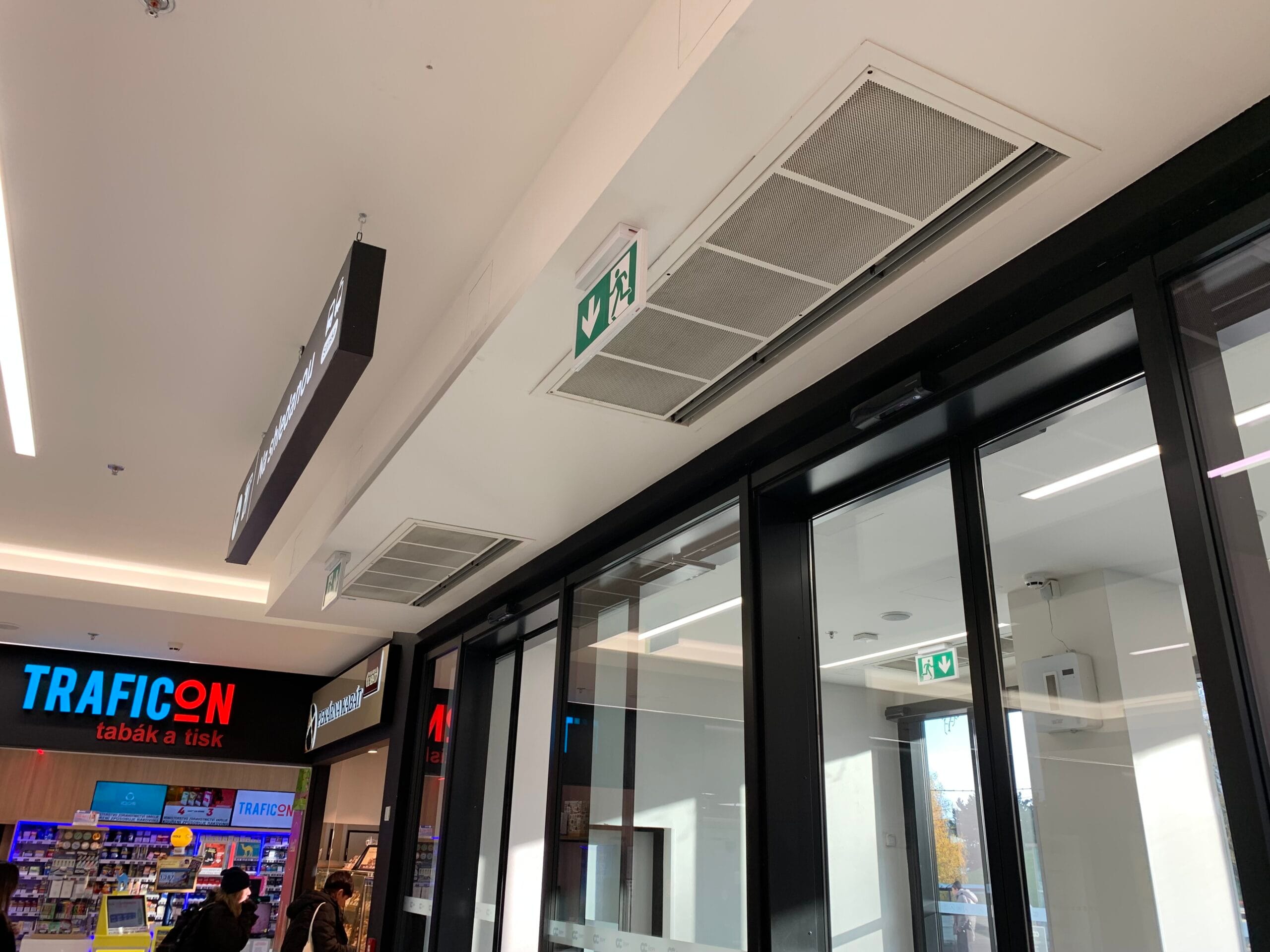

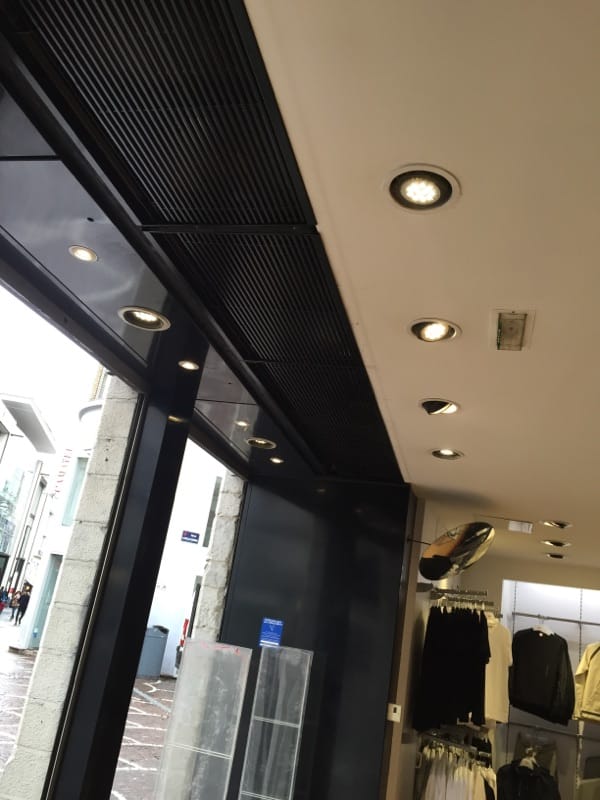

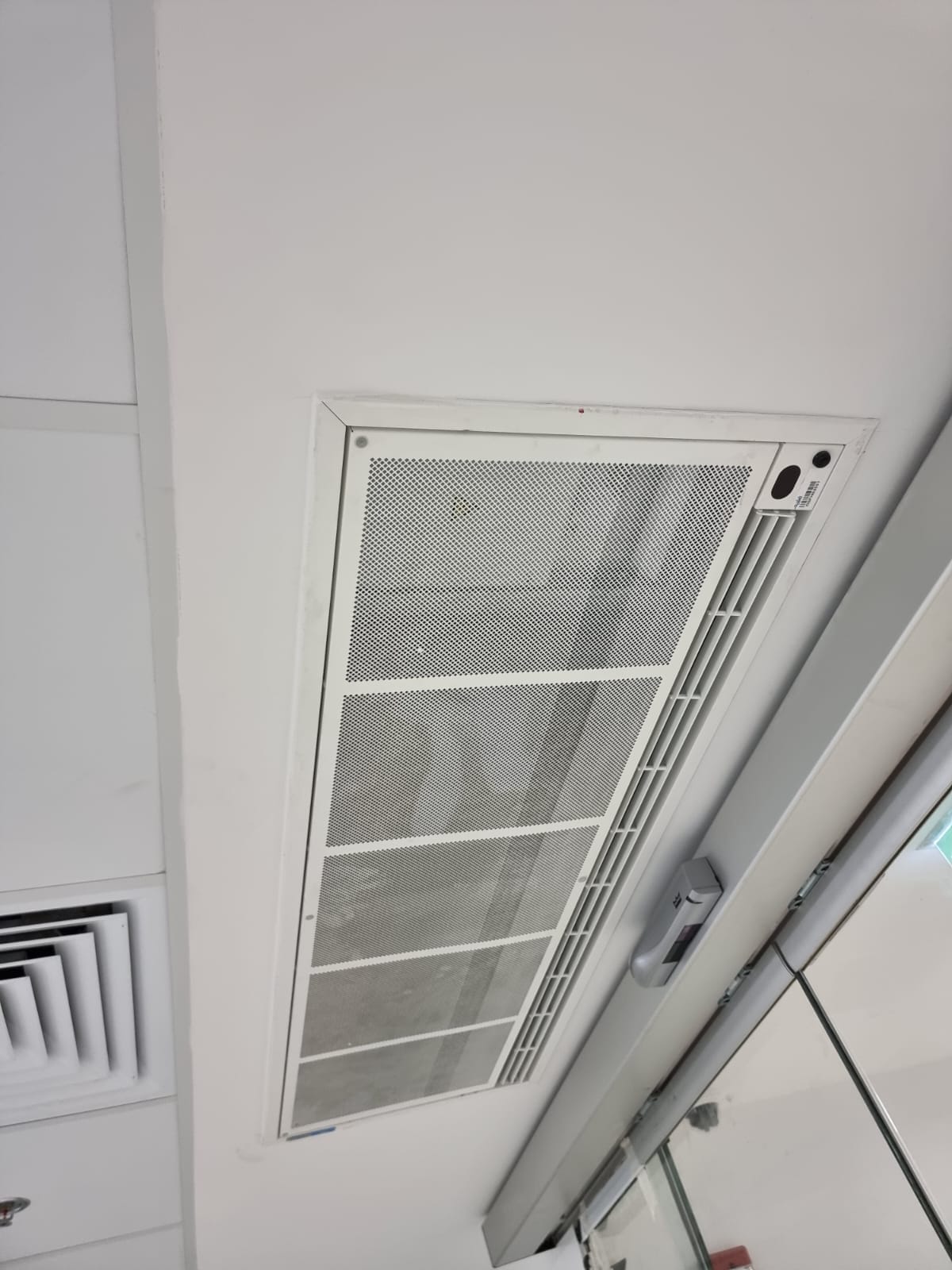

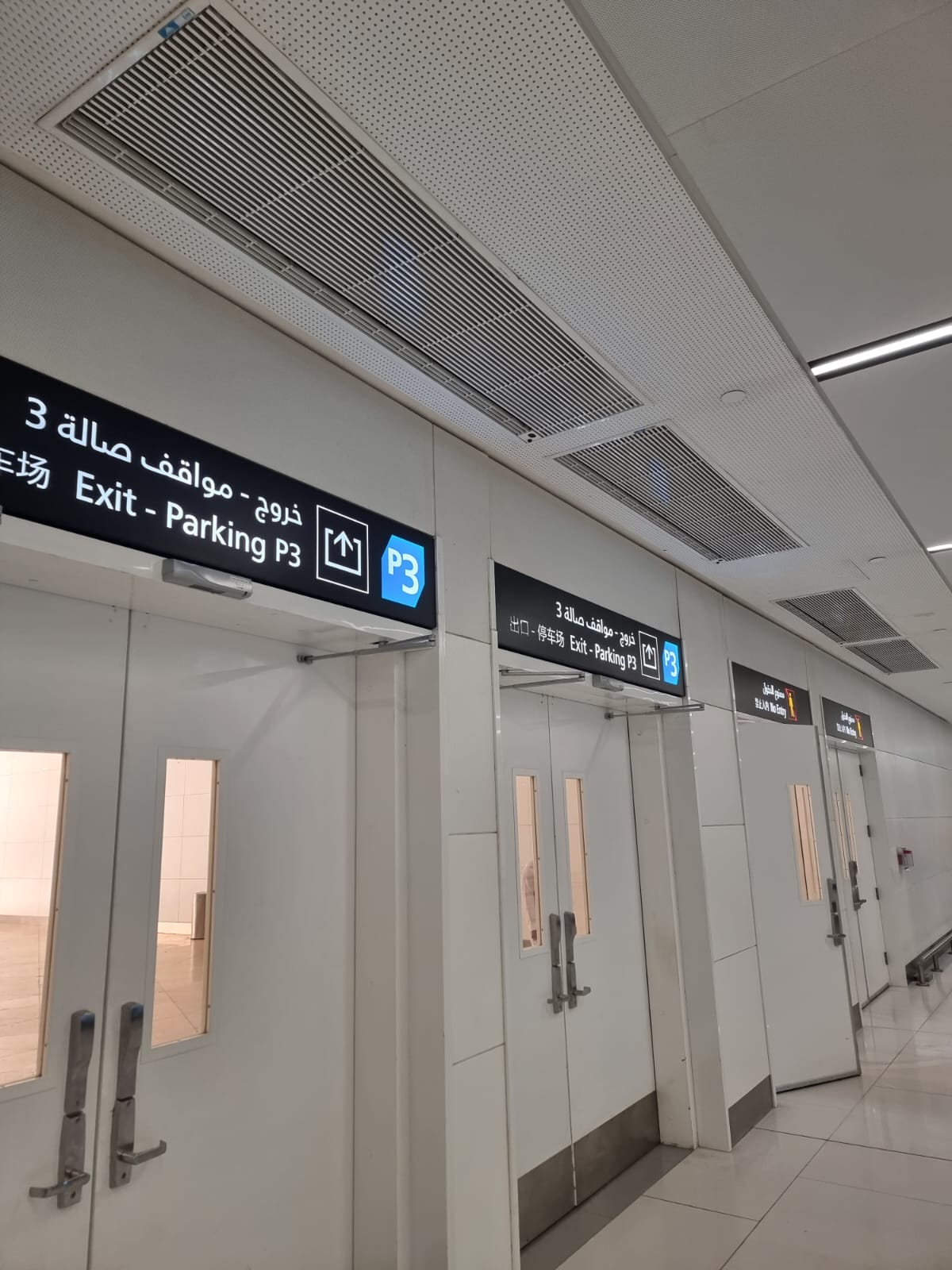

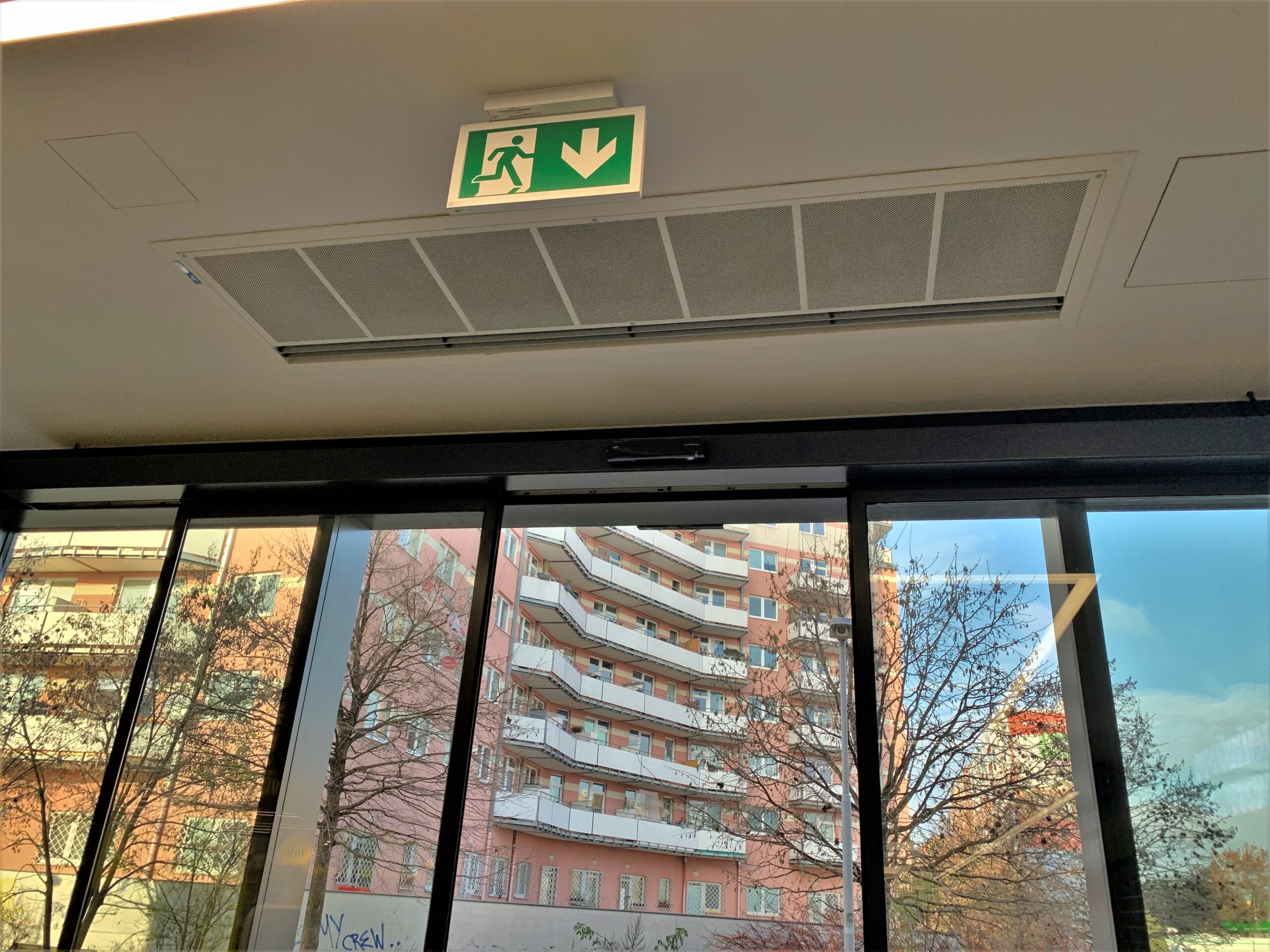

Hidden Installation
Designed for suspended ceilings, discrete and aesthetic
Energy Efficient
Forms a protective air barrier to reduce cooling loss
Air Quality Protection
Keeps out dust, insects, and odors
Dual Control Modes
Automatic (door contact) & manual (IR remote)
Quiet Operation
Features high-quality German radial fans
Easy Maintenance
Removable suction grill and replaceable filter
Plug & Play
Easy installation and connection
Technical Specifications
Voltage
220V / 60 Hz
Power Consumption
0.6 kW to 1.2 kW (depending on model)
Airflow
1050–3800 m³/h (4-speed settings)
Noise Level
54.5–65.5 dB (at 3m distance)
IP Rating
IP20
Weight
49–89 kg (depending on model)
Suitable Door Height
Up to 2.7m
Installation & Control
Mounting
Hidden horizontal installation in suspended ceiling
Control
IR remote with line-of-sight requirement
Door Contact
Automatically activates when door opens
Timer Function
Runs for 30 seconds after door closes
Fan Speed
4 adjustable speed levels
Use Cases
- Office Buildings
- Restaurants
- Banks
- Hotels
- High-End Retail
