Exdirt Dirt & Sludge Separators

Exdirt separators remove microscopic dirt (5.0μm+) from HVAC systems. 92 models, brass/steel construction, 1.2-180+ m³/h flow. Desludging valve enables maintenance without shutdown.

Product Description

Key Features & Benefits

Microscopic Particle Removal
Captures particles as small as 5.0 micrometres (barely visible to naked eye)
Operating Cost Savings
Protects pumps, valves, and heat exchangers from abrasive damage
Non-Stop Maintenance
Desludging ball valve allows cleaning without system shutdown
Specialized Insert Design
Optimized internal elements for maximum dirt separation efficiency
Multiple Construction Options
Brass, Steel, and Steel with inspection opening versions

Technical Specifications

Connection Range

22mm to DN 200+ (92 models)

Flow Capacity

1.2 to 180+ m³/h volume flow

Temperature Rating

110°C maximum operating temperature

Pressure Options

6 bar & 10 bar versions available

Particle Size

Effective from 5.0 micrometres

Media Compatibility

Water & water/glycol mixtures up to 50/50%

Product Series Comparison

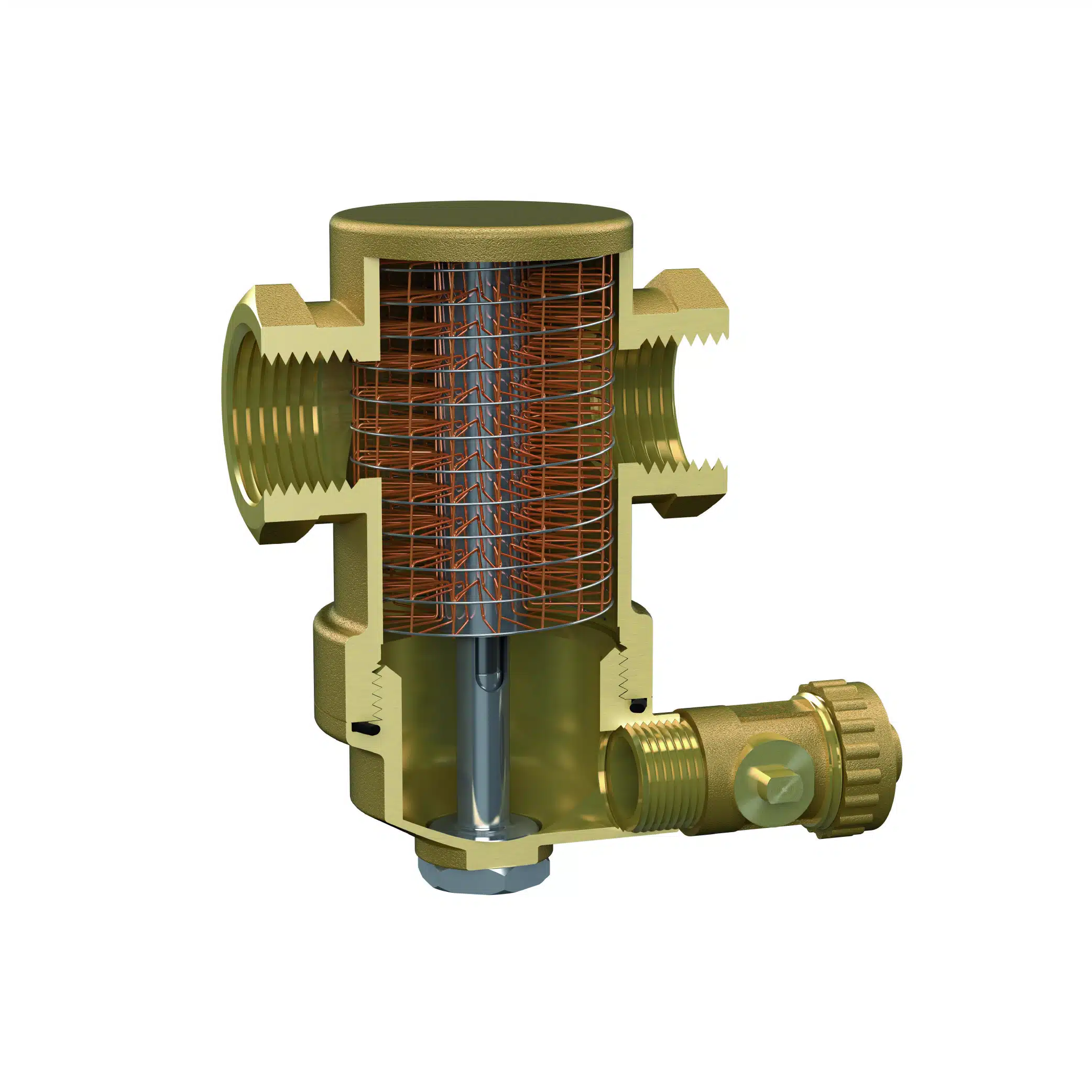

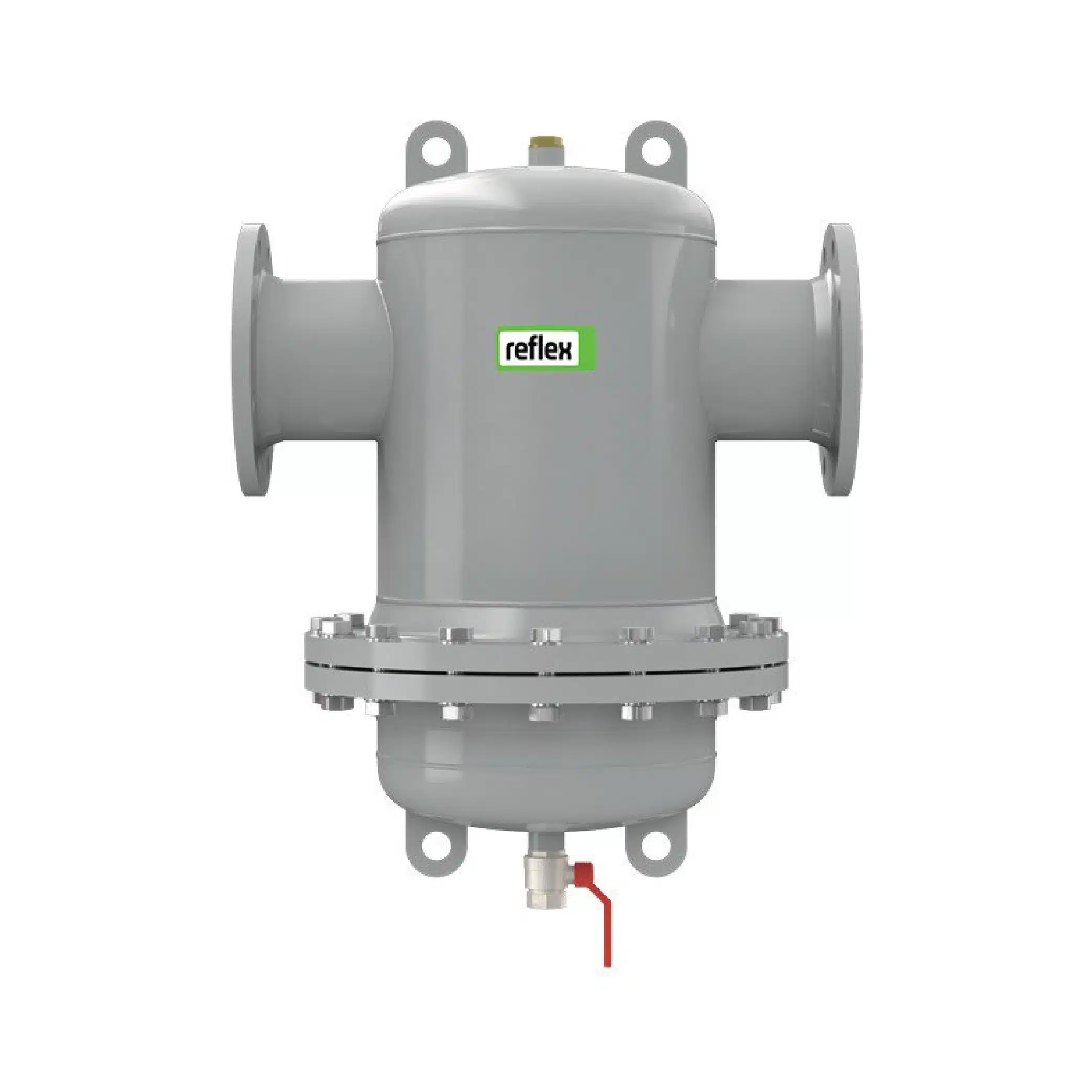

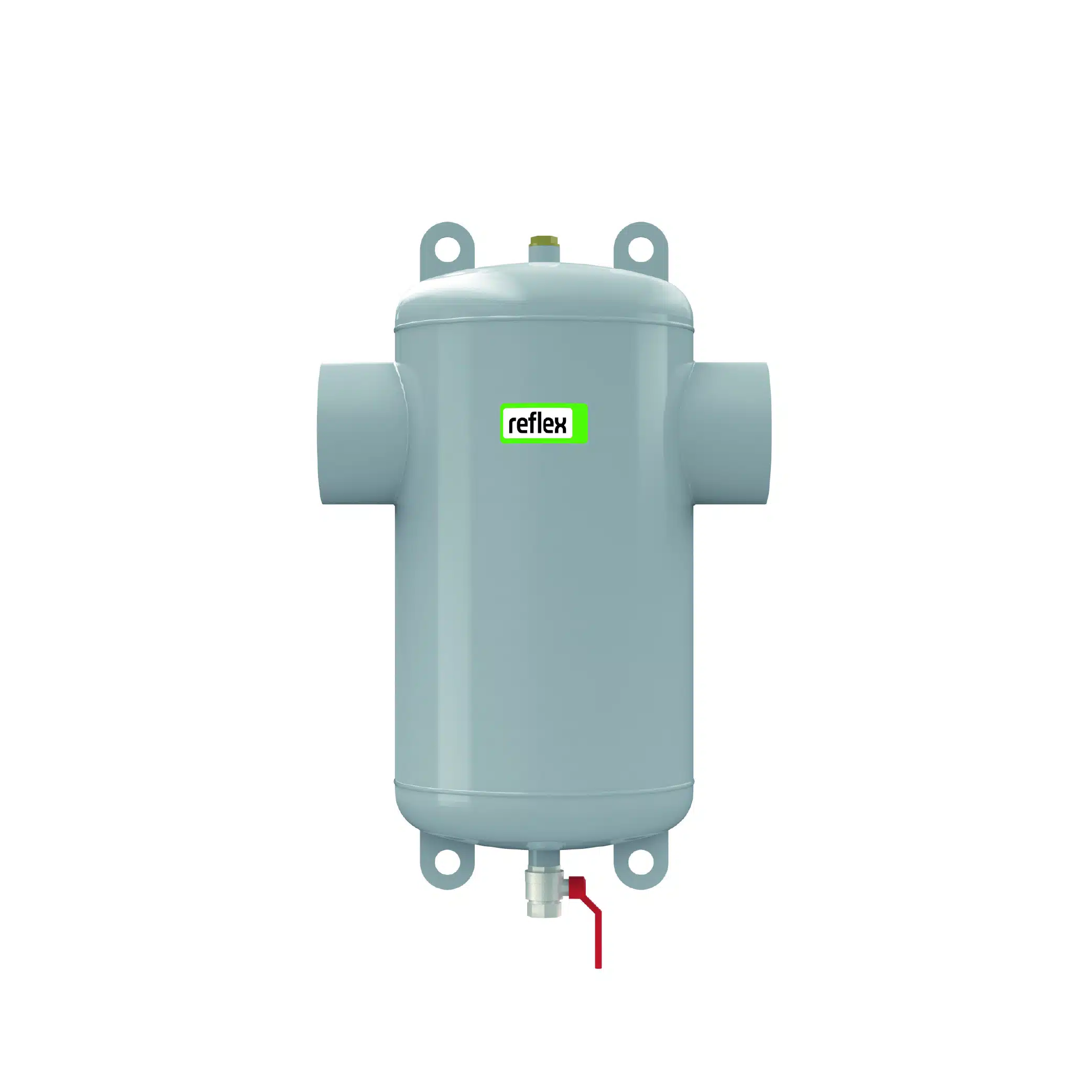

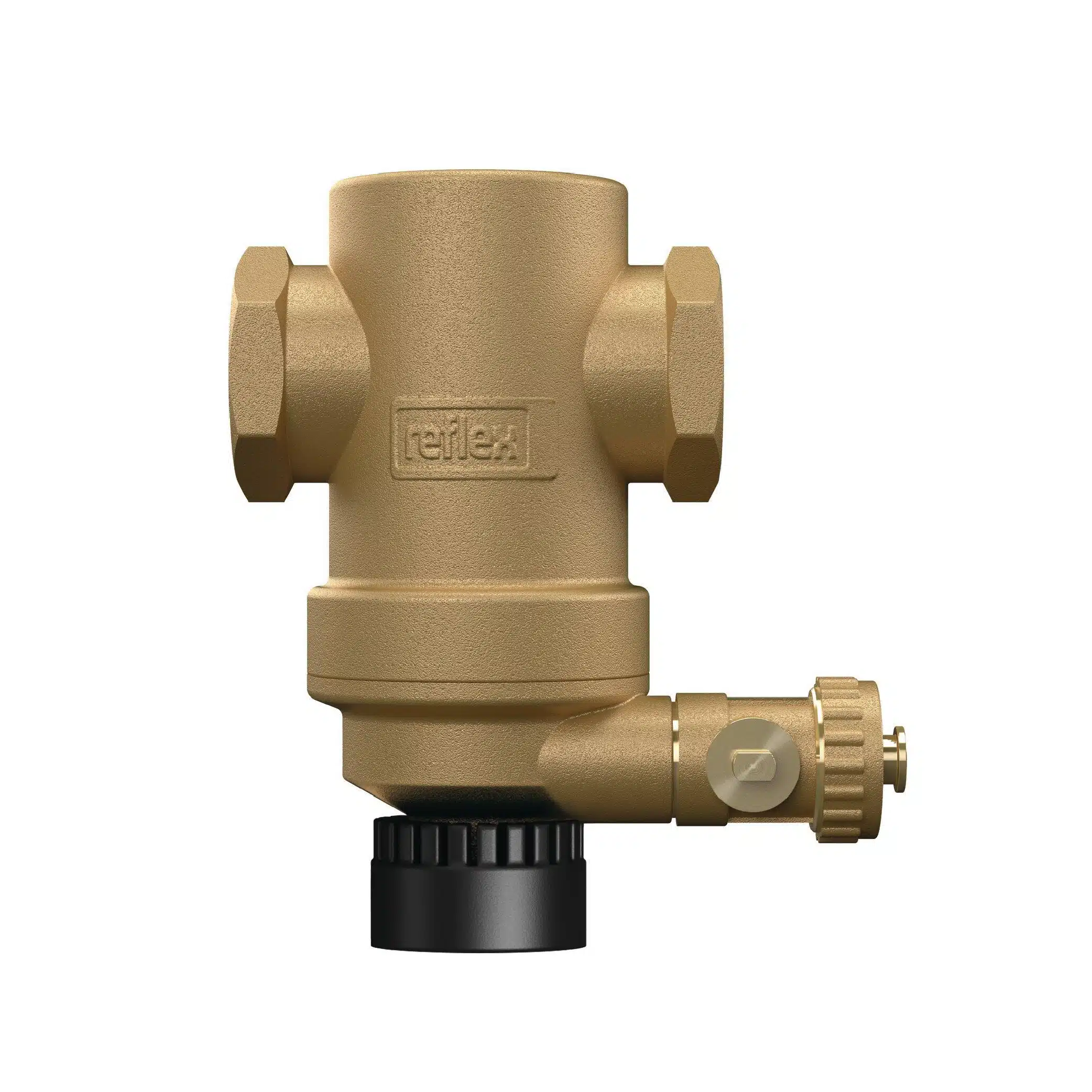

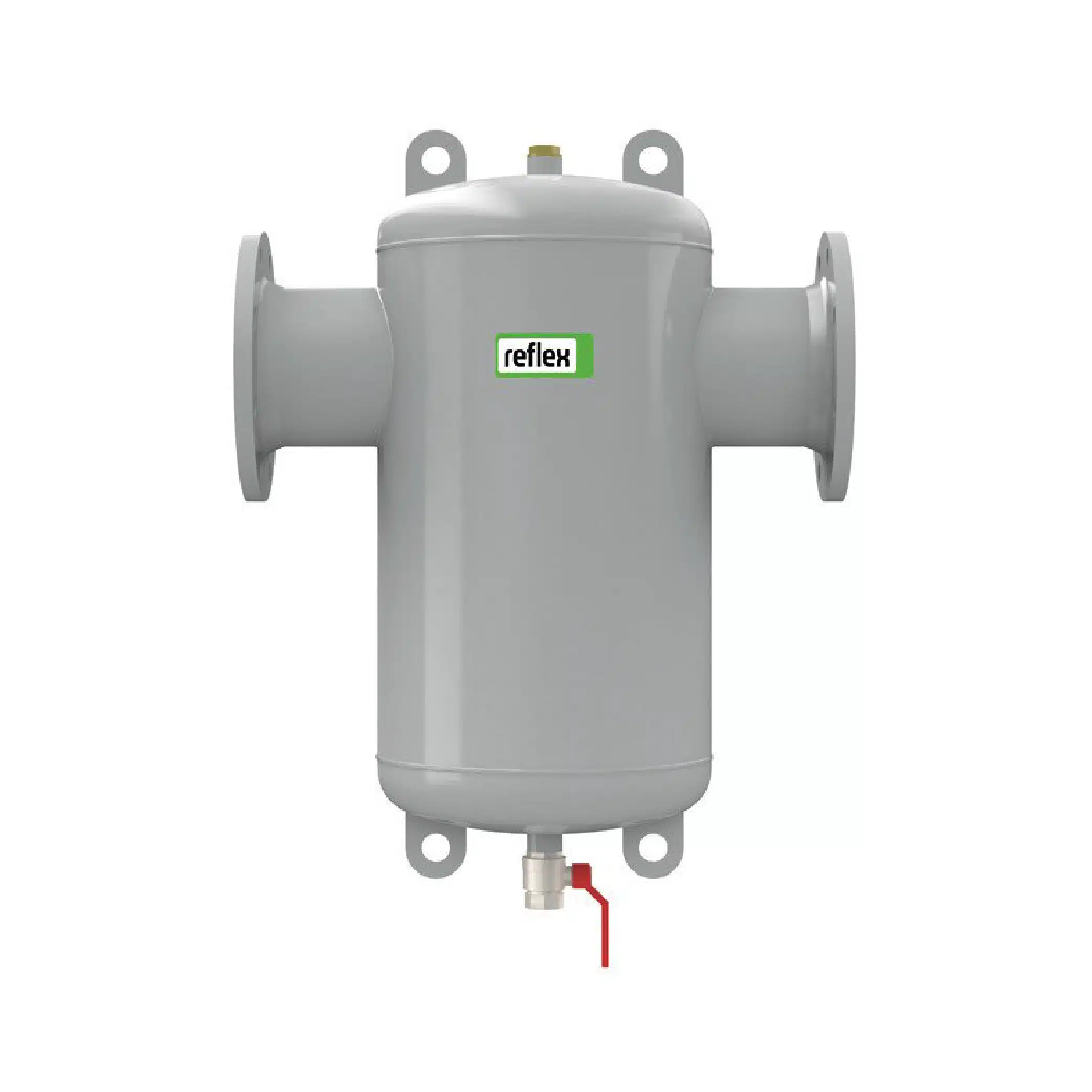

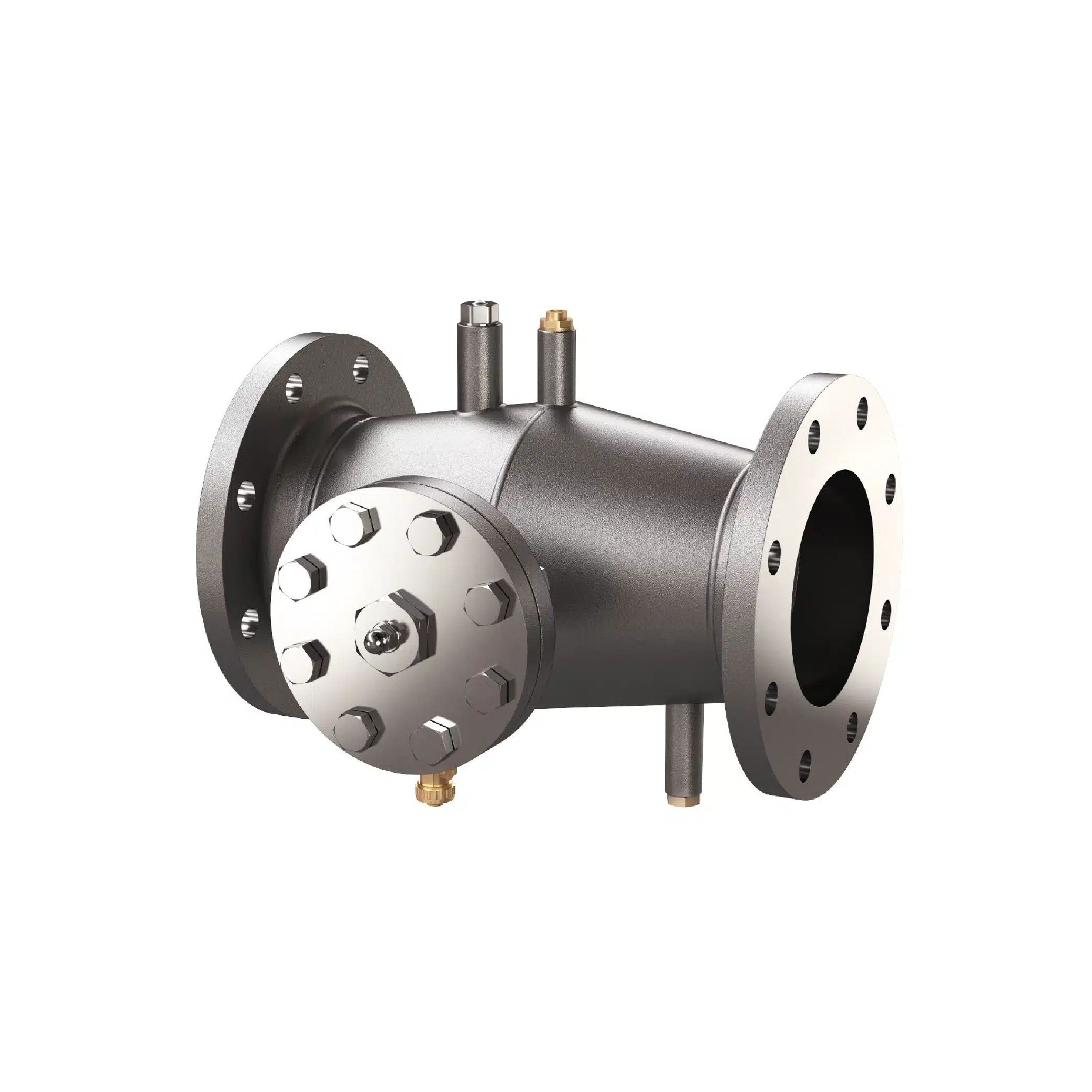

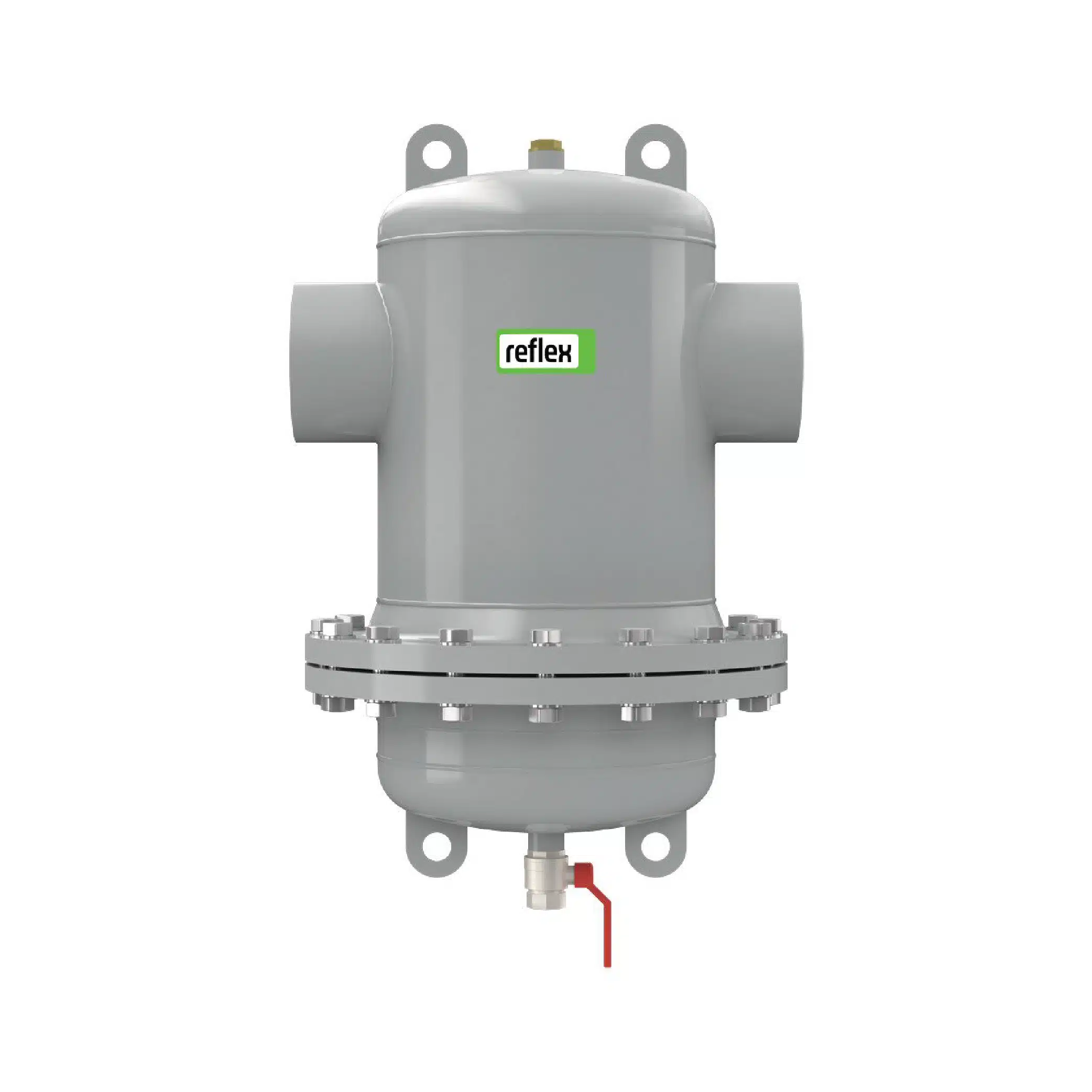

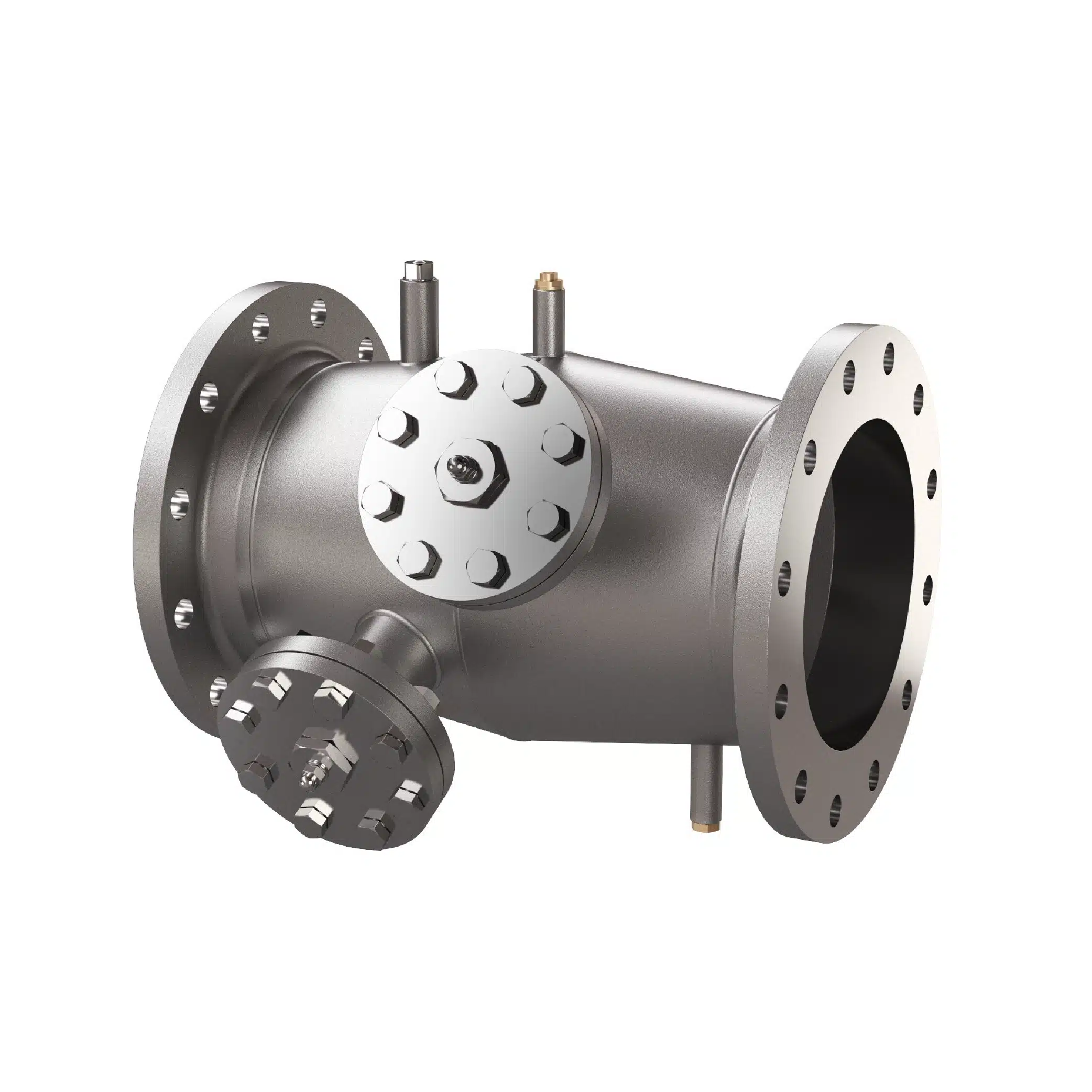

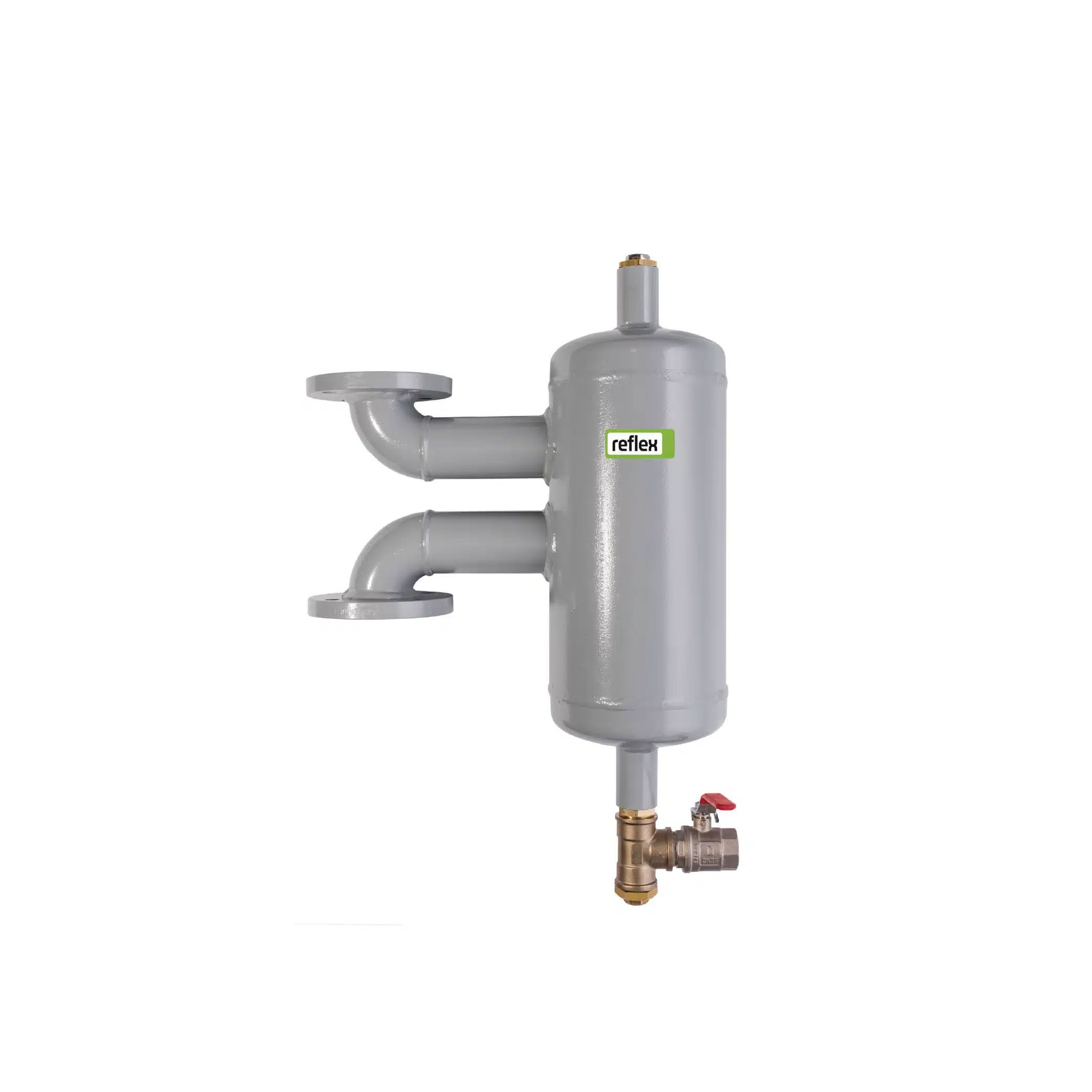

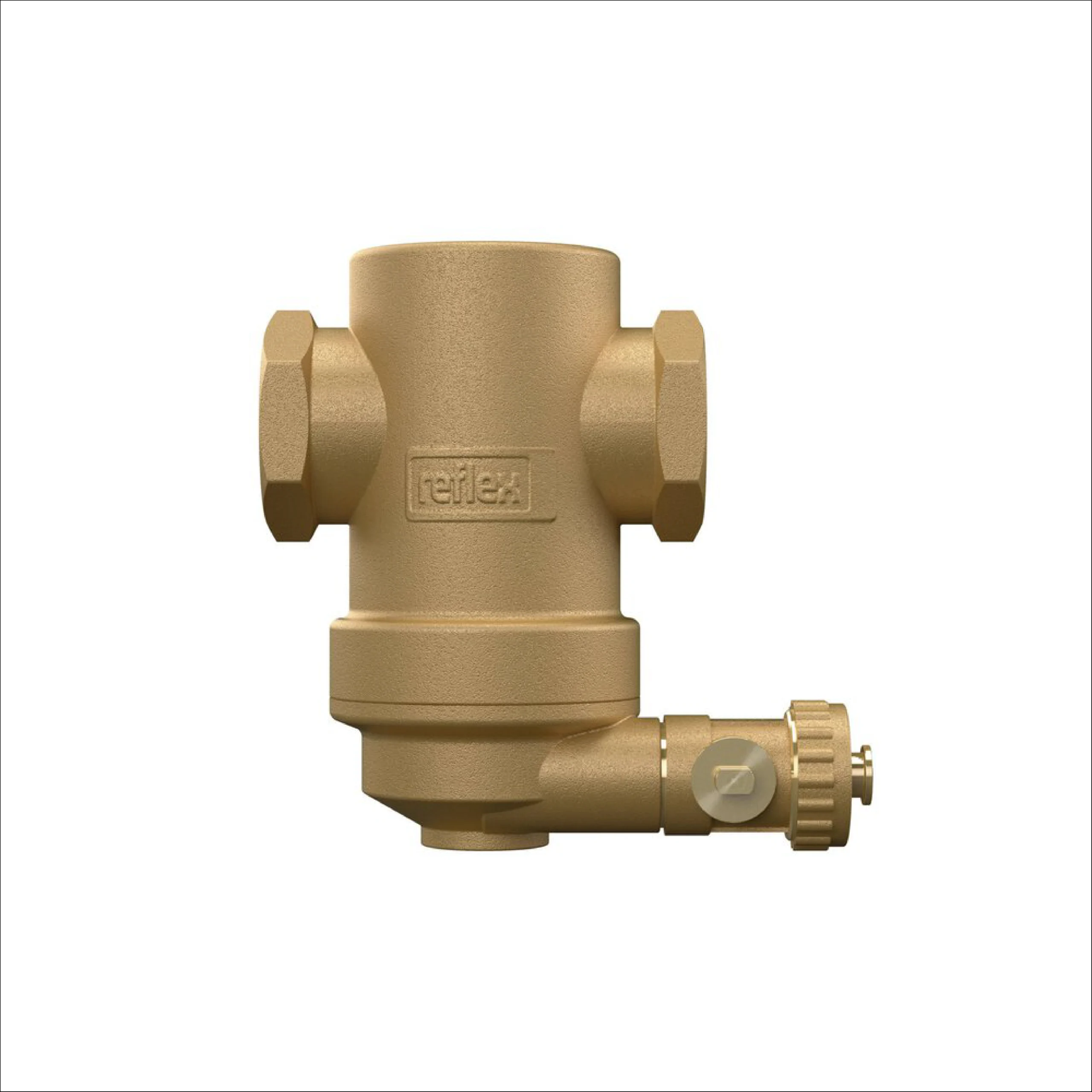

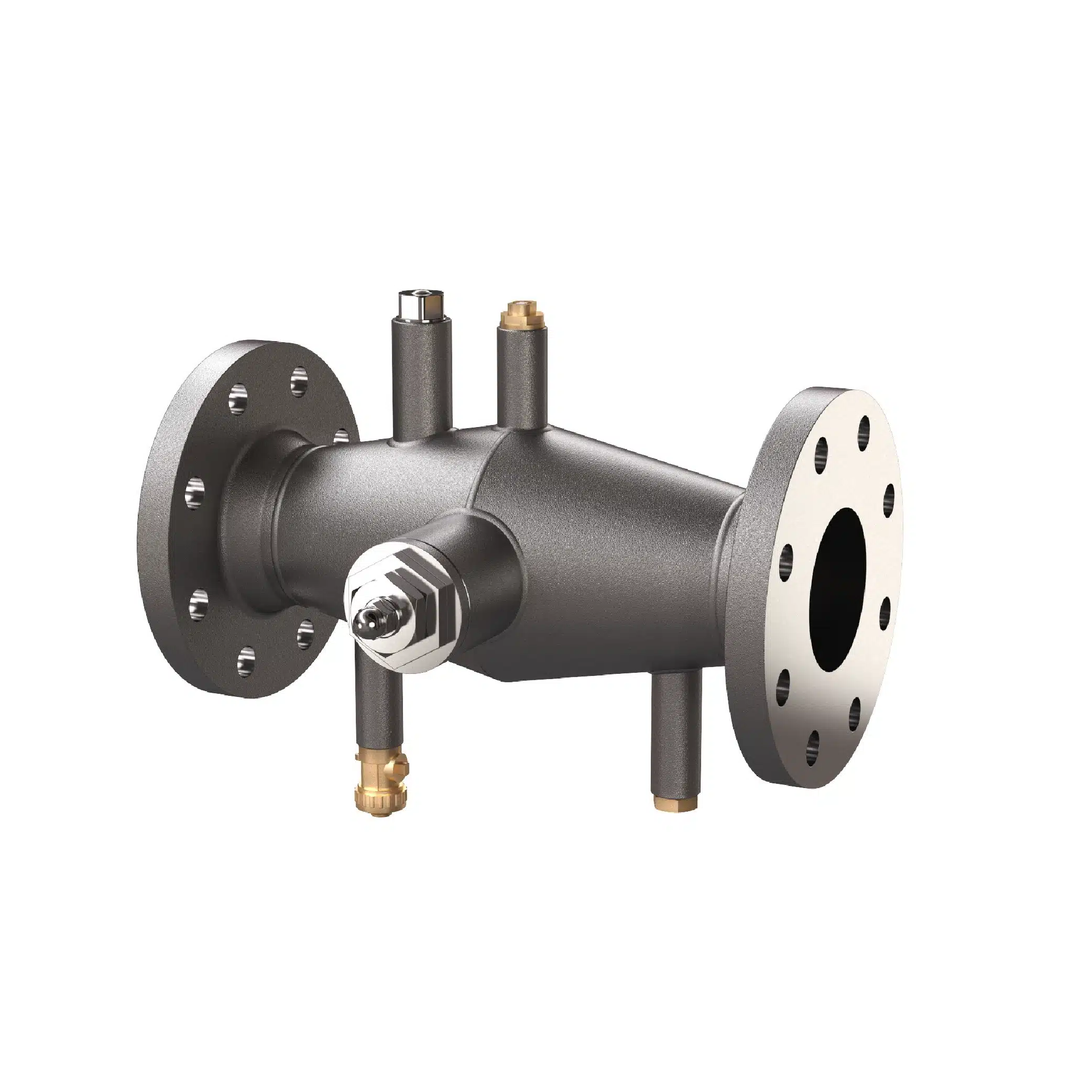

	Brass Series	Steel Series	Exdirt V Series	Magneto Series
Connections	Threaded, Clamping ring	Welded	Flanged	Flanged with magnet
Sizes	22mm – 2 inch	DN 50 – DN 200	DN 50 – DN 100	DN 50 – DN 200
Flow Rate	1.2-7.5 m³/h	12.5-180 m³/h	12.5-47 m³/h	12.5-180 m³/h
Key Feature	Economical, Easy installation	Industrial durability	Inspection opening	Additional magnetic separation
