Exvoid Microbubble Separators

Exvoid microbubble separators remove microscopic air bubbles from HVAC systems. Brass/steel construction, 1.2-180+ m³/h flow, integrated automatic venting for high-point installation.

Product Description

Key Features & Benefits

Microbubble Precision
Specifically designed to capture and remove microscopic air bubbles invisible to the naked eye
Rapid Air Removal

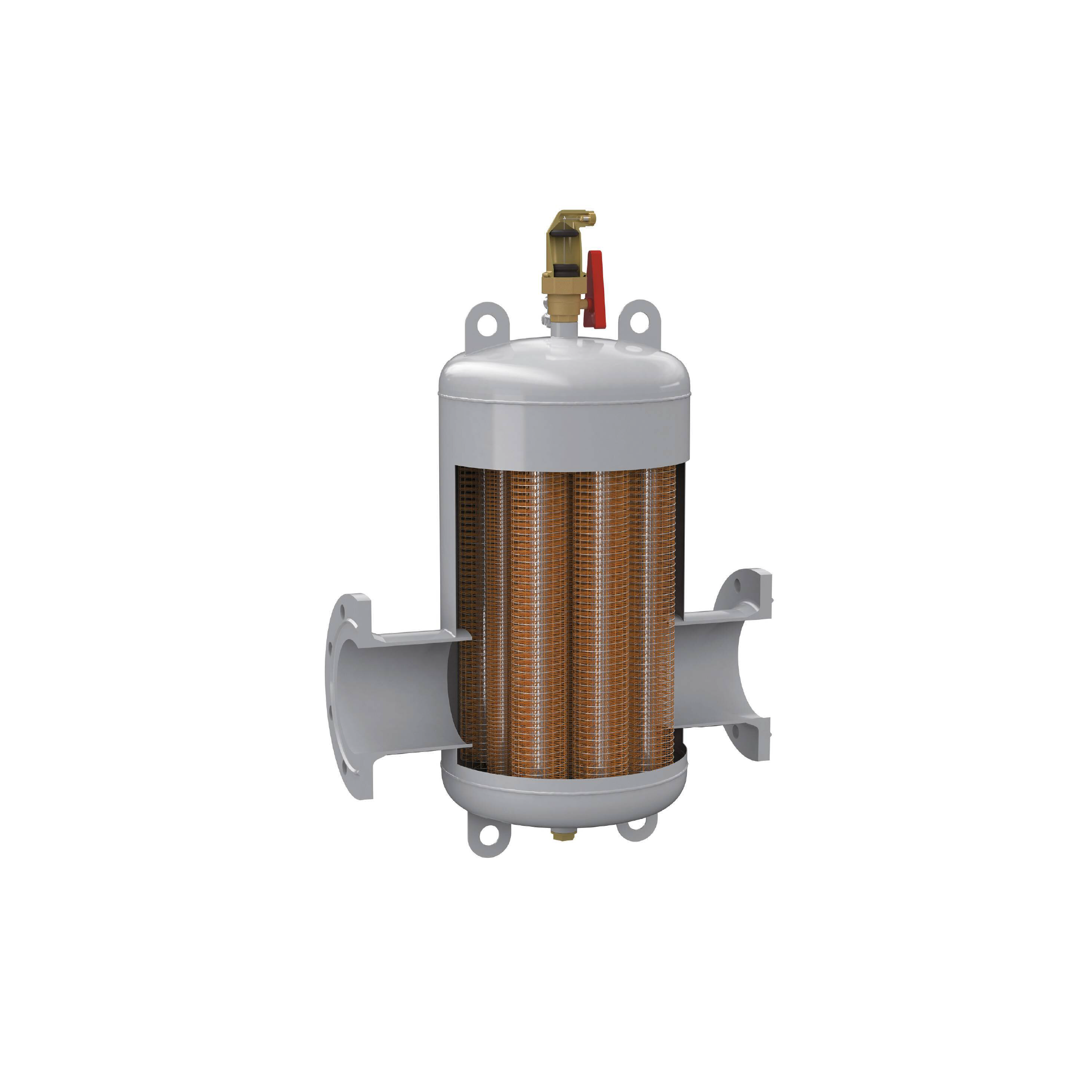

Optimized separating element ensures quick and reliable gas elimination from liquid flow
Integrated Ventilation
Built-in non-shut-off Exvoid T ventilator for automatic, continuous gas discharge
High-Point Optimization
Engineered for installation at system high points where microbubbles naturally accumulate
Dual Material Options

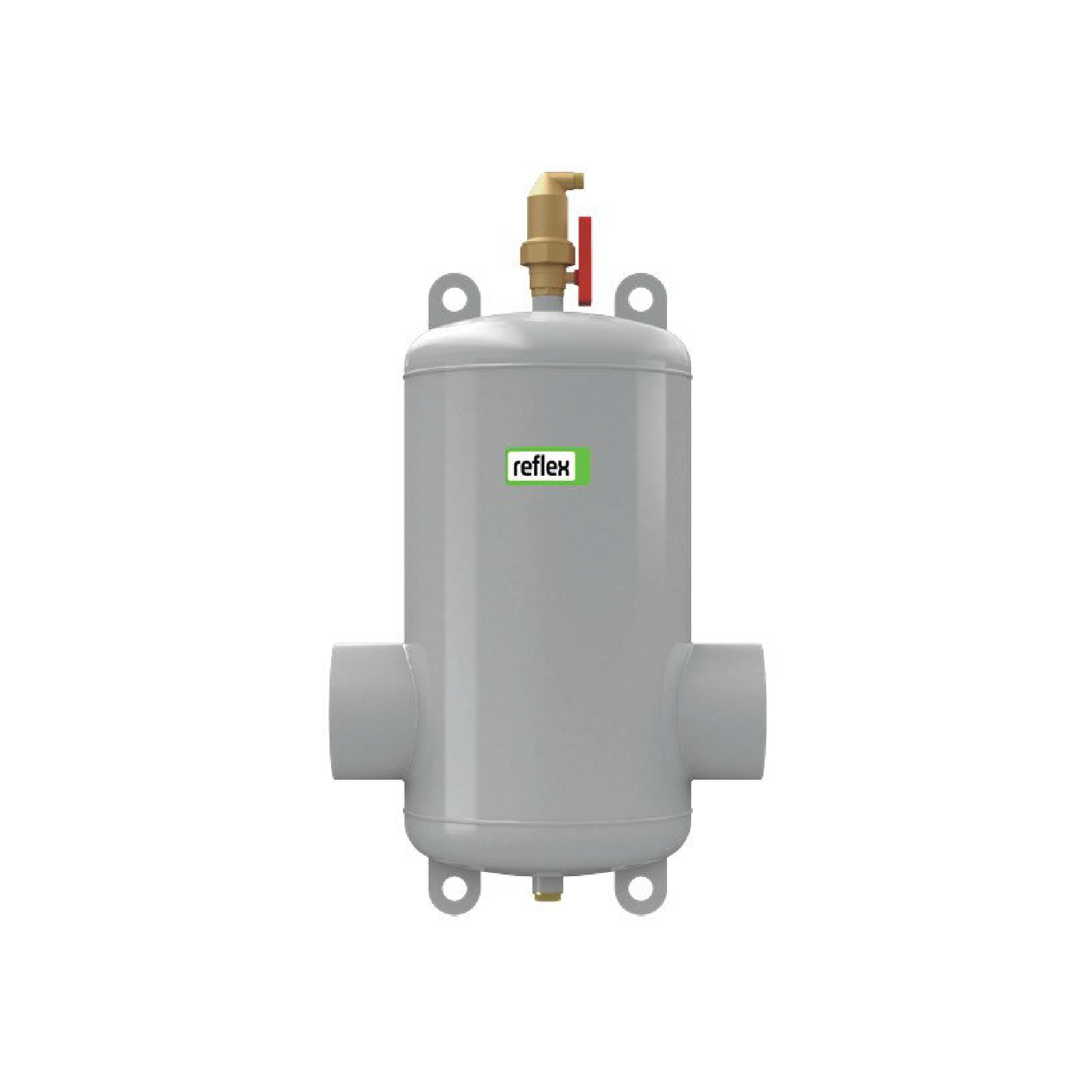

Brass for standard applications, Steel for industrial/commercial systems

Technical Specifications

Connection Range

22mm to DN 200+ (42 models)

Flow Capacity

1.2 to 180+ m³/h volume flow

Temperature Rating

110°C maximum operating temperature

Pressure Rating

10 bar maximum operating pressure

Construction Types

Threaded, clamping ring, welded, flanged connections

Media Compatibility

Water & water/glycol mixtures up to 50/50%

Material Series Comparison

	Brass Series	Steel Series
Connections	Threaded (IG), Clamping ring	Welded, Flanged
Size Range	22mm to IG 2″	DN 20 to DN 200+
Max Flow	1.2 – 7.5 m³/h	12.5 – 180+ m³/h
Applications	Residential, small commercial	Industrial, large commercial
Installation	Standard plumbing	Industrial piping
