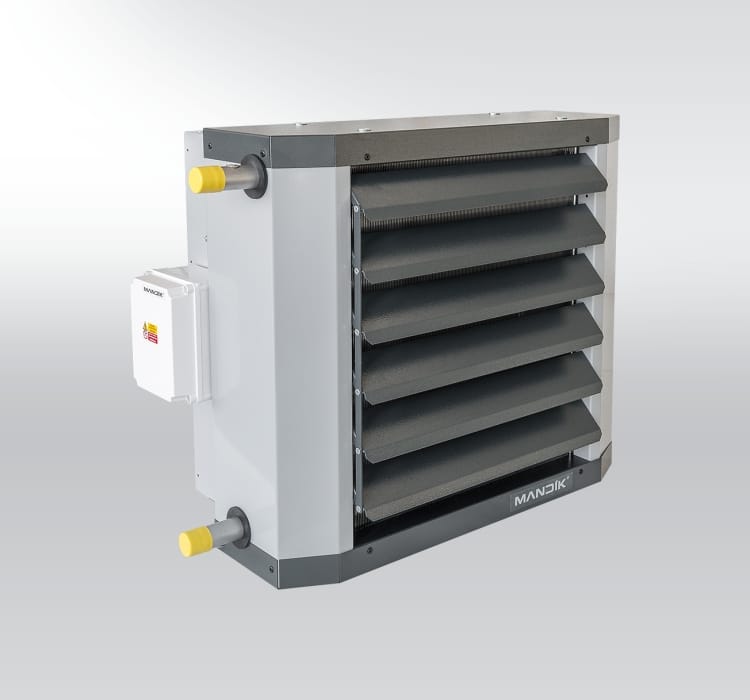

Hot water heater unit – MONZUN-TE
Hot water heater unit – MONZUN-TE
A hot water air handling unit designed for ecological heating and ventilation of halls and rooms. It uses hot water as the heating medium and can be fitted with accessories like a mixing chamber for fresh air supply.
Product Description
Key Features & Benefits
Technical Specifications
Heating Output
9.6 kW to 88.7 kW.
Air Flow Volume
1,450 to 7,500 m³/h.
Heating Medium
Hot Water: Max 100°C, Max Pressure 1.4 MPa.
Electrical Supply
230V/50Hz or 3×400V/50Hz. Multiple wiring variants (B, BT, BTM, BTPM).
Operating Environment
Indoor, protected (Class 3K5), 0°C to +40°C. No explosion hazard.
Connection Size
Size 1: G3/4", Size 2: G1", Size 3: G5/4".
Models Comparison
| Model Size | Key Feature | Typical Application |
|---|---|---|
MONZUN-TE Size 1 |
Compact, up to ~30 kW. G3/4″ connection. |
Smaller halls, workshops, auxiliary rooms. |
MONZUN-TE Size 2 |
Medium capacity. G1″ connection. |
Medium industrial halls, sports halls. |
MONZUN-TE Size 3 |
High capacity up to 88.7 kW. G5/4″ connection. |
Large production halls, warehouses, arenas. |
Installation & Control
Mounting Options
Wall brackets or ceiling suspenders, available for single units or full ventilation sets.
Control Variants
Basic (B) to advanced (BTM) wiring for single or multi-unit thermostat control.
Speed & Temperature Control
Thyristor speed regulators (P-E series) and programmable room thermostats available.
Freeze Protection
Anti-freeze thermostat (closes damper at ≤6°C) recommended, especially for ventilation sets.
Professional Installation
Must be installed by authorized personnel according to all applicable standards.
Use Cases
- Industrial Workshops & Factories
- Commercial & Office Buildings
- Sports & Leisure Facilities
- Hotels & Public Buildings
- Retail & Warehouses
Product brochure
