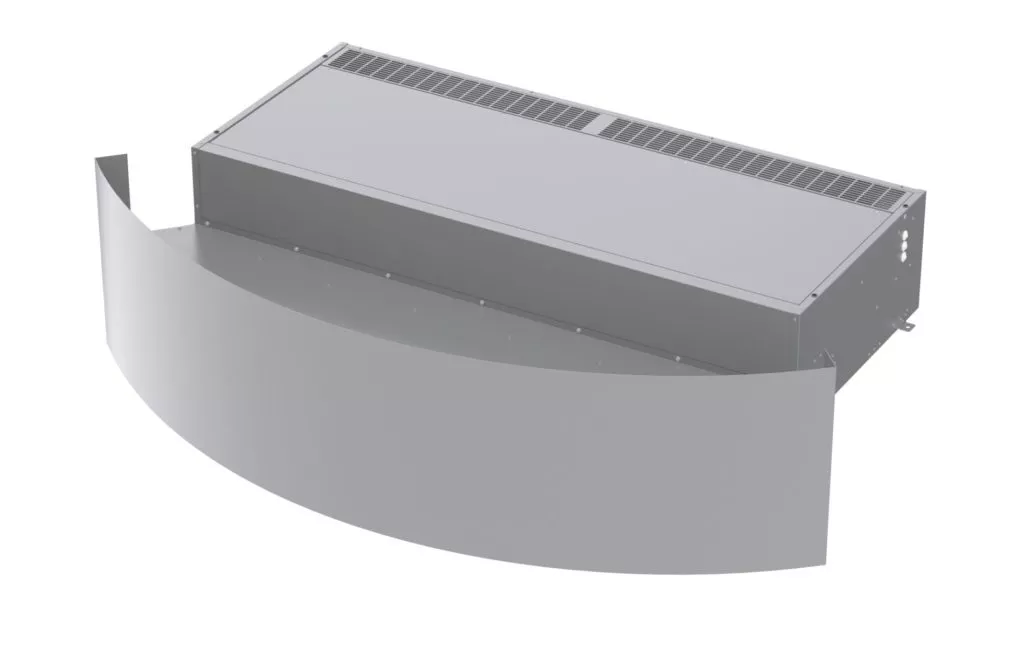

Li Carousel Air Curtains
Li Carousel Air Curtains
The Li Carousel air curtain is the perfect solution for buildings with revolving doors. Designed to blend smoothly with high-end interiors—from luxury boutiques and banks to hotels and universities—it combines elegance with efficiency. Hidden discreetly within the door frame, it directs a heated air curtain downward, forming an invisible yet powerful barrier. This custom-fit design ensures top performance, flawless appearance, and reliable protection from outdoor elements without disturbing the interior’s refined look.
Product Description
Key Features & Benefits
Custom Design for Carousel Doors
Tailored to fit the radius of revolving doors
Energy Saving
Prevents heat loss in winter and cool air loss in summer
Elegant & Discreet
Installed on the upper swivel, blends with architecture
Complete Climate Separation
Creates an effective air barrier
Multiple Heating Options
Available without heating, with hot water coil, or electric heater
Custom Powder Coating
Available in standard RAL colors or stainless steel
Improved Comfort
Eliminates cold drafts at floor level behind the door
High Performance EC Fan Option
Energy-efficient motor with variable speed
Technical Specifications
Airflow
Up to 9400 m³/h
Covered Door Width
1.0 - 3.37 m
Heating
Hot Water (Up to ~69 kW) or Electric (Up to 30 kW)
Power Supply (for Electric Heater)
3 × 230V
Fan Power Consumption (AC)
1160 - 2900 W
Fan Power Consumption (EC)
660 - 1650 W
Noise Level
61 - 68 dB(A)
Protection Rating
IP20
Weight
65 - 150 kg
Installation & Control
Mounting
Custom-installed on the upper swivel of the revolving door.
Control
Wall-mounted controller (ECON or Ditronic Touch)
Door Contact
Magnetic (DKMG) or mechanical; signals door position for automatic operation.
BMS Integration
Direct control via 0-10V signal or Modbus protocol (Ditronic Touch).
Timer Function
Adjustable runtime after door closes (via controller).
Use Cases
- Shopping Malls & Department Stores
- Hotel Entrances
- Banks
- Office Buildings
- Hospitals & Clinics
- Universities
