Single Compartment Smoke Control Damper SEDS

Categories Smoke Control Dampers, Smoke Control Dampers - Mandik

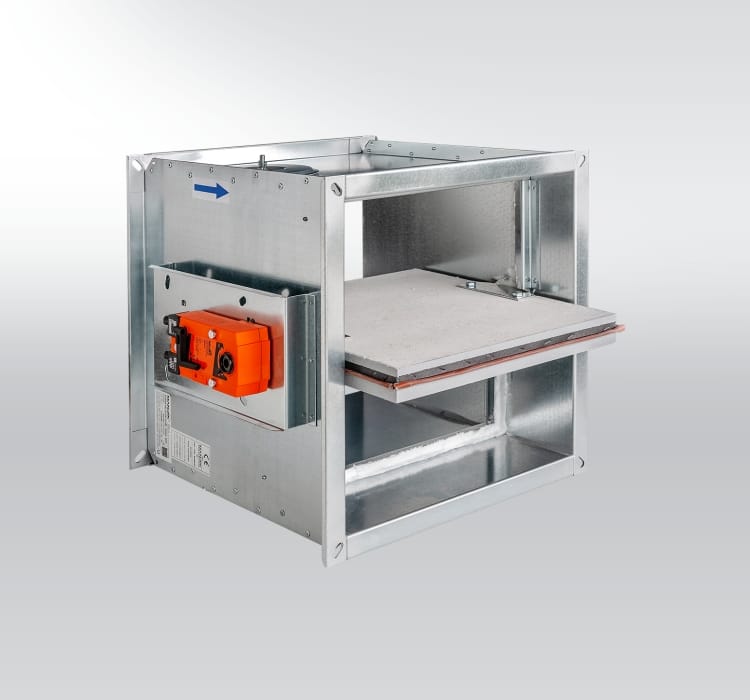

Single Compartment Smoke Control Damper SEDS

A CE-certified square damper for smoke control ducting systems, designed to extract heat and smoke from a single fire compartment. Features low leakage and electrical actuator operation.

Product Description

Key Features & Benefits

Single Compartment Safety
Designed specifically for effective smoke and heat extraction from one fire-affected area.
Full CE Certification
Certified according to EN 12101-8 and tested per EN 1366-10, ensuring compliance with EU safety standards.
Fire Resistance Rated
Classified ES 90/600 (90 minutes integrity & 600°C smoke temperature) under EN 13501-4 for proven performance.
Low Leakage Design
External Casing leakage class A and Internal leakage class 2 (EN 1751) for efficient system performance.
Electric Actuator Control
Reliable damper actuation by an electrical actuator for precise and dependable operation during an emergency.
Durable & Tested
Passed cycling test class C 300 (300 open/close cycles), ensuring long-term reliability and functionality.

Technical Specifications

Size Range

180×180 mm to 1600×1000 mm (Square/Rectangular)

Certification

CE per EN 12101-8

Fire Classification

ES 90/600 (EN 13501-4)

Test Standard

EN 1366-10

Leakage Class

External: A - Internal: 2 (EN 1751)

Cycling Endurance

Class C 300 (EN 12101-8)

Max air speed

15 m/s

Max pressure

+500 Pa

Max underpressure

-1000 Pa

Installation & Control

Duct Integration

For installation in smoke control ventilation ducts and shafts.

Actuator

Requires connection to a compatible 24V or 230V electrical actuator (not always included).

Mounting

Professional installation required, ensuring airtight seals and proper support within the duct.

Control System

Must be integrated into the building's smoke control or fire alarm system for automatic activation.
