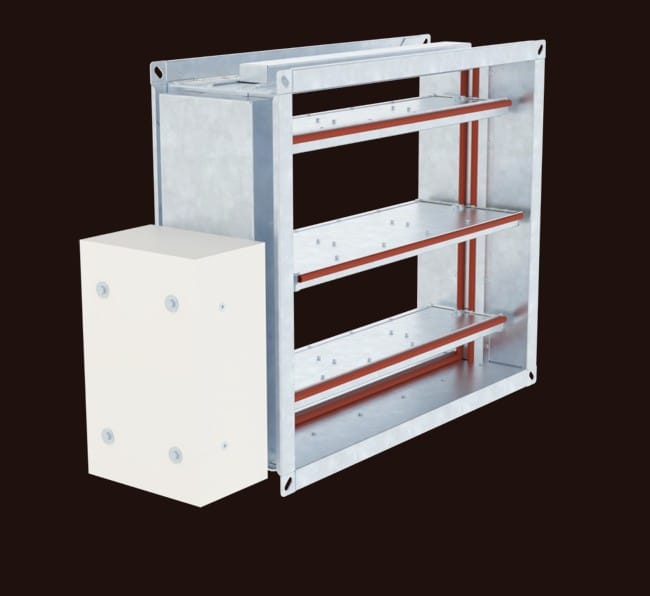

Single Compartment Smoke Control Damper SEDS-L

A large-format, square CE-certified damper for smoke control systems, designed to extract heat and smoke from a single compartment. Features a high fire rating (ES 120), superior leakage control, and flexible vertical/horizontal installation.

Product Description

Key Features & Benefits

Large Square Format
For large duct openings from 200×200 mm up to 1200×1200 mm.
Enhanced Fire Rating
High fire resistance: ES 120/600 (120 minutes integrity & 600°C smoke temperature).
Superior Leakage Control
Excellent External (A) and Internal (Class 3) leakage ratings for maximum system efficiency.
Flexible Installation
Can be installed in both vertical or horizontal blade positions for versatile duct integration.
High Cycle Endurance
Cmod cycling class ensures durability for frequent testing and maintenance operations.
Electric Actuator Control
Reliable actuation by electrical actuator with AA/MA (Auto/Manual) activation options.

Technical Specifications

Size Range

Square dampers from 200×200 mm to 1200×1200 mm

Certification

CE per EN 12101-8

Fire Classification

ES 120/600 (EN 13501-4)

Test Standard

EN 1366-10

Leakage Class

External: A - Internal: Class 3 (EN 1751)

Cycling Endurance

Class Cmod (EN 12101-8)

Max air speed

15 m/s

Max pressure

+500 Pa

Max underpressure

-1500 Pa

Installation & Control

Versatile Mounting

Suitable for both vertical and horizontal installation within ductwork.

Actuator Connection

Requires connection to a compatible electrical actuator (AA or MA type).

Professional Integration

Must be installed by specialists to ensure airtight sealing in large duct openings.
