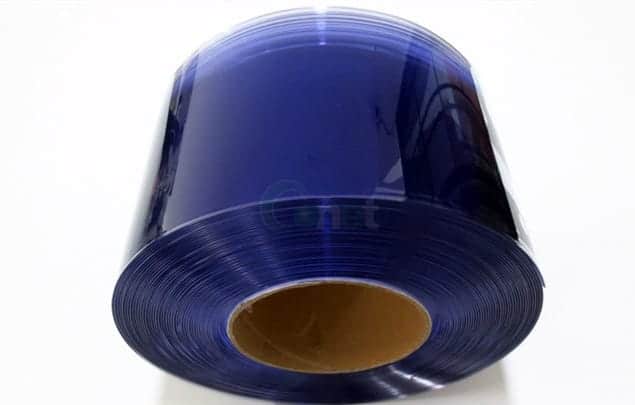

Standard PVC Strip Curtains

The industry’s most versatile and popular transparent strip curtain. It provides an effective, flexible barrier for temperature separation, dust & pest control, noise reduction, and energy savings while ensuring safety through high visibility. Ideal for industrial, commercial, and residential doorways.

Product Description

Key Features & Benefits

High Visibility & Safety
Super clear material provides excellent visibility to see through the curtain, preventing accidental collisions and improving safety for personnel and equipment.
Effective Climate & Energy Control
Creates an effective thermal barrier, minimizing heat loss or cold air escape. This maintains internal temperatures and significantly reduces energy costs for heating and cooling systems.
Contaminant & Pest Barrier
Effectively blocks dust, fumes, insects, and pests from entering sensitive areas like food processing zones, warehouses, or clean environments.
Noise Reduction
The flexible PVC strips absorb and dampen sound transmission, creating a quieter and more comfortable working environment by isolating noisy machinery or areas.
Uninterrupted Workflow
Allows free and easy passage for personnel, forklifts, and goods without the need to open/close a solid door, ensuring continuous productivity and traffic flow.
Durable & Low Maintenance
Made from robust PVC material with high tensile strength and elongation. Resists tearing, is easy to clean, and requires minimal maintenance for long-term use.
Low-Odor & Versatile Formula
Features a low-smell formula suitable for various environments, from heavy industry to commercial spaces and even residential areas.

Technical Specifications

Material

Flexible PVC (Phthalate-Free option available)

Tensile Strength

18.96 MPa

'Elongation at Break

329.2%

Standard Color

Super Clear (Clear Blue). Other colors: Yellow, Red, Gray, etc.

Common Sizes (W x Thick)

200x1.5mm, 200x2mm, 300x2mm, 300x3mm, 400x4mm, 200x5mm

Operating Temperature

-10°C to +50°C

Hardness

80 ±5 Shore A

Installation & Control

Mounting

Easily installed onto existing door frames, ceilings, or structures using aluminum tracks, steel channels, or mounting brackets.

Customization

Strips can be easily cut to custom heights on-site with a utility knife or scissors for a perfect fit.

Overlap Design

Strips are typically overlapped by 25-50% to ensure complete coverage and an effective seal without gaps.

Maintenance

Simple to clean with mild soap and water. Wipes clean and does not retain dirt or moisture.

Replacement

Individual damaged strips can be replaced quickly and inexpensively without removing the entire curtain.

Use Cases

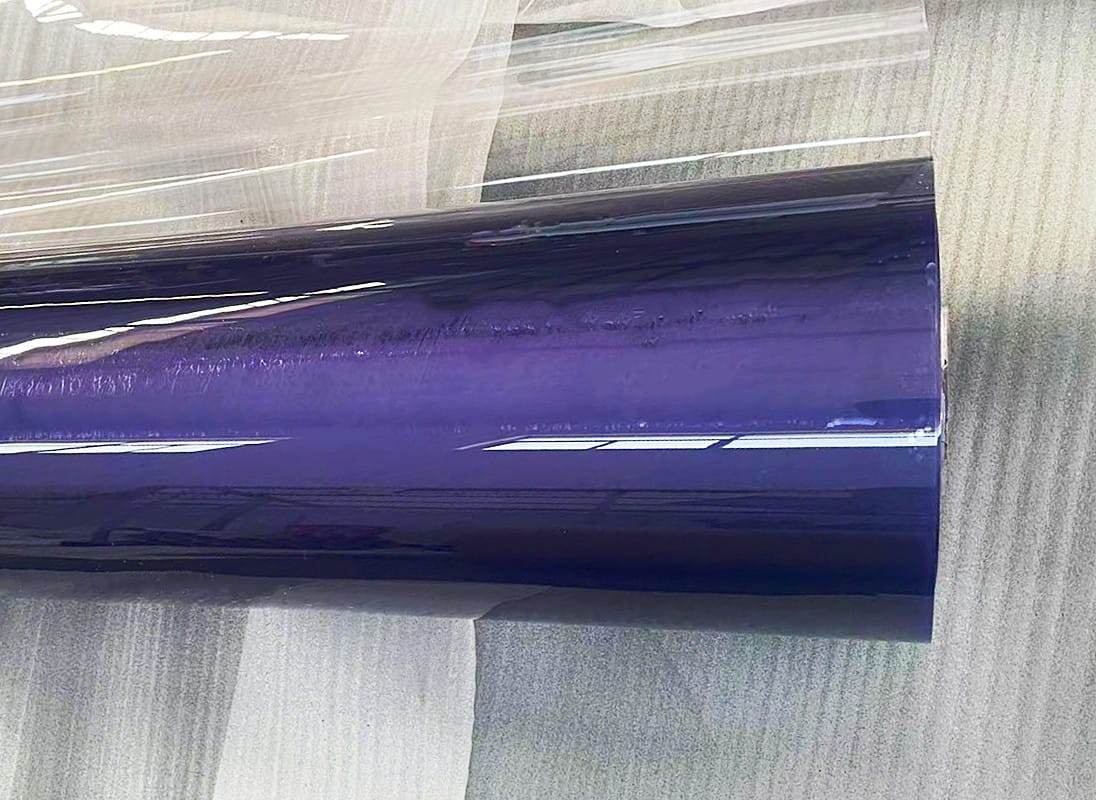

CLear-PVC-Sheet

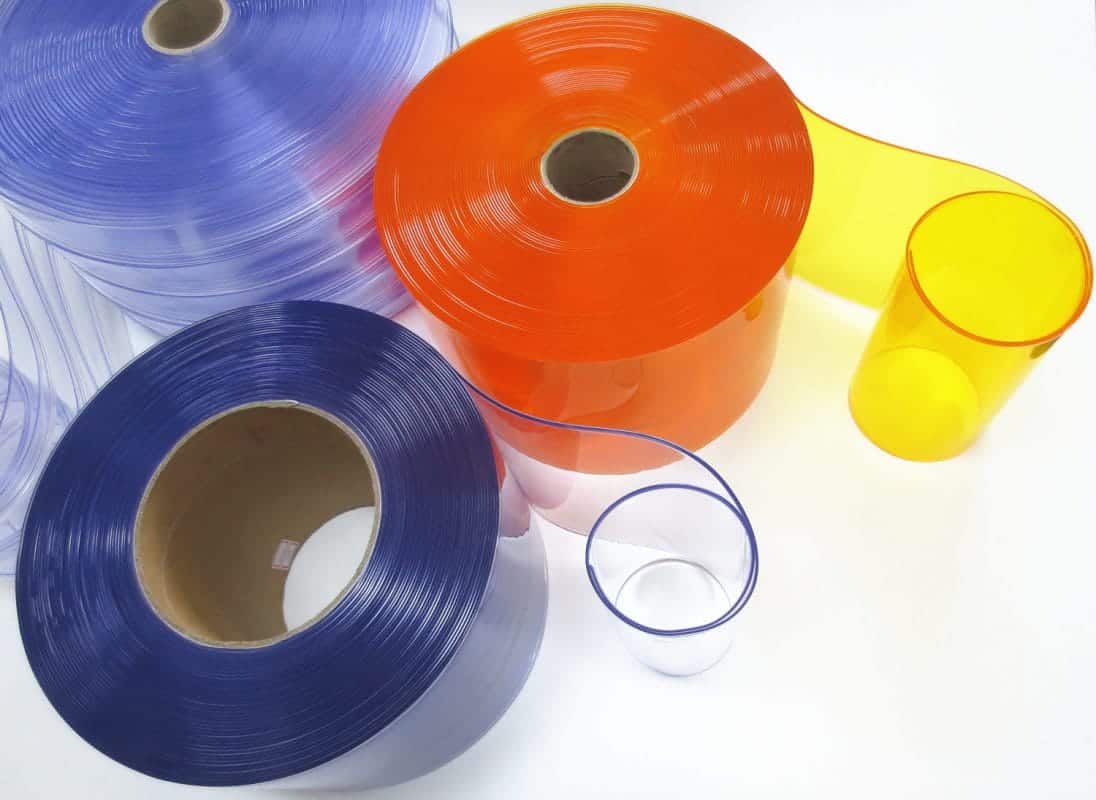

CLEAR-PVC-STRIP-CURTAIN-

oplus_32

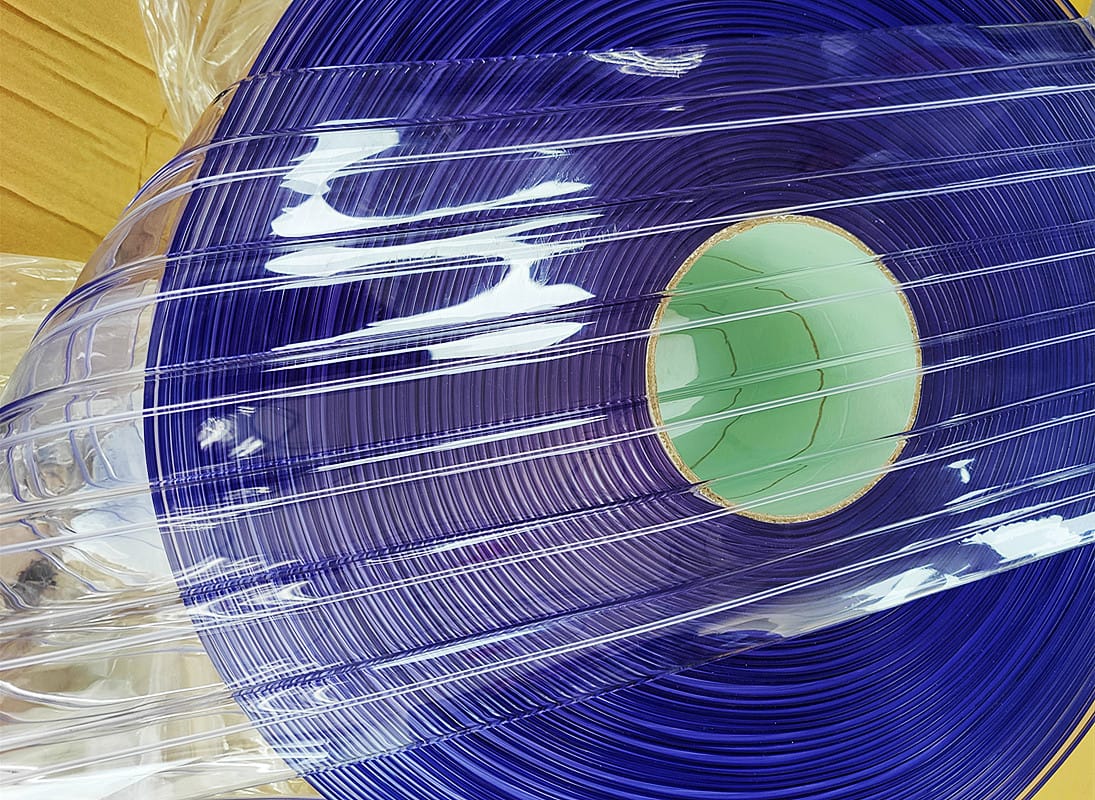

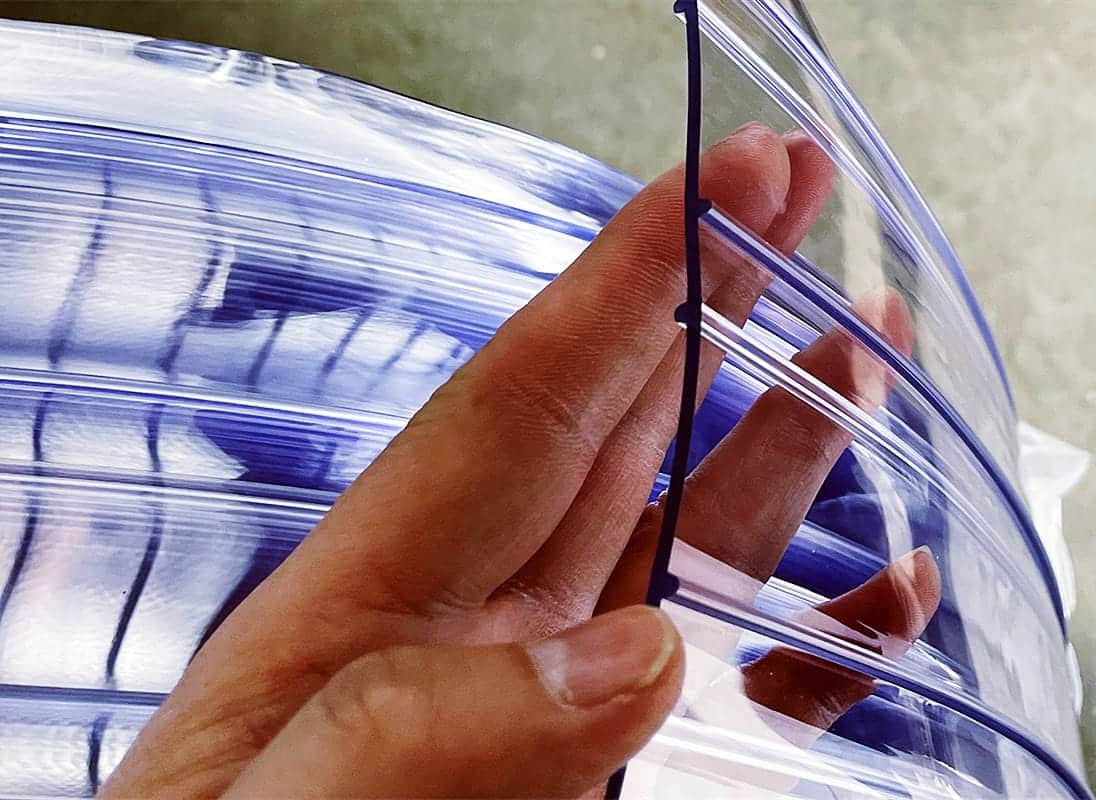

Ribbed-rolls-

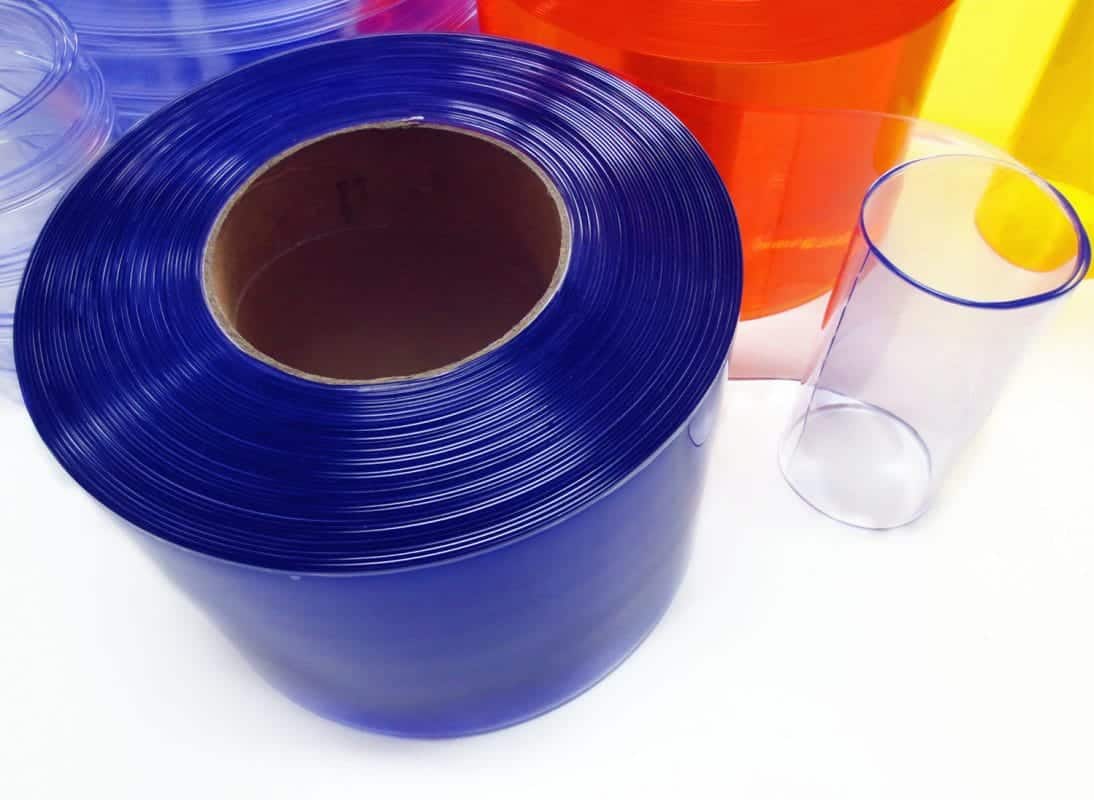

Super-clear-PVC-ROLLS
