Tubex Design Air Curtain
Product Description
Key Features & Benefits

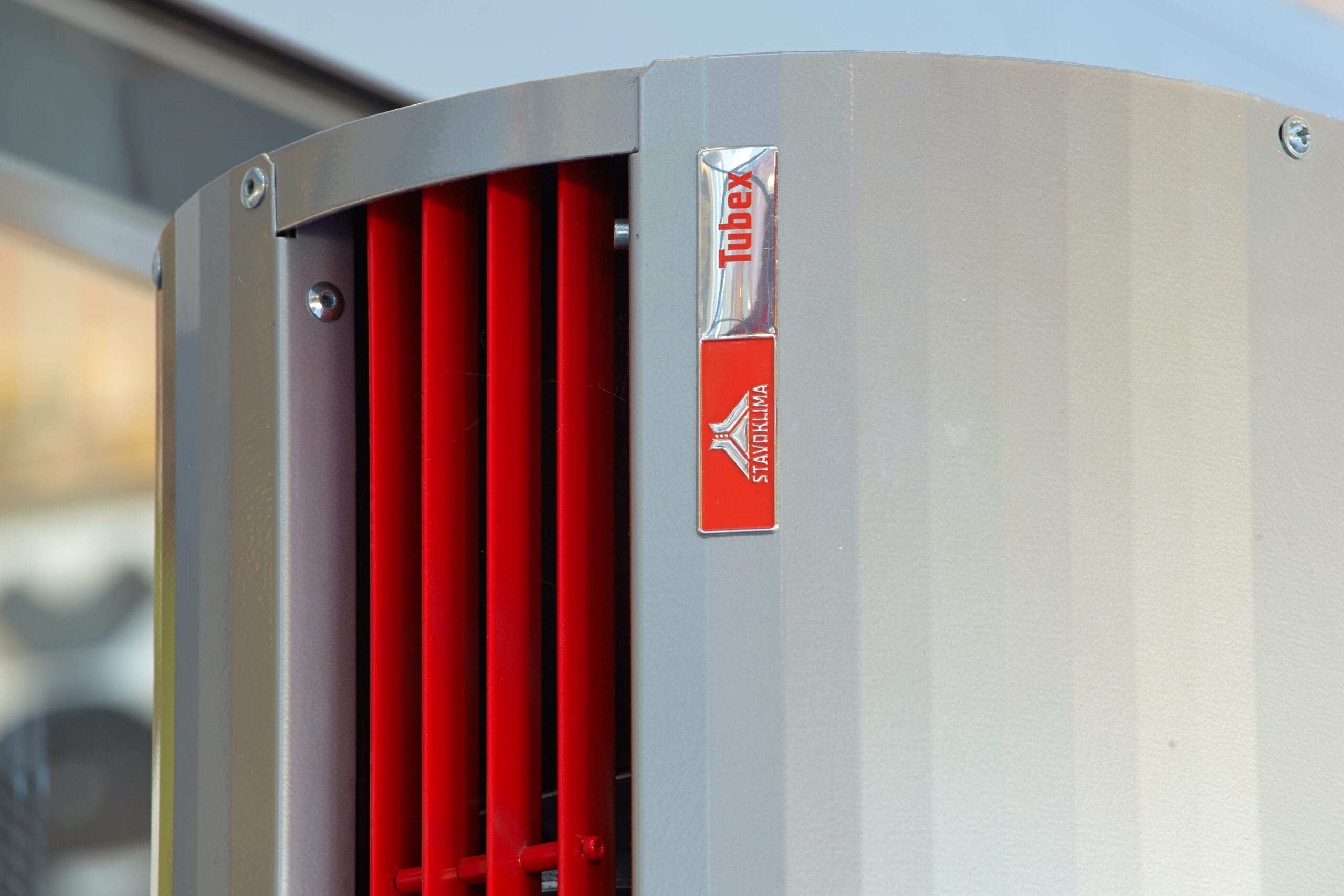

Architectural Unibody Design
Curved, ergonomic shape from painted metal or stainless steel for seamless interior integration.
Remarkably Quiet Operation
Innovative design ensures a silent environment, perfect for libraries, high-end restaurants, and luxury lobbies.
Premium German Radial Fans
Equipped with high-quality, efficient ZIEHL-ABEGG radial fans for reliable and powerful performance.
Customizable Elegance
Stainless steel body available in various finishes and colors to match any interior design vision.
Precision Airflow
Features a directional nozzle and variable speed control for efficient and accurate air delivery.
Built-In Maintenance & Protection
Includes review board, EU3 filters, auto-deaeration valves (water models), and thermal overload protection.

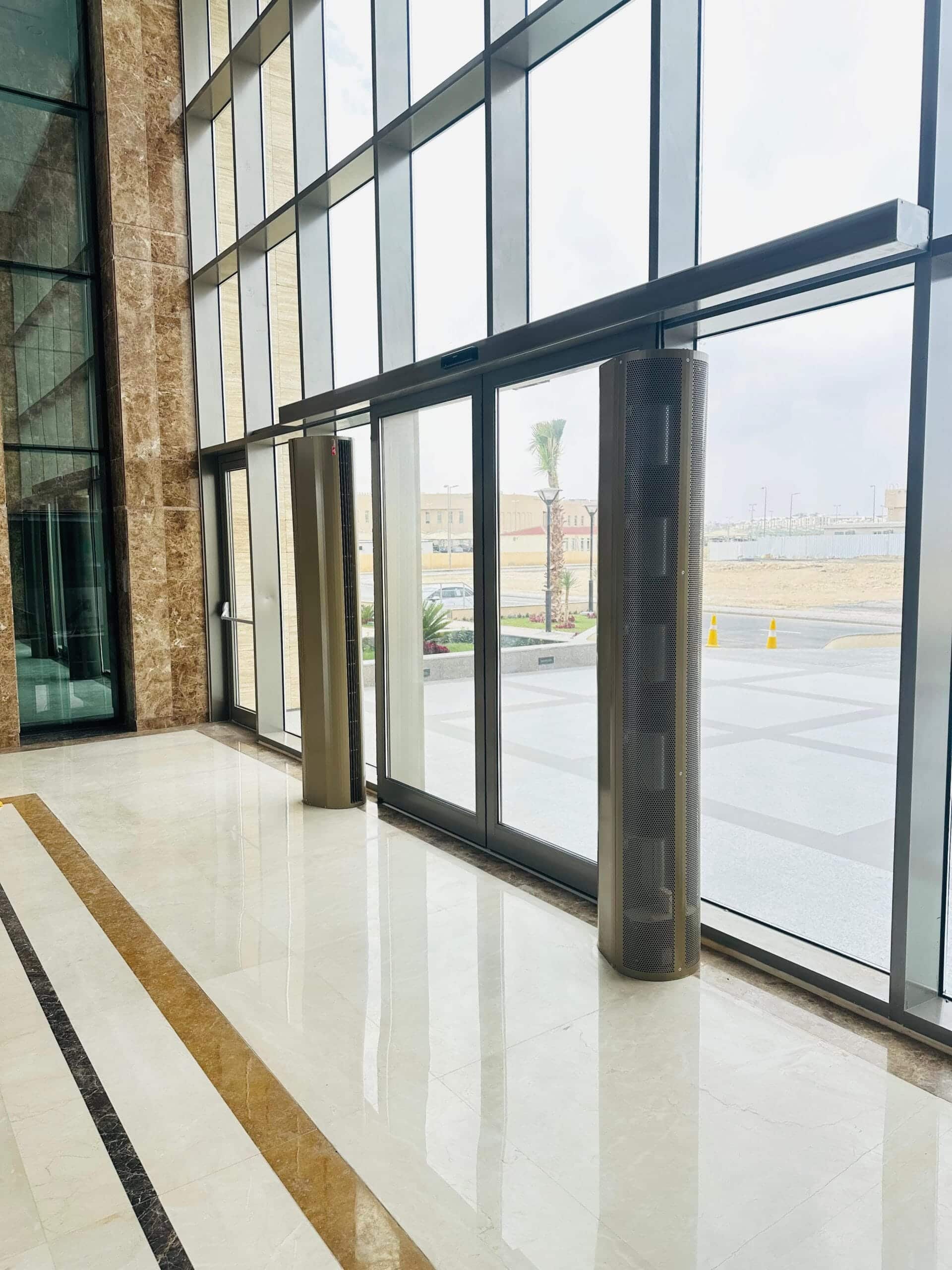

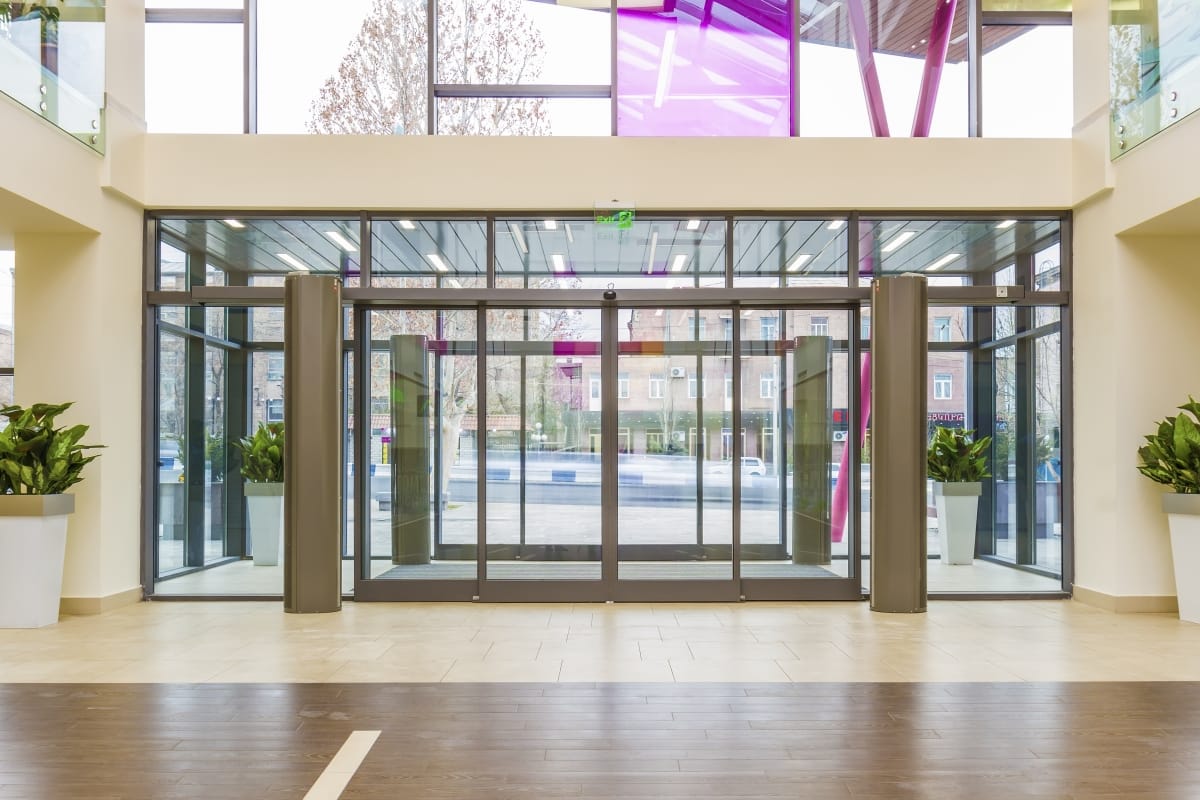

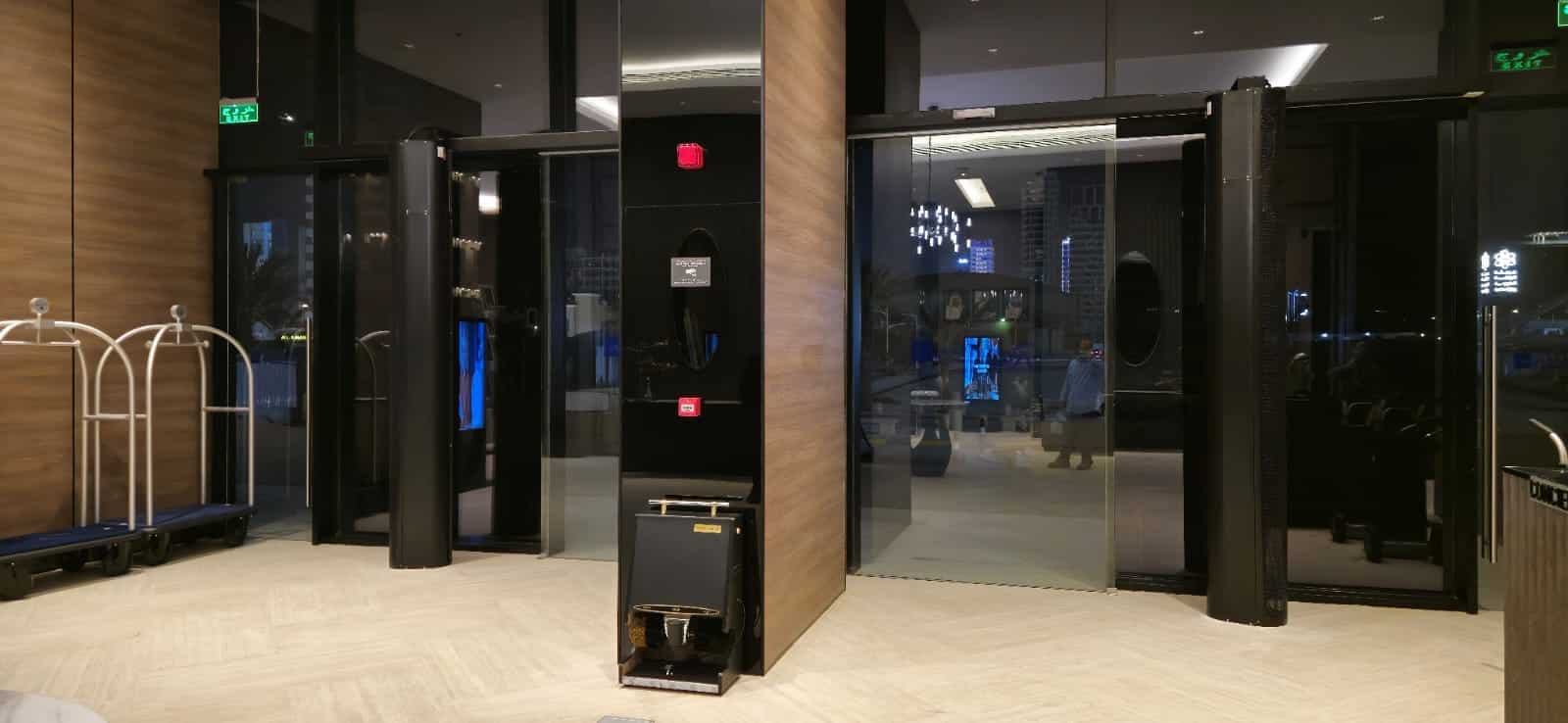

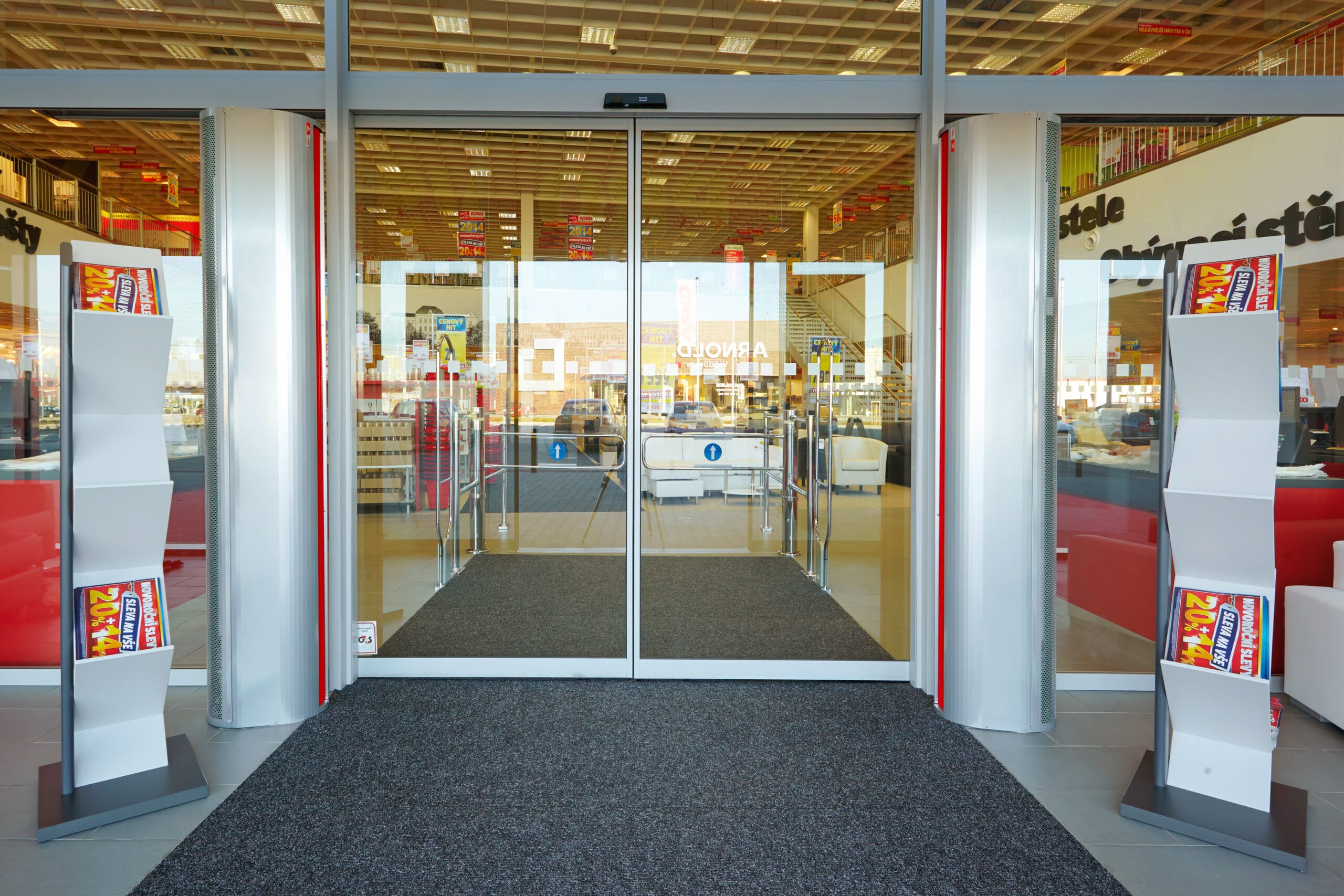

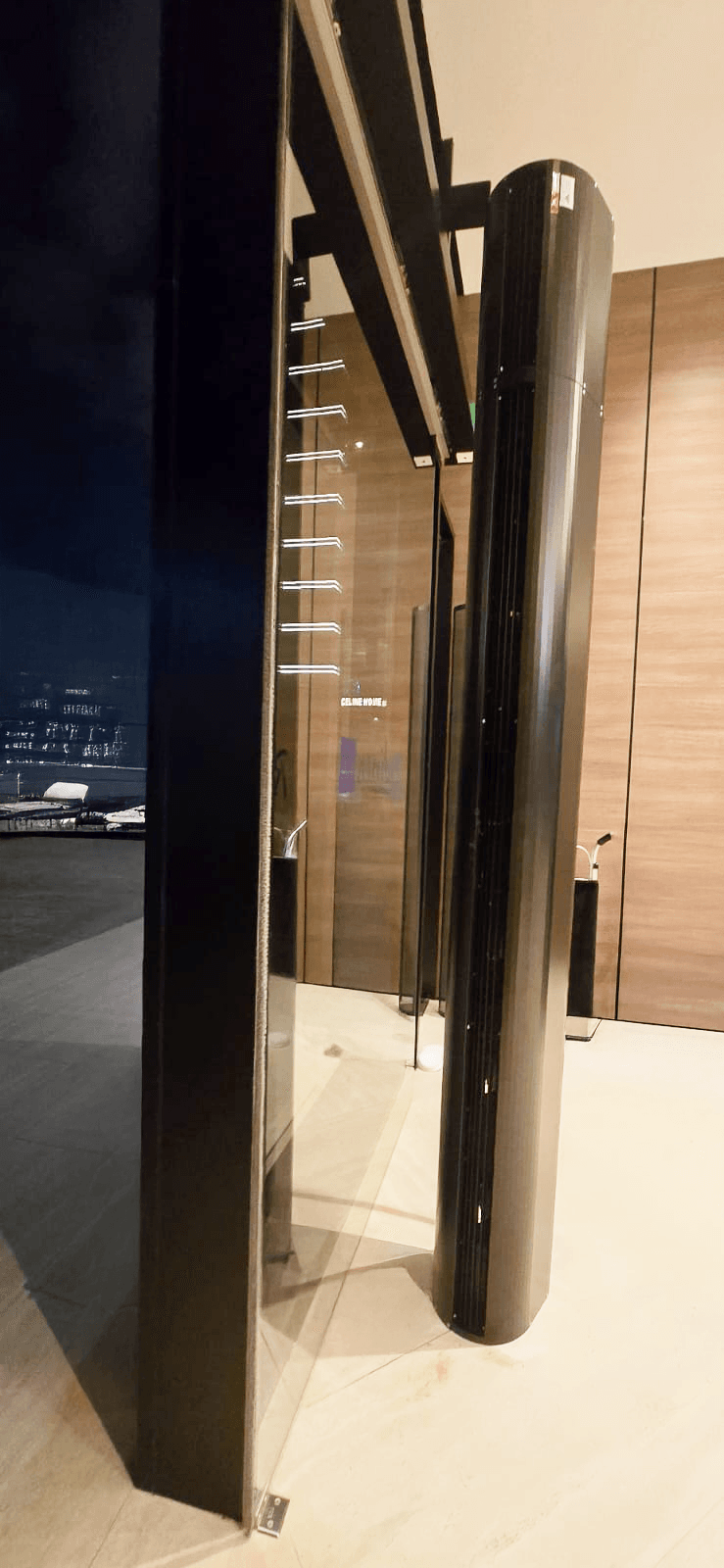

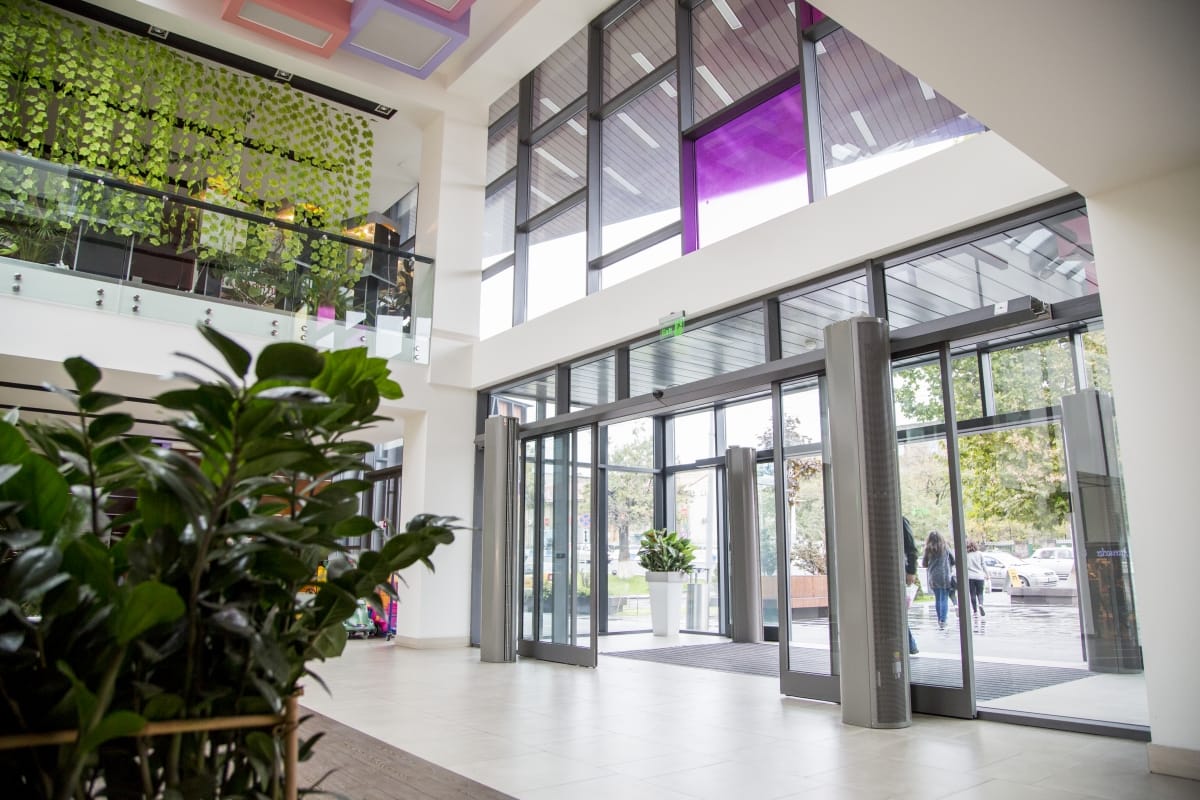

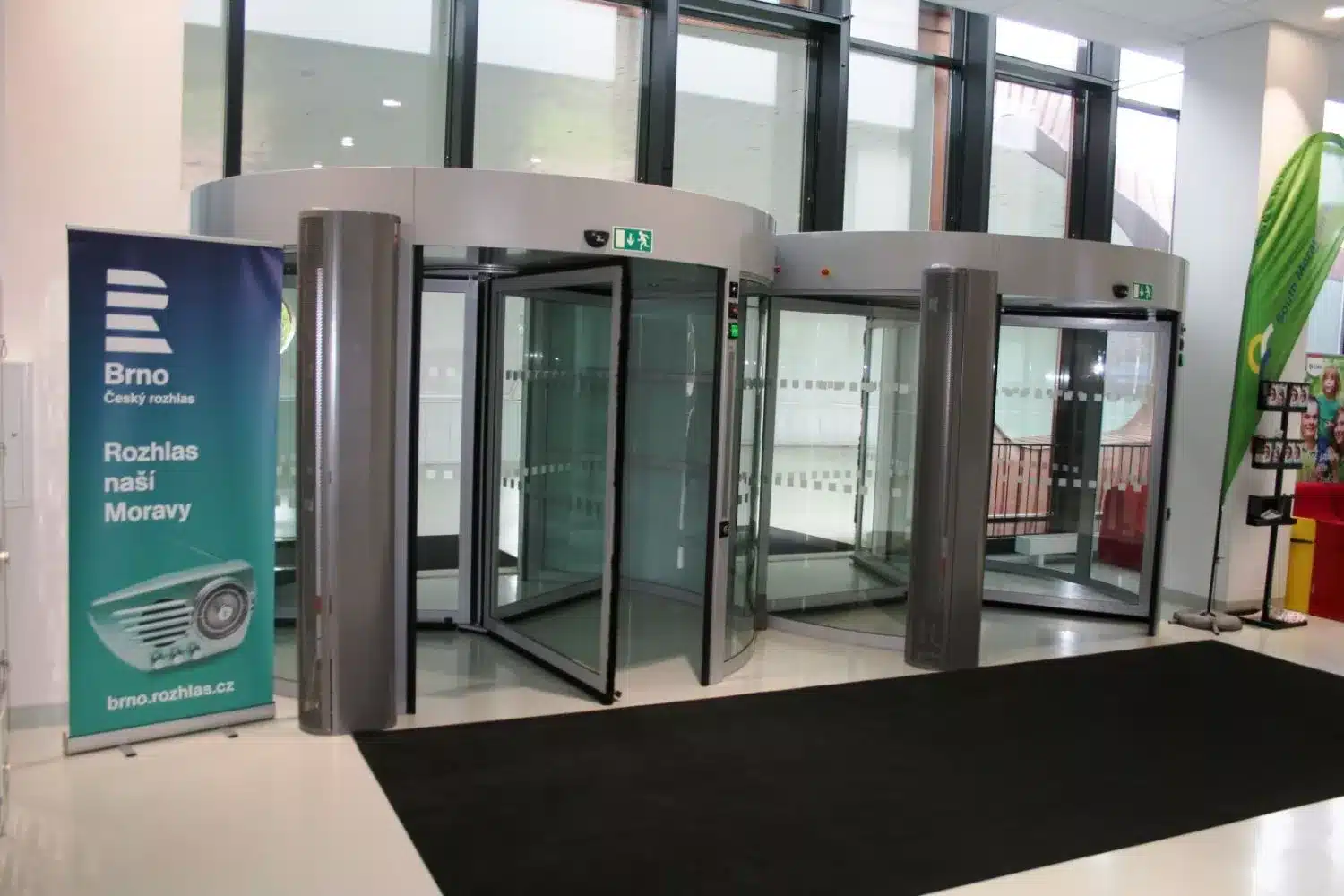

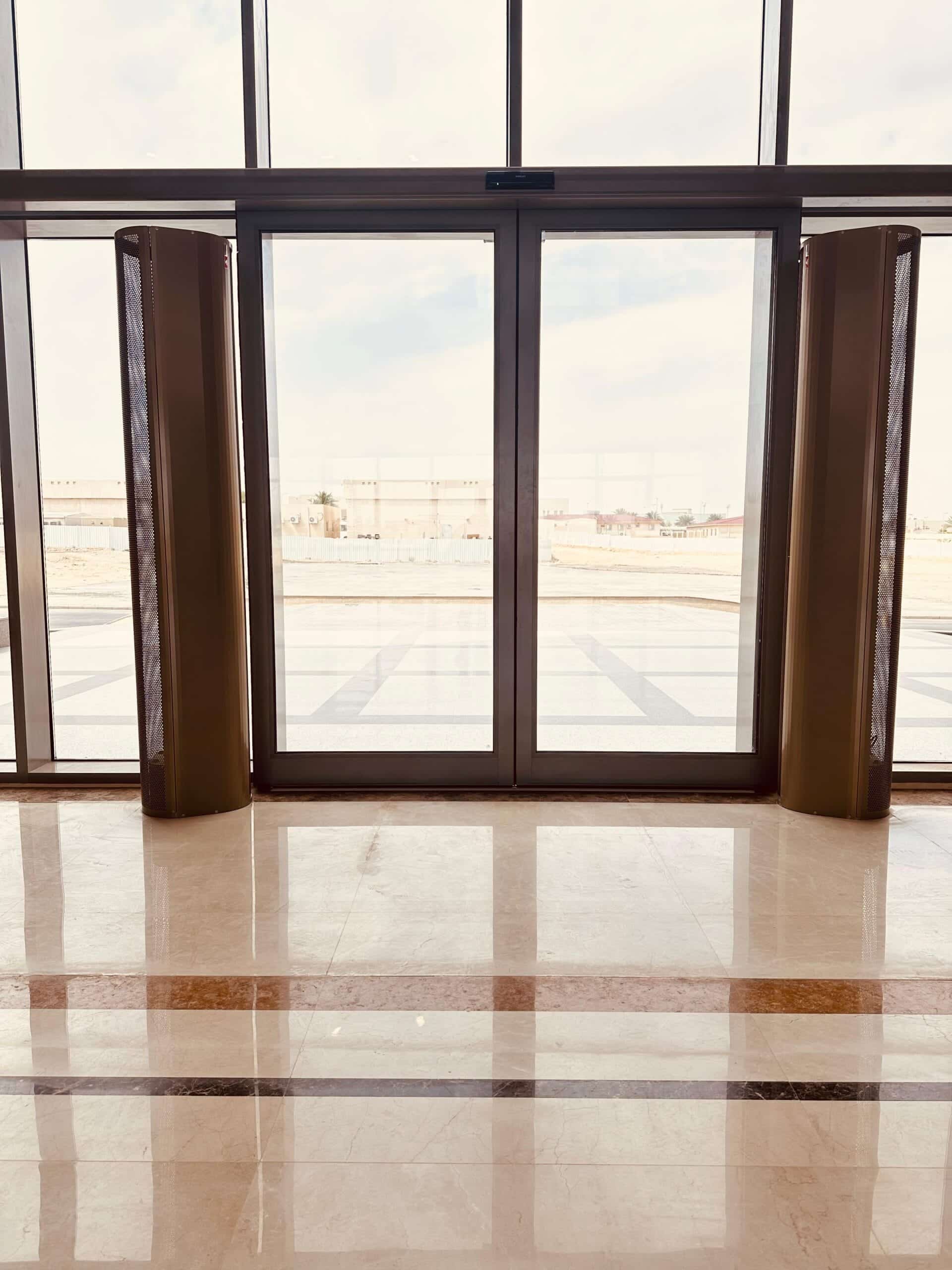

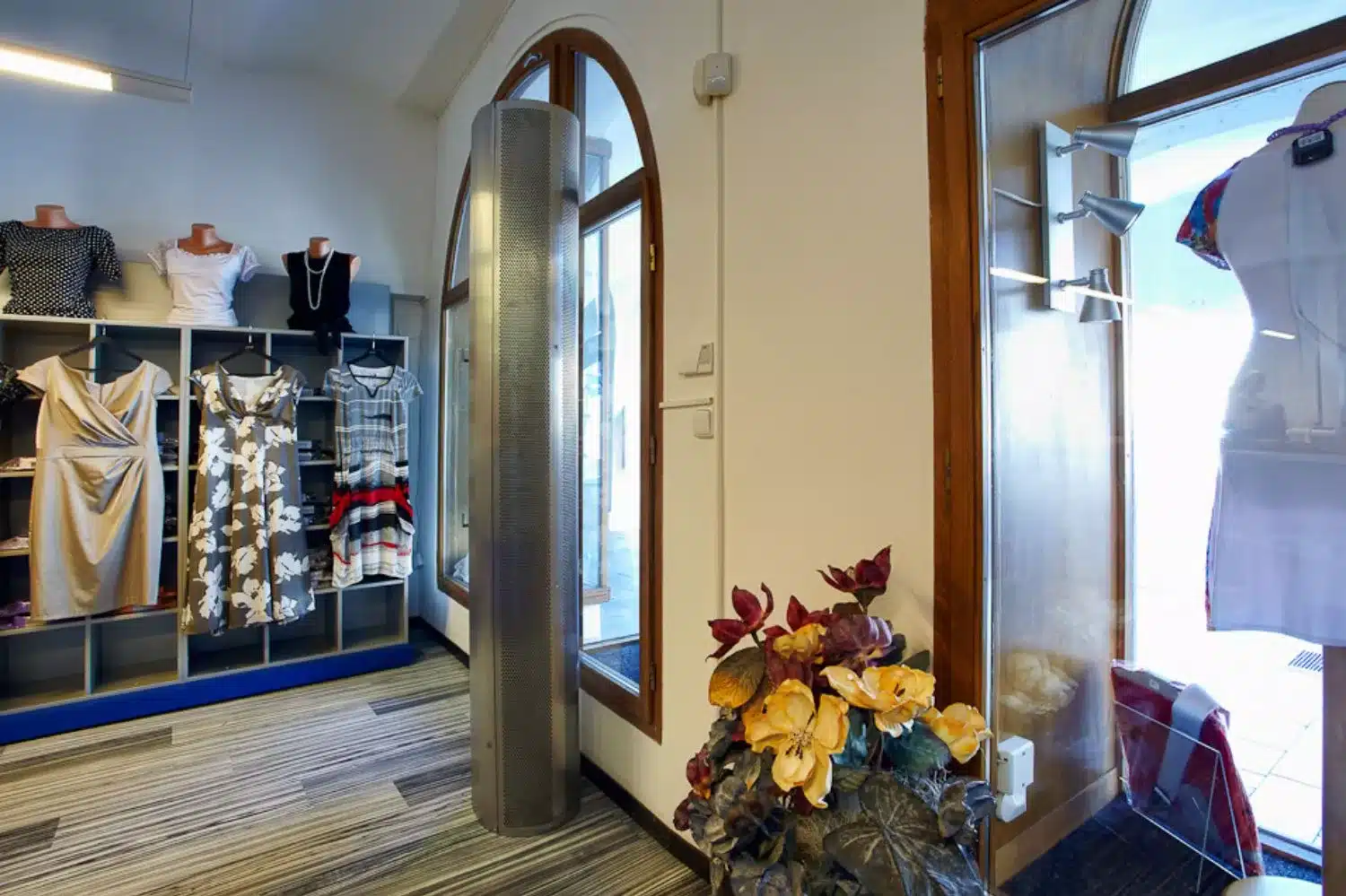

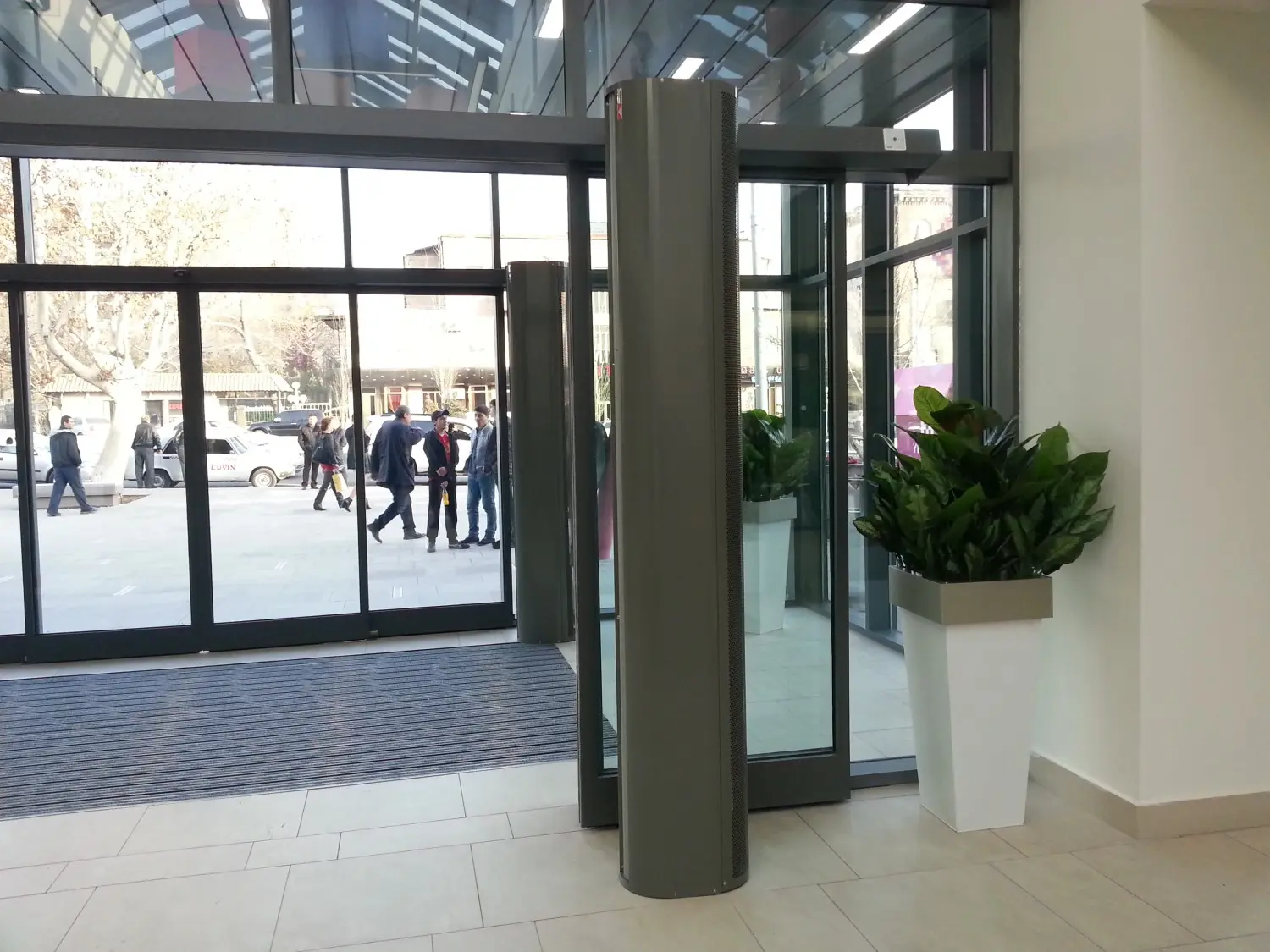

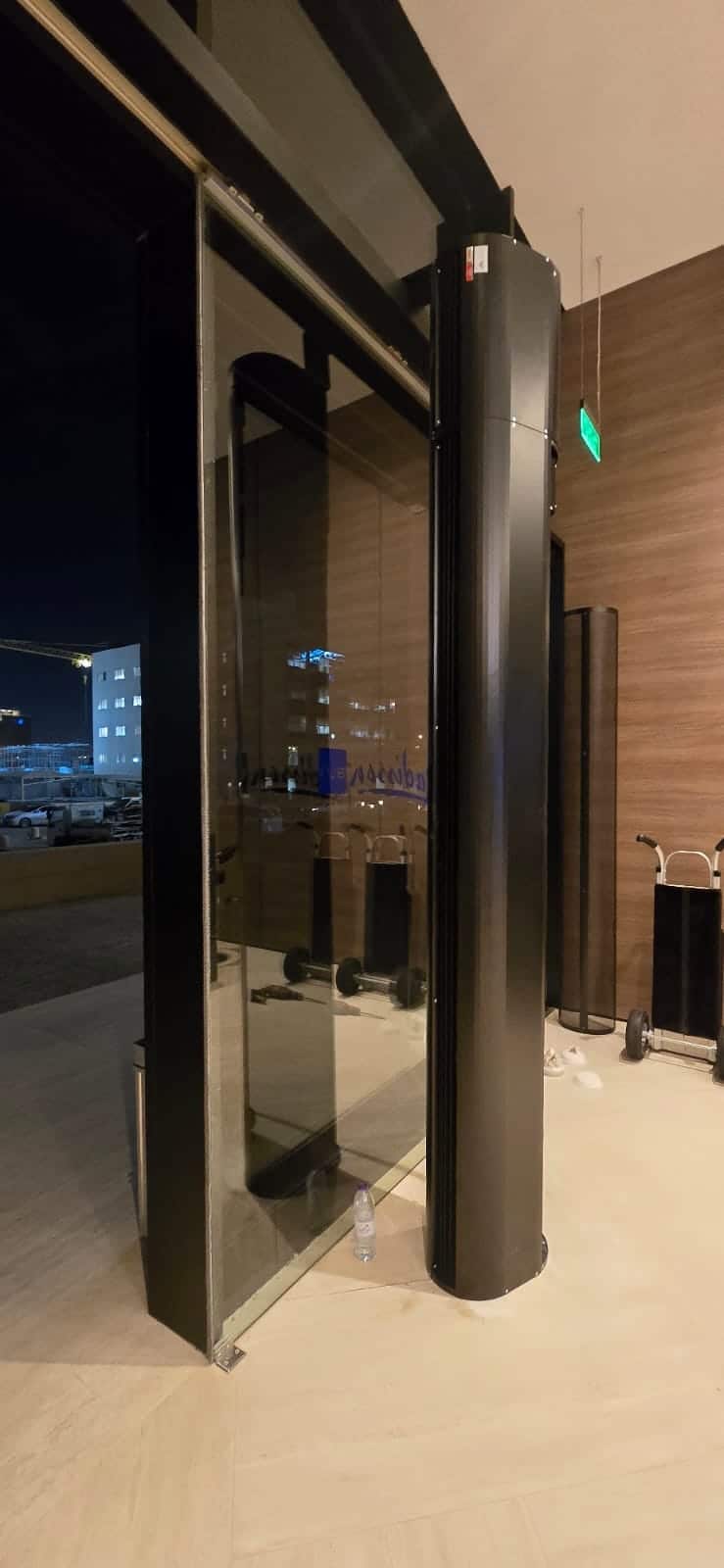

Vertical Installation
Flexible vertical mounting saves space and allows seamless integration into stylish entrances.
Technical Specifications
Available Lengths
2.20 m and 2.50 m.
Airflow Range
Tubex: 3,480 - 4,280 m³/h
Heating Capacity (Max)
Water (80/60°C): Up to 57.4 kW | Electric: Up to 25 kW
Protection Class
IP20 (for indoor use).
Sound Level (EC Fans)
51 - 64 dB(A) at 3m distance (varies by model).
Electrical Supply (Fans)
230V for standard AC fans; EC fans for higher efficiency.
Installation & Control
Core Unit Package
Design air curtain unit. (Controller, accessories sold separately).
Vertical Floor Mounting
Designed for vertical installation only, using integrated anchor plate and plastic anchors/screws.
Advanced Control Systems
Compatible with Ditronic Touch (full-featured) or Econ controllers for heating, fan speed, scheduling, and BMS integration.
Optional Accessories
Flexible connection pipes (PPH), door contacts, room thermostats, spare filters, control valves.
Use Cases
- Luxury hotels and reception halls
- Luxury stores and showrooms
- Corporate offices and banks
- Museums and exhibition halls
- Premium supermarket markets
Product brochure
User Manual
