Variomat Pump-Controlled Pressurization Systems

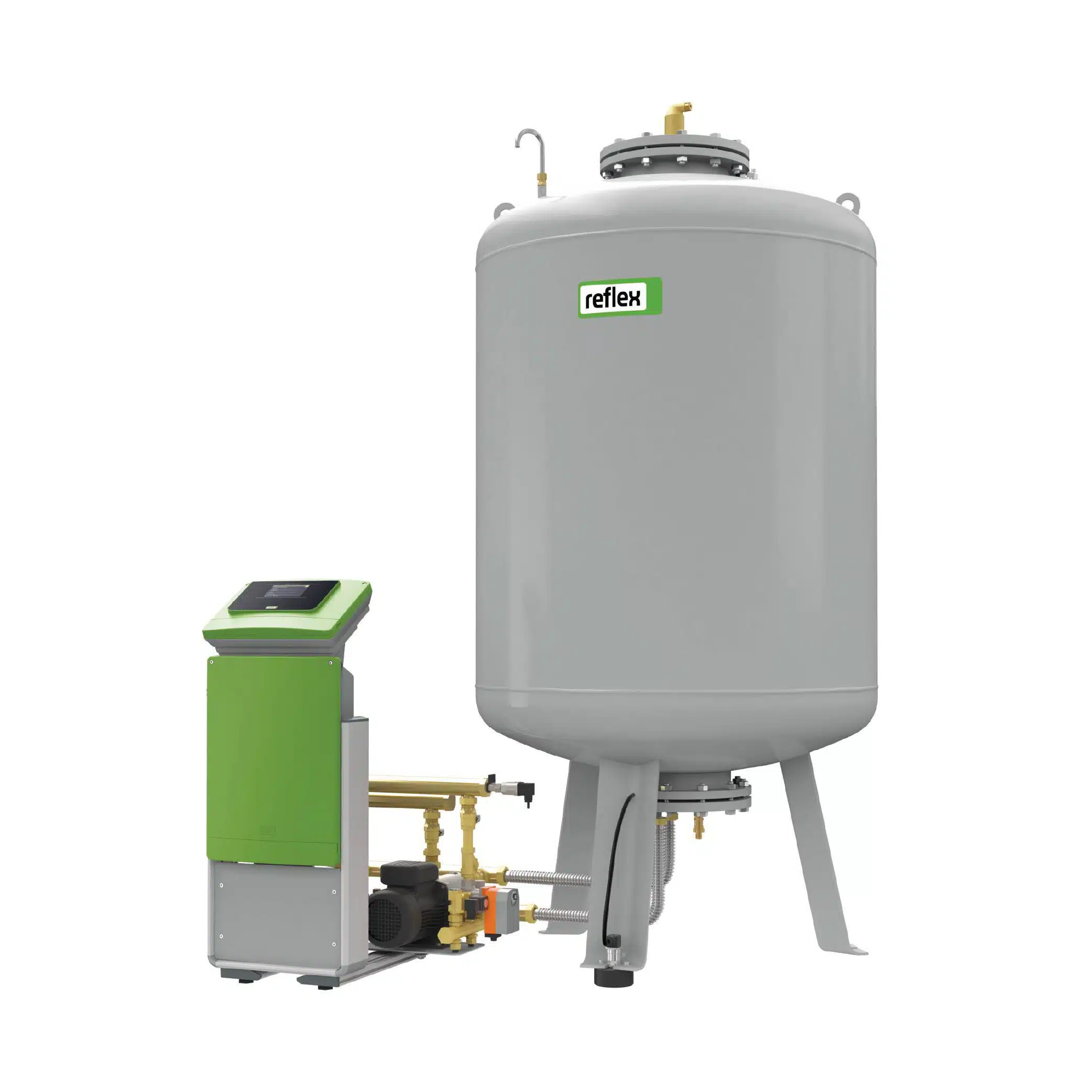

Variomat pump-controlled pressurization systems: Control Unit VS + Vessel VG/VF. 200-5000L capacity, stainless steel pumps, patented hydraulic compensation, advanced degassing for large HVAC systems.

Product Description

Key Features & Benefits

Pump-Controlled Precision
Stainless steel circulation pump with ±0.2 bar accuracy
Patented Hydraulic Compensation
Motorized ball valves with automatic hydraulic balance
Advanced Degassing System
Continuous, interval, and run-on degassing cycles
Large Capacity Range
200-5000L standard, up to 10,000L on request
Rotatable Hydraulic Plate
Variable system arrangement for flexible installation

Control Unit Technical Specifications

Electrical Supply

230V/50Hz standard operation

Pressure Accuracy

±0.2 bar regulation precision

Interface Options

Control Touch or Control Basic versions

Pump Configuration

Manages 1 or 2 stainless steel pumps

Temperature Rating

90°C maximum operating temperature

Hydraulic System Features

Stainless Steel Pump

Corrosion-resistant circulation pump

Motorized Ball Valves

Patented automatic hydraulic compensation

Three-Stage Degassing

Continuous, interval, and run-on modes

Dirt-Insensitive Valves

Rugged design with upstream dirt traps

Rotatable Base Plate

Flexible hydraulic arrangement options

System Components Overview

Component	Function	Capacity Range	Key Features

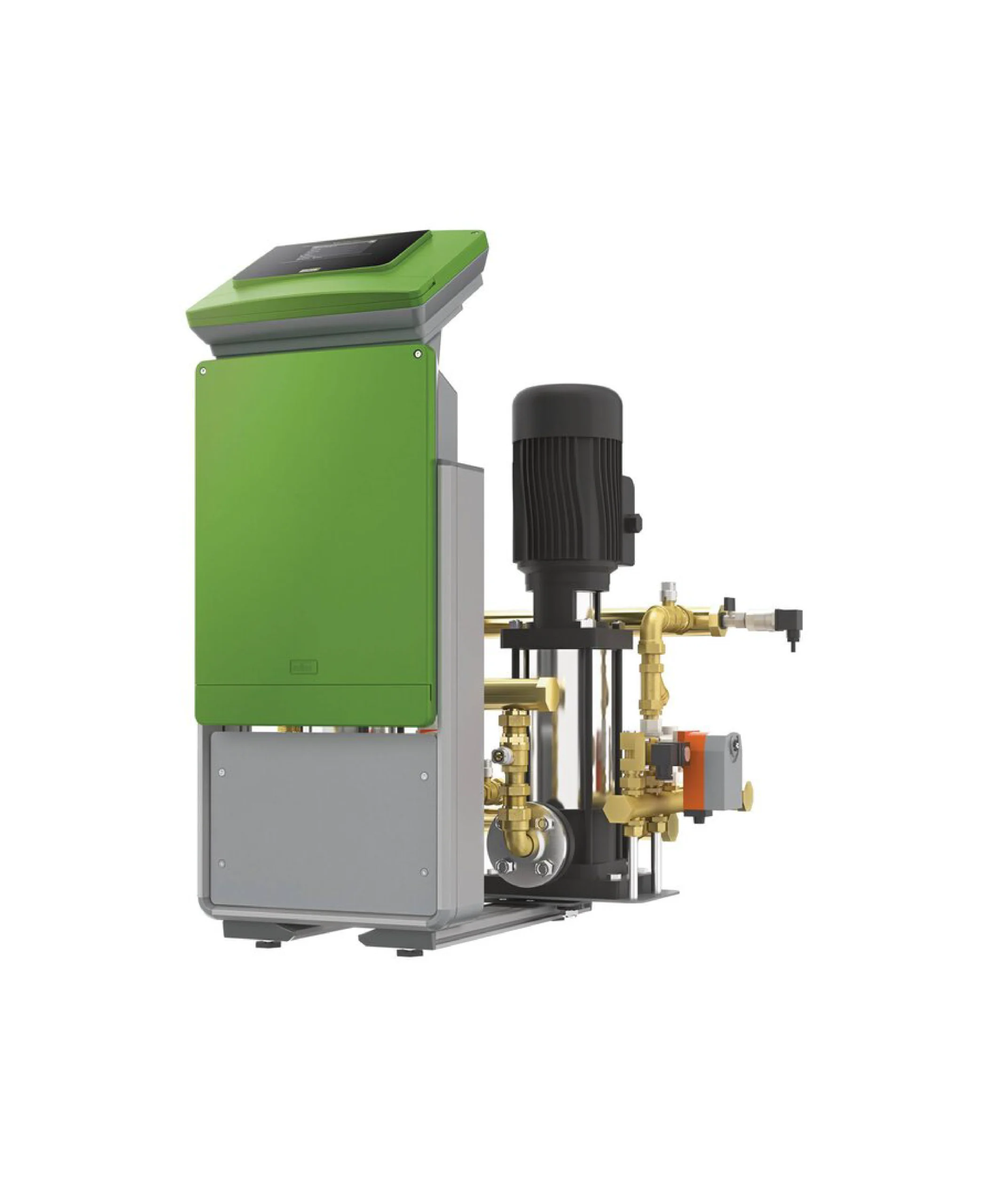

Control Unit VS	Hydraulic control & interface	N/A	Control Basic/Touch, 230V/50Hz, degassing control

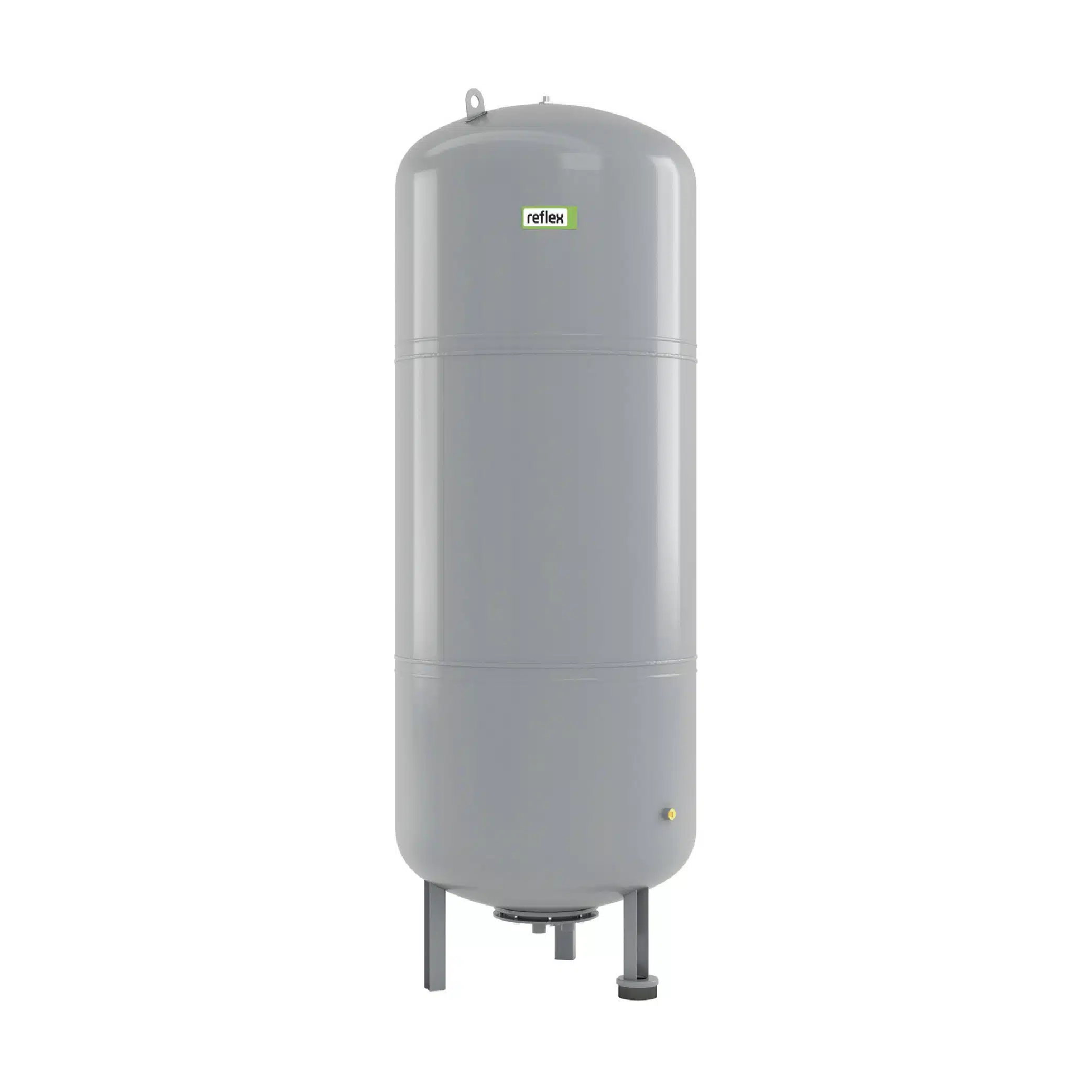

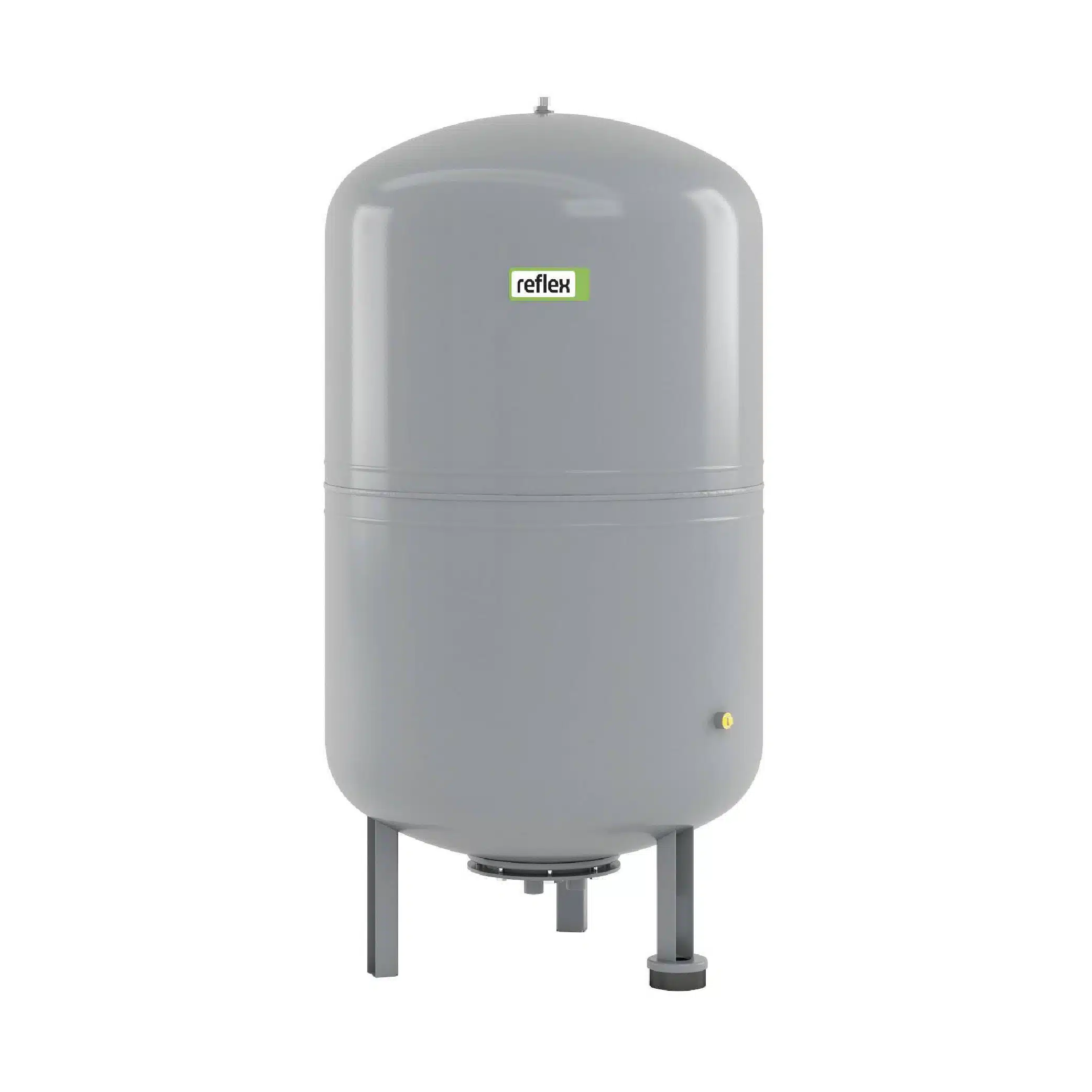

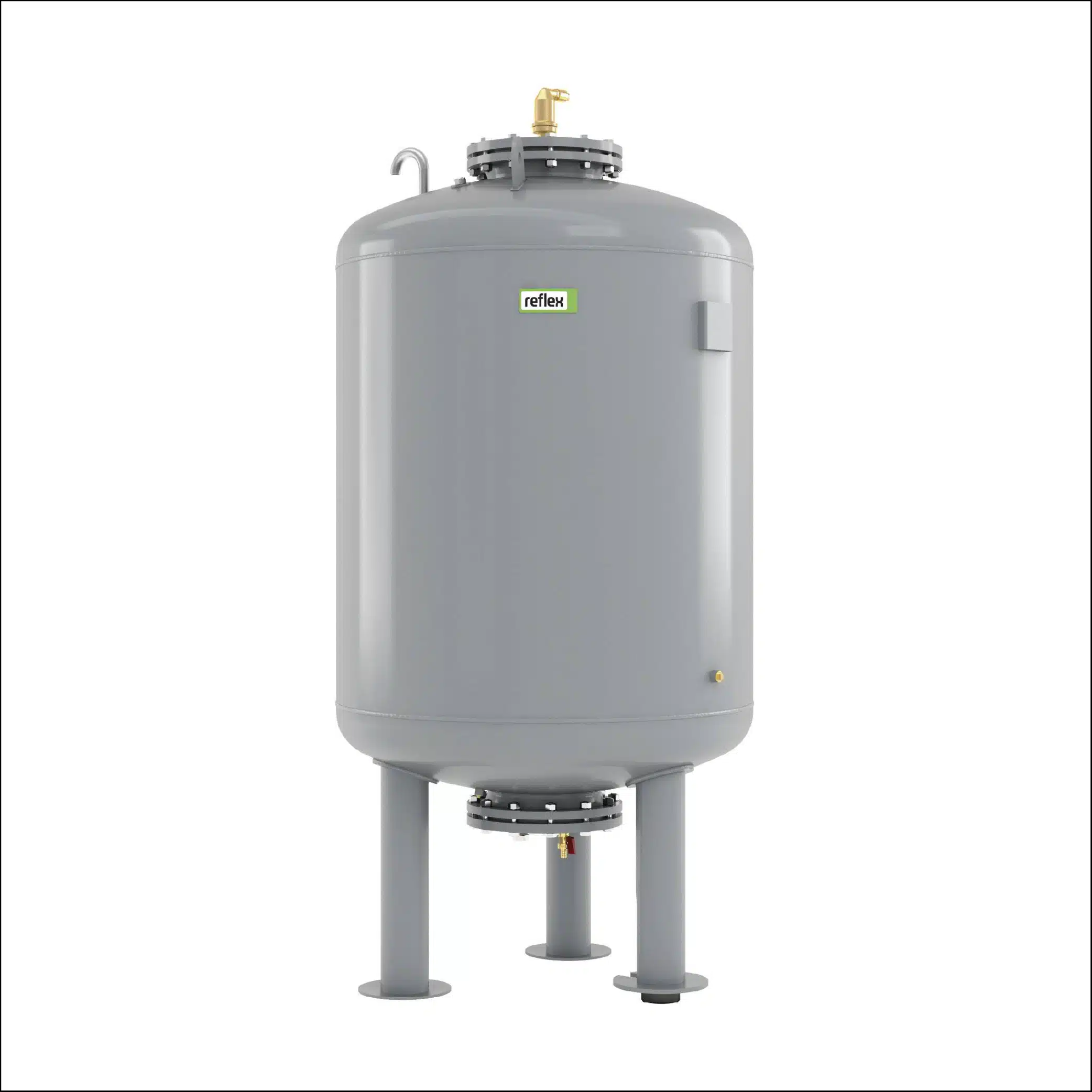

Primary Vessel VG	Main expansion vessel	200-1000+ liters	Replaceable diaphragm, level transducer, dipstick degassing

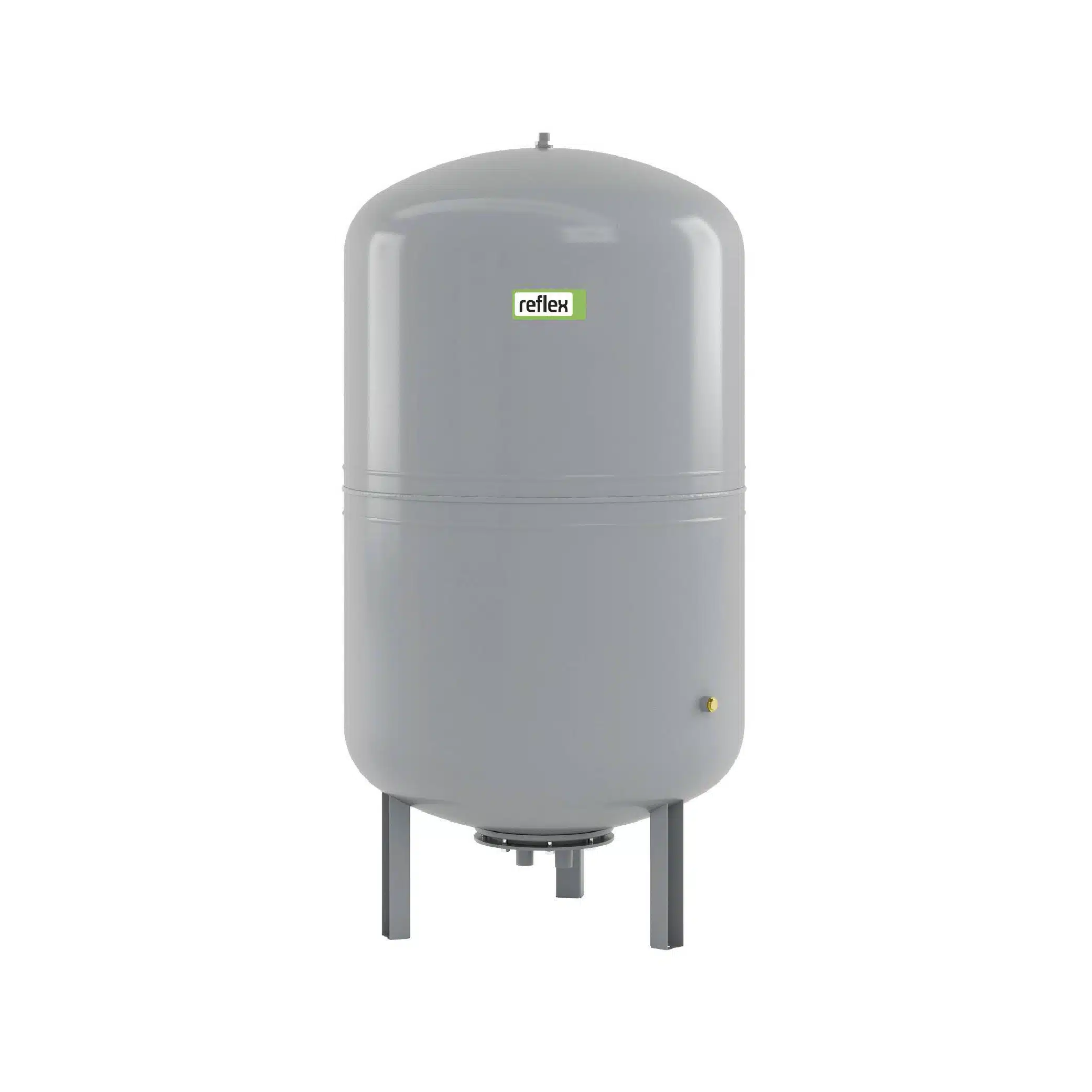

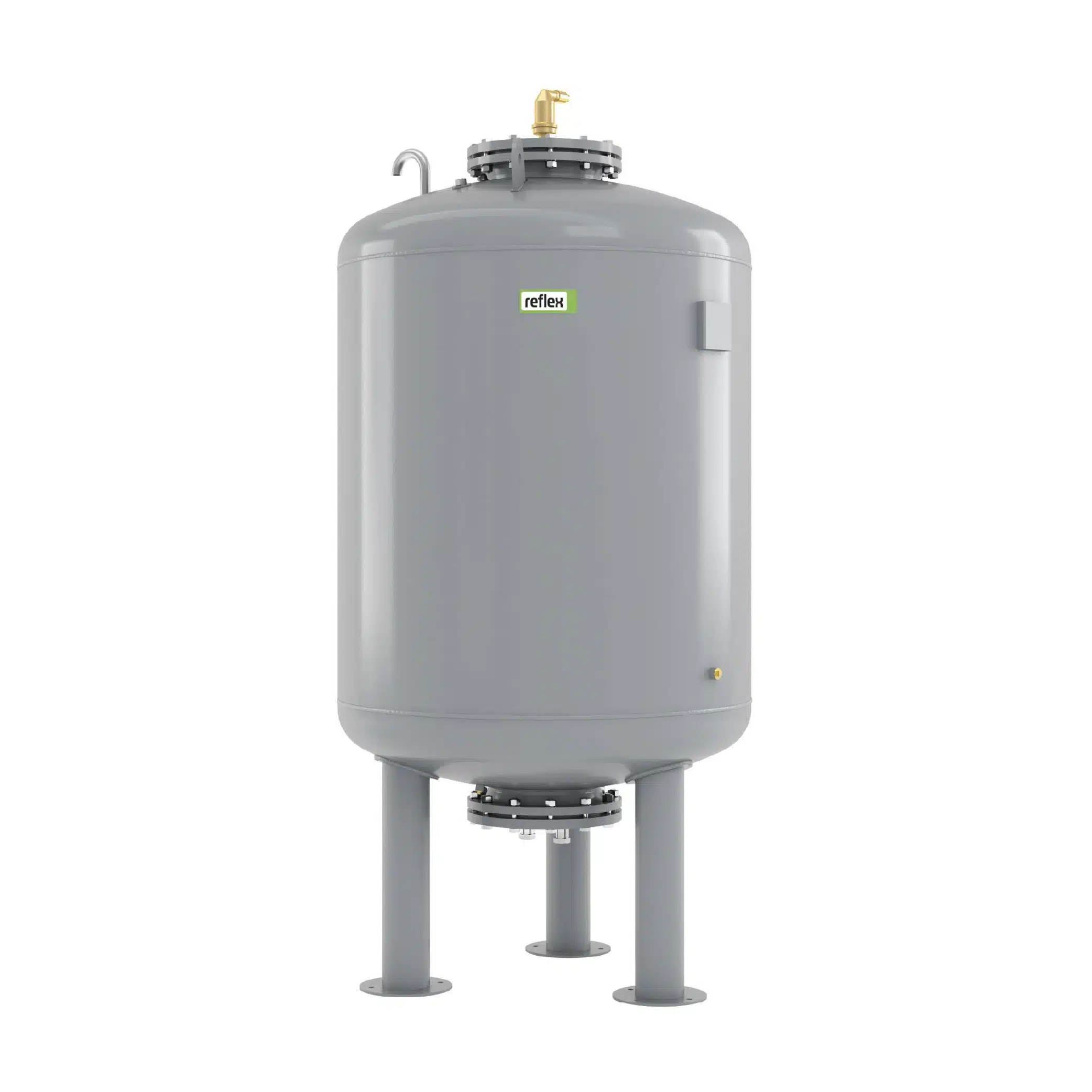

Secondary Vessel VF	Additional expansion	200-1000+ liters	Safety redundancy, plastic-coated, rupture detector
