VVPM Whirling Air Outflow Outlet with Fixed Blades

A terminal HVAC air distribution element with fixed, pre-set blades that create a consistent swirling air pattern. It is designed for efficient air mixing and temperature equalization in ventilated or cooled spaces, offering a reliable, maintenance-free solution.

Product Description

Key Features & Benefits

Fixed Blade Design
Pre-set blades ensure a consistent, reliable swirling air pattern for uniform mixing.
Maintenance-Free
No moving parts to adjust. Simple, durable construction for long-term operation.
Efficient Air Mixing
Swirling discharge mixes thoroughly with room air to reduce temperature differences.
For Cooling Systems
Primarily designed for optimal performance in air conditioning and cooling applications.
Simple Installation
Front panel attaches to the plenum box with a central screw for easy mounting.
Robust Construction
Galvanized steel plenum box and coated steel front panel for durability.

Technical Specifications

Sizes

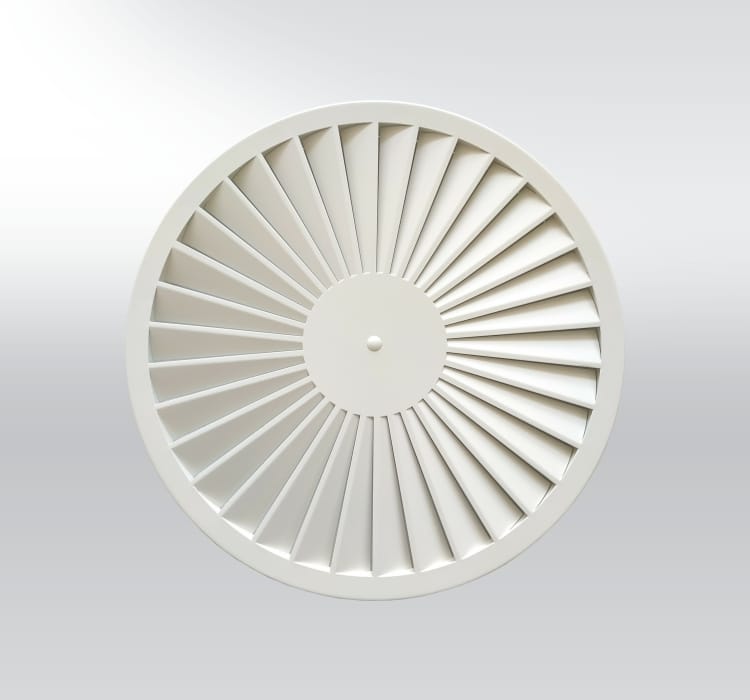

300, 400, 500, 600, 625 mm (AxB). Square or round panels.

Airflow

120 to 600 m³/h capacity.

Materials

Coated steel panel (RAL 9010), galvanized steel box, fixed blades.

Connections

Horizontal/Vertical to Unibox (with round collar). Optional regulating flap.

Operating Range

-20°C to +70°C. For indoor, non-aggressive environments.

Installation Height

Optimized for room heights from 2.6 m to 4.0 m.

Installation & Control

Mounting

Ceiling flush or suspended mounting.

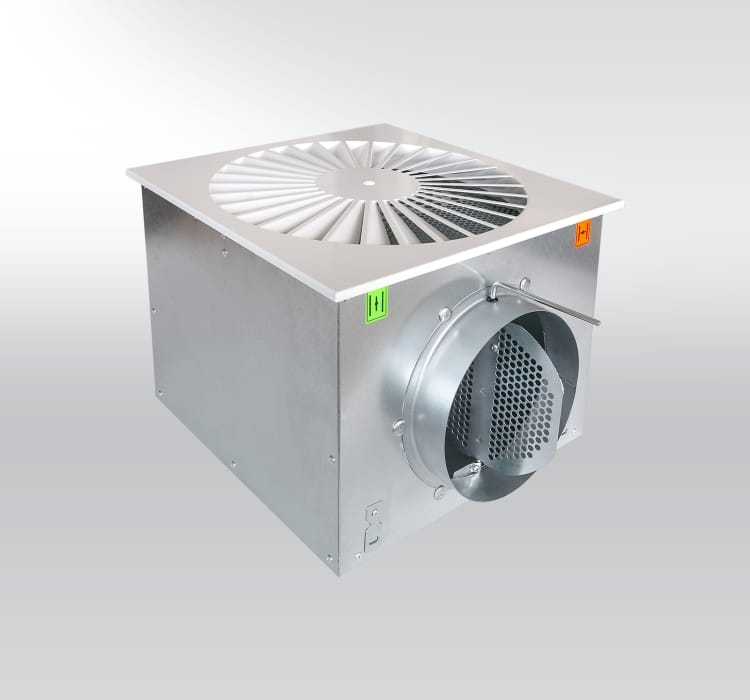

Box Assembly

Front panel secures to plenum box with a central screw.

Plenum Box

Includes an air disperse element inside for optimal inlet distribution.

Air Direction

Airflow pattern is fixed by blade design. No on-site adjustment needed.

System Suitability

For systems with clean air (no abrasive or adhesive particles).
