Reflex NGV Expansion Vessels

Reflex NGV expansion vessels specialize in oxygen-rich water systems like heat pumps and cooling circuits. Corrosion-resistant with stainless connections, 8-140L capacities, VDI 6044 compliant.

Product Description

Key Features & Benefits

Oxygen-Rich Water Specialist
Specifically designed for systems with high oxygen content
Heat Pump Optimized
Ideal for heat pump and cooling water systems
Corrosion-Resistant Design
Intelligent construction prevents rust in oxygenated systems
Oxygen Diffusion Resistance
Complies with VDI/BTGA 6044 for cooling systems
Safe Oxygenated Operation
Ensures reliability in challenging water conditions
High-Quality Butyl Bladder
Superior material for oxygen-rich environments

Technical Specifications

Capacity Range

8 to 140 liters (9 models available)

Pressure Rating

Maximum 6 bar operating pressure

Connection Type

Stainless steel threaded connections (G ¾" to G 1")

Construction

Welded design with durable epoxy coating

Diaphragm Material

High-quality butyl rubber bladder

Temperature Range

-10°C to +120°C system temperature

Installation & Configuration

Welded Construction

Permanent, leak-proof welded design

Vertical Installation

Models from 35L designed for upright mounting

Stainless Steel Threads

Corrosion-resistant connections for longevity

Single Connection Design

Simplified installation with one water connection

Standard G Threads

Compatible with standard piping systems

Use Cases

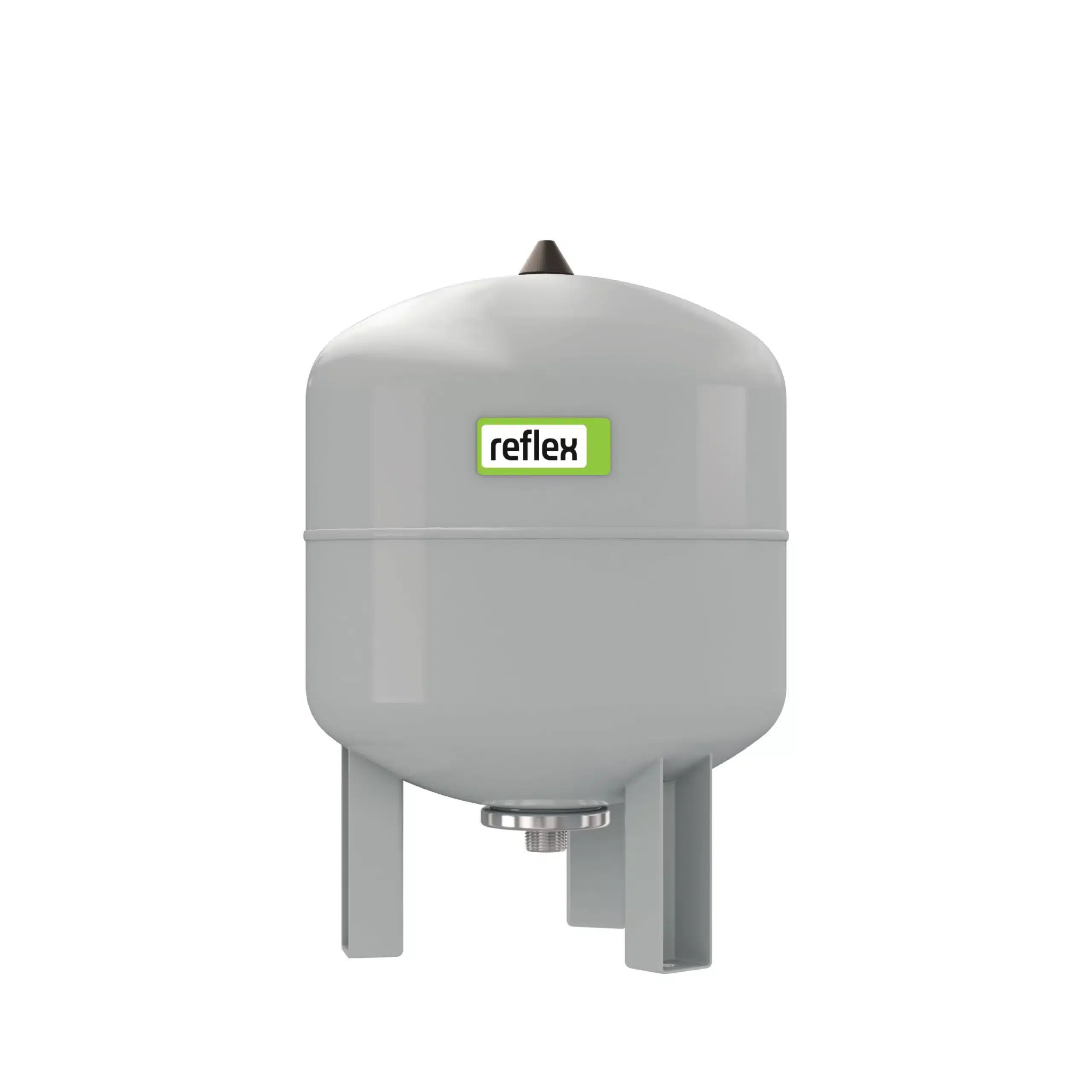

Reflex_NGV_35-01

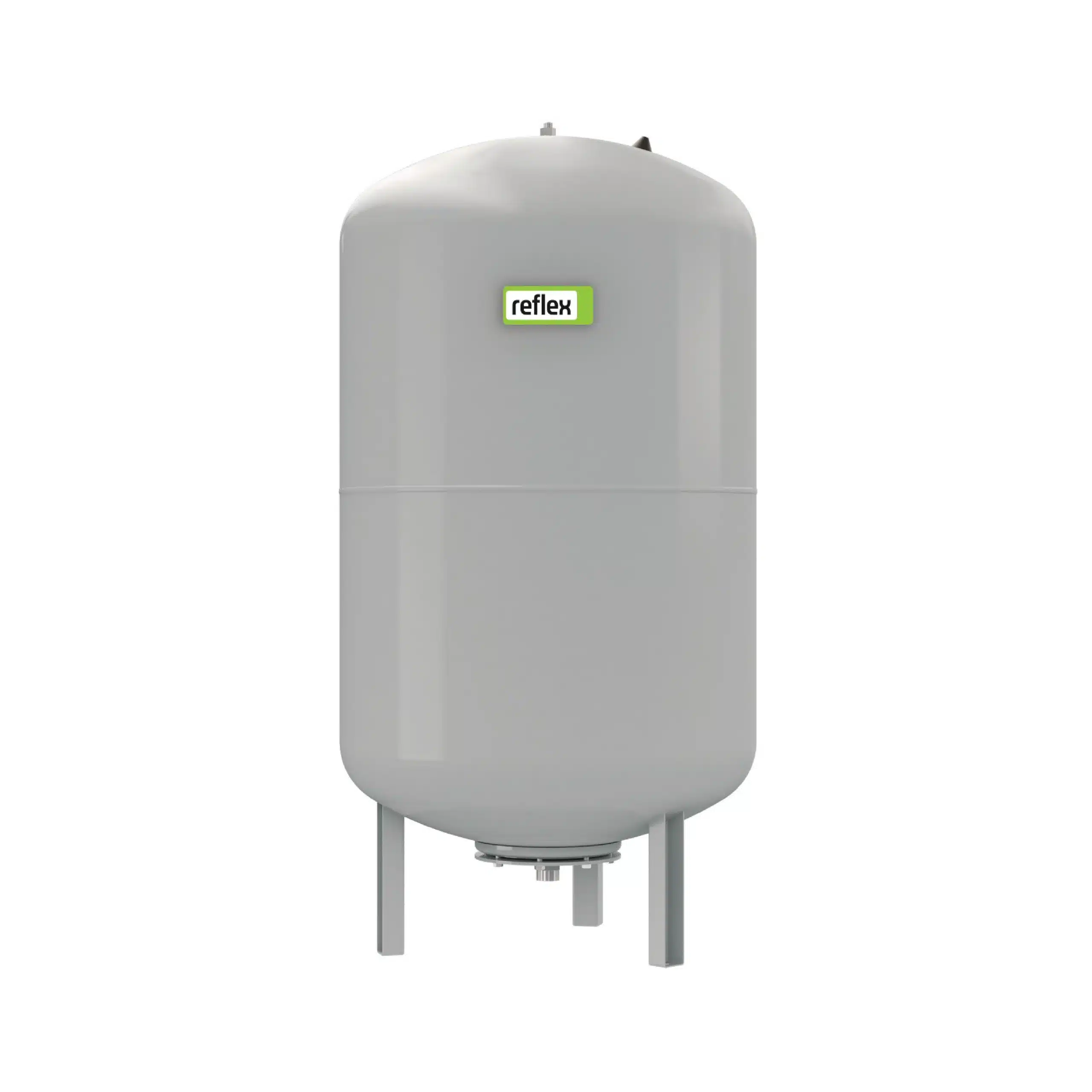

Reflex_NGV_80-140-01

Reflex_NGV_8-25-01
